Introduction

Thank you for deciding to purchase a be quiet! product. The following instructions will guide you through the installation process. If you do encounter installation problems, please don't hesitate to contact our customer services by mailing service@bequiet.com. Please note that be quiet! cannot accept liability for damage caused by compatibility problems.

SCOPE OF DELIVERY

	Part name	Quantity

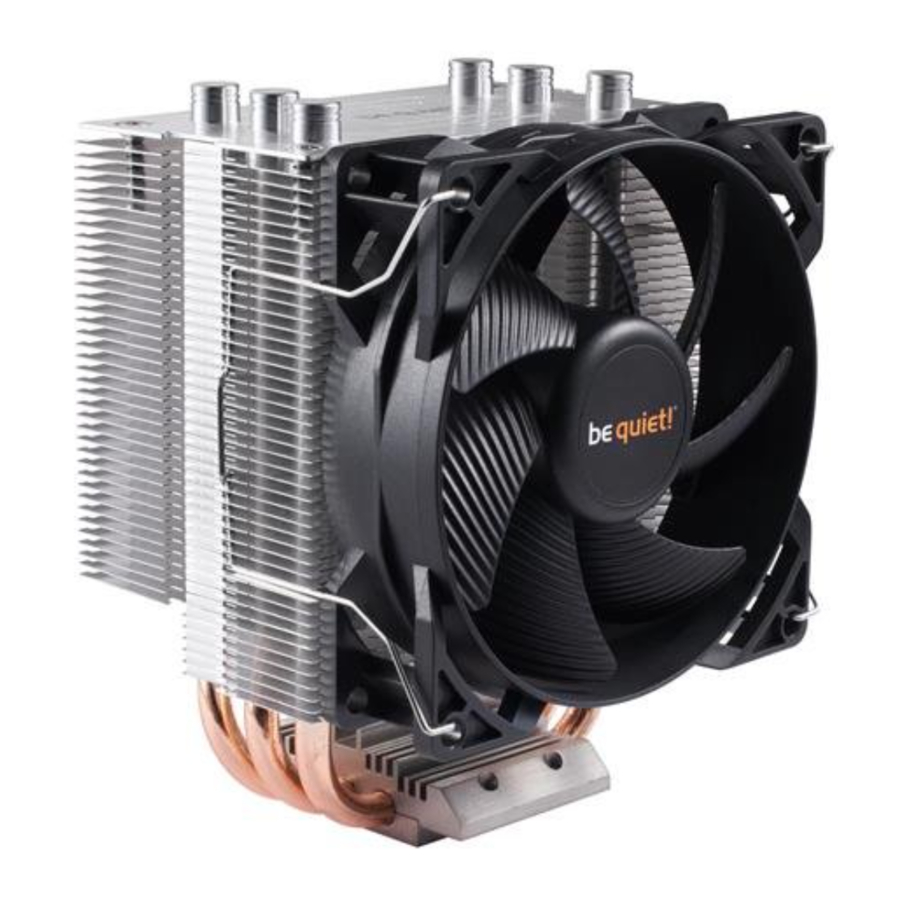

	Pure Rock Slim CPU cooler be	1
	92mm fan	1
	AMD mounting clamp	1
	Fan clips	2

Intel LGA 1150 / 1151 / 1155 / 1156

The following parts are needed for this:
1x Pure Rock Slim CPU cooler (1), 1x 92mm fan (2), 2x fan clips (4)

Mounting the CPU cooler
The protective covering on the underneath of the cooler must be removed prior to installation against the CPU.
Place the cooler unit (1) onto the CPU.
To install the be quiet! Pure Rock Slim press the push-pins into the matching sockets.
To remove the cooler unit (1), first rotate the Intel push-pins counter-clockwise and then lift them up.
Fasten the 92mm fan (2) onto the cooler unit (1) using the fan clips (4). Connect the fan to the motherboard's PWM signal.
To remove the cooler unit (2), first rotate the Intel push-pins counterclockwise and then lift them up.

AMD AM2(+) / AM3(+) / AM4 / FM1 / FM2(+)

The following parts are needed for this:
1x Pure Rock Slim CPU cooler (1), 1x 92mm fan (2), 1x AMD mounting clamp (3), 2x fan clips (4)

Mounting the CPU cooler
To mount the CPU cooler unit (1) on an AMD motherboard, first remove the preassembled Intel push-pin mounting by unscrewing the recessed M3x3 screws in the underside.
The protective covering on the underneath of the cooler must be removed prior to installation against the CPU.
Lead the AMD mounting clamp (3) through the heat sink and place it over the center of the locking guide.
Then clip the AMD mounting clamp (3) onto the AMD retention module and rotate the lever.
Fasten the 92mm fan (2) onto the cooler unit (1) using fan clips (4). Connect the fan to the motherboard's PWM signal.
When dismantling the fan (2), push the notches of the fan clips (4) away from the fan.
