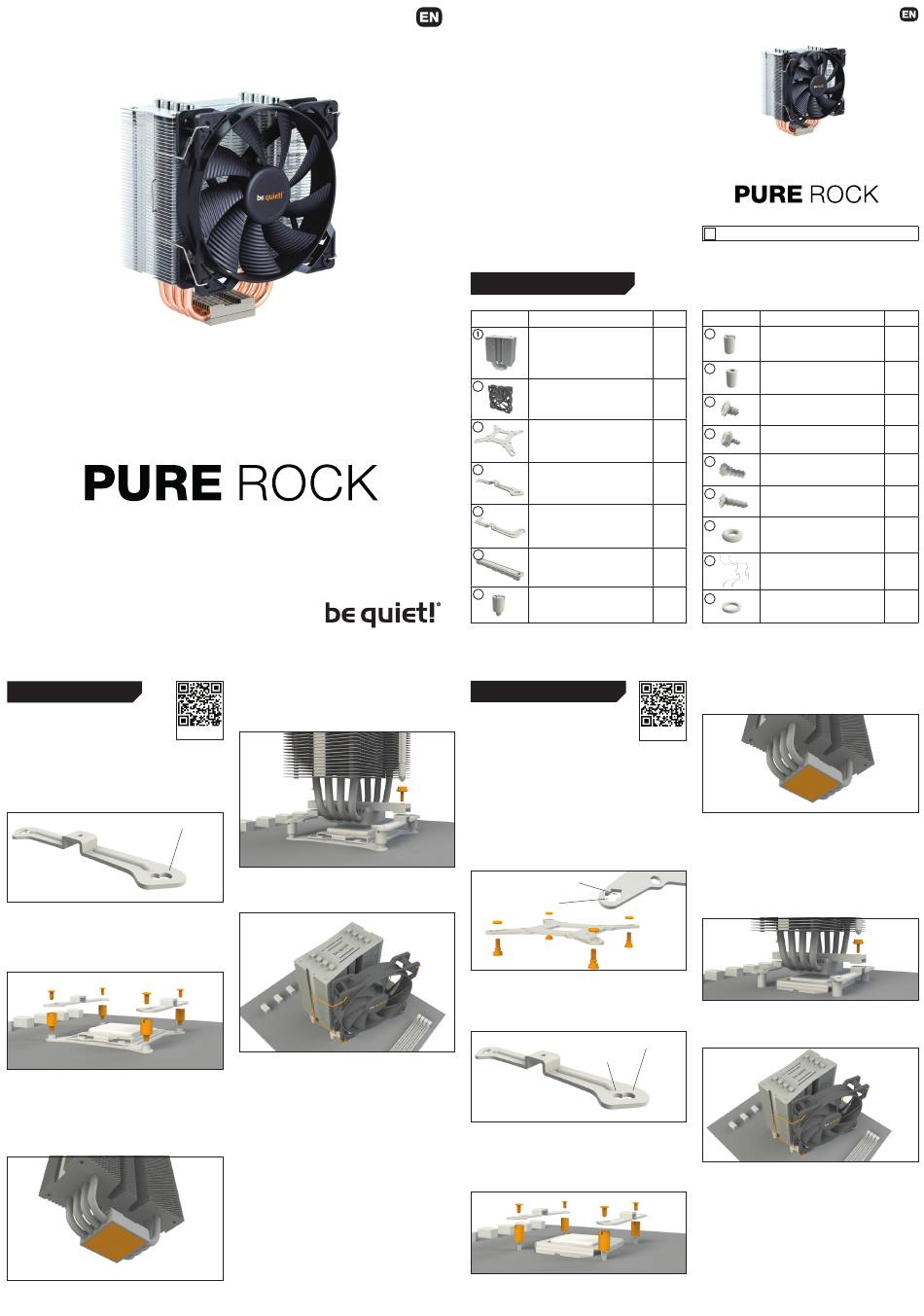

BE QUIET! Pure Rock Manual

Intel LGA 2011(-3) square ILM / LGA 2066
General
We recommend preparatory mounting of the
Installation video
cooler outside the PC case for subsequent
installation.
The following parts are needed for this:
1x Pure Rock CPU cooler (1), 1x 120mm fan (2), 2x Intel mounting
brackets (4), 1x cooler mounting bridge (6), 4x Intel spacer nuts
(7), 4x mounting bracket fastening screws (10), 2x Intel/AMD
mounting bridge fastening screws (11), 2x fan clips (15)
2011(-3) square ILM, 2066
Assembly of the cooler mounting frame
First screw the Intel spacer nuts (7) onto the threads of the
socket frame. Place the Intel mounting brackets (4) over the
Intel spacer nuts and screw these tight with the mounting
bracket fastening screws (10). You can use any cross-tip
screwdriver for this.
Mounting the CPU cooler
The protective covering on the underneath of the cooler must
be removed prior to installation against the CPU.
Caution: The thermal paste is not suitable for human
consumption. If swallowed, drink lots of water and urgently
seek medical attention. Keep it out of the reach of children.
Avoid contact with skin and eyes.
Position the cooler mounting bridge (6) centrally on the cooler
(1). Next place the cooler unit onto the CPU. Insert the Intel/
AMD mounting bridge fastening screws (11) from above into
the cooler mounting bridge and then screw these alternately
tight.
Fasten the 120mm fan (2) onto the cooler unit (1) using fan
clips (15). Connect the fan to the motherboard's PWM
signal.
When dismantling the fan (2), push the notches of the fan
clips (15) away from the fan.
Introduction: Thank you for deciding to purchase a be quiet!
product. The following instructions will guide you through the
installation process. If you do encounter installation problems,
please don't hesitate to contact our customer services by
mailing service@bequiet.com. Please note that be quiet!
cannot accept liability for damage caused by compatibility
problems.
Warranty:
• 3-year manufacturer guarantee for consumers (original
purchase from authorized be quiet! dealers only)
• Guarantee work can only be processed with a copy
included of the purchase receipt from an authorized be
quiet! dealer
• Manipulation and structural changes of any kind, including
any damage caused by external mechanical force, will lead
• to a complete voiding of the guarantee
• Our General Warranty Conditions apply, which can be
viewed on bequiet.com
Listan GmbH & Co.KG . Biedenkamp 3a . 21509 Glinde
Germany
For further information contact us via e-mail:
service@bequiet.com
SCOPE OF DELIVERY
Part name

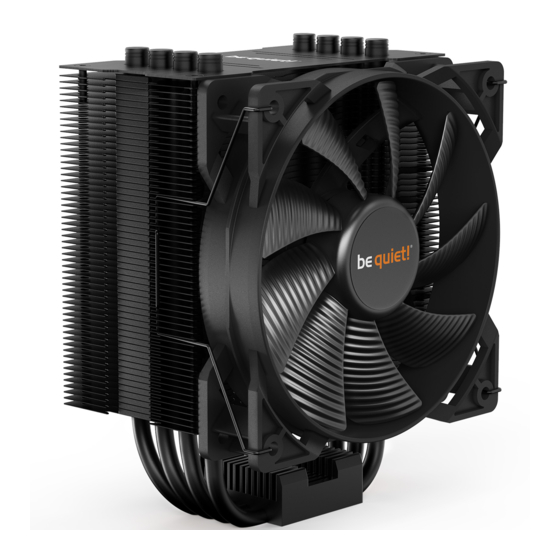

be quiet! Pure Rock CPU cooler
2
120mm fan
3
Intel backplate
4
Intel mounting brackets
5
Long AMD mounting brackets
6
Cooler mounting bridge
7
Intel spacer nuts
Intel LGA 1150 / 1151 / 1155 / 1156 / 1366
General
We recommend preparatory mounting of the
cooler outside the PC case for subsequent
Installation video
installation.
The following parts are needed for this:
1x Pure Rock CPU cooler (1), 1x 120mm fan (2), 1x Intel back-
plate (3), 2x Intel mounting brackets (4), 1x cooler mounting
bridge (6), 4x Intel 115X/1366 nuts (8), 4x mounting bracket
fastening screws (10), 2x Intel/AMD mounting bridge fastening
screws (11), 4x Intel backplate screws (12), 4x O-rings (14), 2x
fan clips (15)
Mounting the backplate
Position the Intel backplate screws (12) in the notches situated
on the rear side of the Intel backplate (3). Pay attention in so
doing to align with the holes drilled for each socket.
1150, 1151,
1155, 1156
1366
For fixing the backplate screws onto the Intel backplate use
the O-rings (14). Once assembly of the Intel backplate for the
respective Intel socket has been completed, position it under
the motherboard. In so doing make sure that the backplate
screws are precisely located within the motherboard holes.
1366
1150, 1151, 1155, 1156
Installation of the mounting brackets
Screw the Intel 115X/1366 nuts (8) onto the previously
positioned Intel backplate (3). Then position the Intel mounting
brackets (4) over the Intel 115X/1366 nuts (8) and affix these
with the mounting bracket fastening srews (10). You can use
any cross-tip screwdriver for this.
!
We recommend removal of the cooler prior to transportation.
Quantity Part name
8
Intel 115X/1366 nuts
1
9
AMD spacer nuts
1
10
Mounting bracket fastening
screws
11
Intel/AMD mounting bridge
1
fastening screws
12
Intel backplate screws
2
13
AMD backplate screws
2
14
O-rings
15
1
Fan clips
16
4
AM3 washers
Mounting the CPU cooler
The protective covering on the underneath of the cooler must
be removed prior to installation against the CPU.
Caution: The thermal past supplied is not suitable for human
consumption. If swallowed, drink lots of water and urgently
seek medical attention. Keep it out of the reach of children.
Avoid contact with skin and eyes.
Position the cooler mounting bridge (6) centrally on the cooler
(1). Next place the cooler unit onto the CPU. Insert the Intel/
AMD mounting bridge fastening screws (11) from above into
the cooler mounting bridge and then screw these alternately
tight. You can any cross-tip screwdriver for this.
Fasten the 120mm fan (2) onto the cooler unit (1) using fan
clips (15). Connect the fan to the motherboard's PWM
signal.
When dismantling the fan (2), push the notches of the fan clips
(15) away from the fan.
Glinde, 05/2018
Quantity
4
4
4
2
4
4
4
2
4
