www.bequiet.com/bk008
» Product information for this CPU cooler
» Produktinformationen zu diesem CPU-Kühler
» Informations produit pour ce système de refroidissement
» Información del producto para este refrigerador de CPU
» Informacje produktowe dla tego coolera CPU
» Engelstalige productinformatie voor deze processorkoeler
NL
» Produktinformation för den här processorkylaren, på
SE
engelska
» П одробнаяинформацияоданномкулередля
процессора
» 此CPU散熱器的產品資訊
» 此CPU散热器的产品信息
» 製品情報 (クーラー)
Intel LGA 1150 / 1151 / 1155 / 1156
The following parts are needed for this:

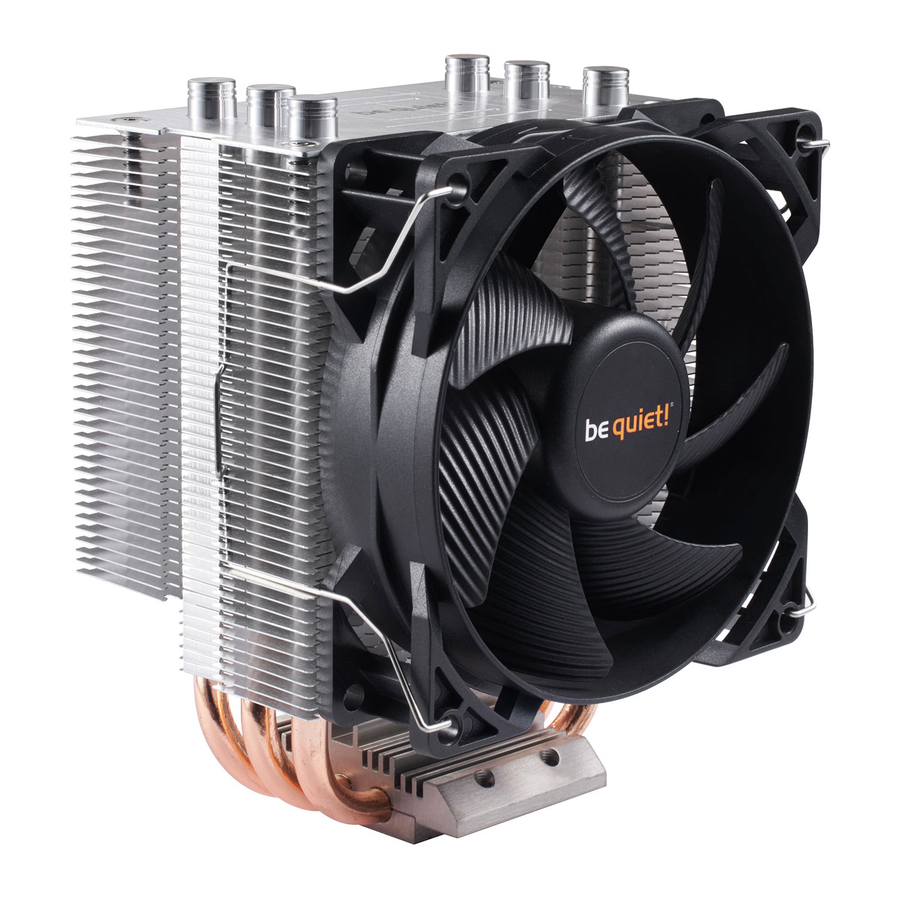

1x Pure Rock Slim CPU cooler (1), 1x 92mm fan (2), 2x fan clips (4)
Mounting the CPU cooler
Montage des CPU-Kühlers
The protective covering on the under-
Vor der Montage muss zunächst die
neath of the cooler must be removed
Schutzkappe von der Unterseite des
prior to installation against the CPU.
CPU-Kühlers entfernt werden.
Fasten the 92mm fan (2) onto the
Befestigen Sie den 92mm Lüfter (2) mit
cooler unit (1) using the fan clips (4).
Hilfe der Lüfterklammern (4) am Kühler
Connect the fan to the motherboard's
(1). Anschließend verbinden Sie den
PWM signal.
Lüfter mit dem CPU-Lüfteranschluss
des Mainboards.
To remove the cooler unit (2), first rotate
Zur Demontage des 92mm Lüfters (2)
the Intel push-pins counterclockwise
drücken Sie die Kerben der Lüfter-
and then lift them up.
klammern (4) vom Lüfter weg.
Introduction: Thank you for deciding to purchase a be quiet!
product. The following instructions will guide you through the
installation process. If you do encounter installation problems,
please don't hesitate to contact our customer services by
mailing service@bequiet.com. Please note that be quiet!
cannot accept liability for damage caused by compatibility
problems.
Warranty:
• 3-year manufacturer guarantee for consumers (original
purchase from authorized be quiet! dealers only)
• Guarantee work can only be processed with a copy
included of the purchase receipt from an authorized be
quiet! dealer
• Manipulation and structural changes of any kind, including
any damage caused by external mechanical force, will lead
to a complete voiding of the guarantee
• Our General Warranty Conditions apply, which can be
viewed on bequiet.com
Listan GmbH . Biedenkamp 3a . 21509 Glinde . Germany
For further information contact us via e-mail:
service@bequiet.com
!
General: With preassembled motherboards we recommend
installing the cooler inside the PC case.
SCOPE OF DELIVERY / LIEFERUMFANG
2
3
4
Es werden folgende Bauteile benötigt:
1x Pure Rock Slim CPU-Kühler (1), 1x 92mm Lüfter (2), 2x Lüfterklammern (4)
Place the cooler unit (1) onto the CPU.
Platzieren Sie den Kühlkörper (1) auf die
CPU.
Einleitung: Vielen Dank, dass Sie sich für ein be quiet!
Produkt entschieden haben. Diese Anleitung wird Ihnen beim
Installationsprozess behilflich sein. Sollten bei der Installation
Schwierigkeiten auftreten, kontaktieren Sie bitte unseren
Kundenservice unter service@bequiet.com. be quiet! kann
keinerlei Haftung für durch Kompatibilitätsprobleme bedingte
Schäden übernehmen.
Garantie:
• 3 Jahre Herstellergarantie für Endkonsumenten (nur Erst-
erwerb vom autorisierten be quiet! Händler), ab Datum des
Kaufbelegs
• Eine Garantieabwicklung ist nur in Verbindung mit einer
beigefügten Kopie des Kaufbeleges eines autorisierten
be quiet! Händlers möglich
• Manipulationen und bauliche Veränderungen jeglicher
Art, sowie Beschädigungen durch äußere mechanische
Einwirkungen führen zum totalen Garantieverlust
• Es gelten unsere allgemeinen Garantiebestimmungen, die
Sie unter www.bequiet.com im Internet abrufen können
Listan GmbH . Biedenkamp 3a . 21509 Glinde . Deutschland
Für weitere Unterstützung erreichen Sie uns via E-Mail:
service@bequiet.com
!
Allgemein: Für die Montage des Kühlers empfehlen wir die
Installation bei vormontiertem Mainboard im Gehäuse.
Part name
Quantity
Pure Rock Slim CPU
cooler
1
be quiet! Pure Rock
Slim CPU-Kühler
92mm fan
1
92mm Lüfter
AMD mounting clamp
1
AMD Montageklammer
Fan clips
2
Lüfterklammern
03/2018
To install the be quiet! Pure Rock Slim
press the push-pins into the matching
sockets.
To remove the cooler unit (1), first rotate
the Intel push-pins counter-clockwise
and then lift them up.
Um den be quiet! Pure Rock Slim zu
befestigen, drücken Sie die Push-
Pins in die vorgesehenen Aussparungen.
Um den Kühlkörper (1) zu entfernen,
drehen Sie die Intel Push-Pins gegen den
Uhrzeigersinn und ziehen diese dann
hoch.
