Display
LED Indications
Keys
INPUT SPECIFICATIONS
Input Signal
Sampling time
Input Filter (FTC)
Resolution
Temperature Unit
Indication Accuracy
FUNCTIONAL SPECIFICATIONS
Control Method
Proportional Band(P)
Integral Time(I)
Derivative Time(D)
Cycle Time
Hysteresis Width
Dwell Timer
Manual Reset Value
HEAT COOL PID SPECIFICATIONS
Control Method
Proportional
Band-Cool
Cycle Time-Cool
Dead Band
TEMPERATURE
4 digits (White) + 4 digits (Green)
Display Height:-
White Display:- 15.3 mm
Green Display:- 8 mm
7 segment digital display
1 : Output 1 ON
2 : Output 2 ON
T : Tune
S : Dwell Timer
3 keys for digital setting
Thermocouple (J,K,T,R,S) /
RTD (PT100)
250 msec
0.2 to 10.0 sec
0.1 / 1° for TC/RTD input
(Fixed 1° for R & S type TC input)
o
C / °F selectable
For TC inputs :
0.25% of F. S ±1°C
For R & S inputs :
0.5% of F. S ±2°C
( 30 min of warm up time
for TC input )
For RTD inputs :
0.1% of F. S ±1°C
1) PID control with Auto or
Self Tuning
2) ON-OFF control
1.0 to 400.0°C, 1.0 to 752.0°F
0 to 9999 sec
0 to 9999 sec
0.1 to 99.9 sec
0.1 to 99.9°C
0 to 9999 min
-19.9 to 19.9°C / °F
PID
1.0 to 400.0°C
1.0 to 752.0°F
0.1 to 99.9 sec
SPLL to SPHL(Programmable)
CONTROLLER
RE
SERVICE
MANUAL
1 1
.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RE11 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lumel RE11

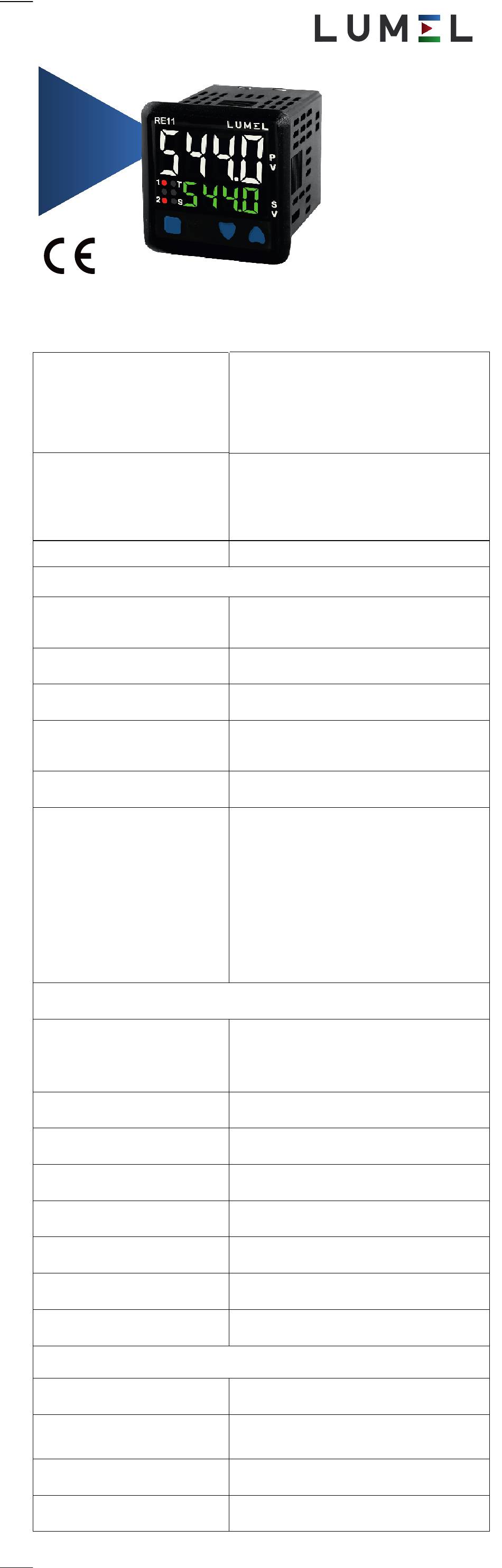

  • Page 1 TEMPERATURE CONTROLLER SERVICE MANUAL 4 digits (White) + 4 digits (Green) Display Height:- Display White Display:- 15.3 mm Green Display:- 8 mm 7 segment digital display 1 : Output 1 ON 2 : Output 2 ON LED Indications T : Tune S : Dwell Timer Keys 3 keys for digital setting...
  • Page 2: Safety Precautions

    OUTPUT SPECIFICATIONS Control Output Relay Contact : 5A resistive@250V AC / 30V DC (Relay or SSR user selectable) SSR Drive Output (Voltage Pulse): 12V DC, 30 mA Auxiliary Output Relay Contact : 5A resistive@250V AC / 30V DC POWER SUPPLY SPECIFICATIONS 85 to 270V AC / DC Supply Voltage (AC : 50 / 60 Hz )
  • Page 3: Mechanical Installation

    2. INSTALLATION GUIDELINES 1.This equipment, being built-in-type, normally becomes a part of main control panel and in such case the terminals do not remain accessible to the end user after installation and Internal wiring. 2.Do not allow pieces of metal, wire clippings, or fine metallic fillings from installation to enter the product or else it may lead to a safety hazard that may in turn endanger life or cause electrical shock to the operator.
  • Page 4 4. EMC GUIDELINES 1.Use proper input power cables with shortest connections and twisted type. 2.Layout of connecting cables shall be away from any internal EMI source. 5. LOAD CONNECTIONS 1.The service life of the output relays depends on the switching capacity and switching conditions. Consider the actual application conditions and use the product within the rated load and electrical service life.
  • Page 5: Front Panel Description

    8. FRONT PANEL DESCRIPTION RE11 1) Displays a process value (PV). 1 Process-value (PV) / 2) Displays the parameter symbols Parameter name at configuration mode/online menu. display 3) Displays PV error conditions. (refer Table 2) Parameter setting Displays the parameter settings at display configuration mode/online menu.
  • Page 6 Table 1 : INPUT RANGE FOR RTD INPUT TYPE RANGE Resolution: 1 Resolution: 0.1 UNIT PT100 -150 to 850 -150.0 to 850.0 °C -238 to 1562 -199.9 to 999.9 °F FOR THERMOCOUPLE INPUT TYPE RANGE Resolution: 1 Resolution: 0.1 UNIT -199 to 750 -199 to 750 °C...
  • Page 7 Dwell Timer Default : OFF Range : OFF, 1 to 9999 min If upper display is selected as then, Pressing key will show on Upper display : Lower display : <OFF> Press keys to increment / decrement time value. 10. USER GUIDE 1.
  • Page 8 overshoot Temp. Hysteresis set point Reverse Output Time Temp. Hysteresis set point Forward Output Time 5. Manual Reset (for PID control & I = 0) : After some time the process temperature settles at some point and there is a difference between the set temperature &...
  • Page 9 Press for 3 sec to view Level 1 To exit configuration menu press any of these keys for 3 sec Allows the user to increase or decrease associated parameter value OPERATIONAL MENU POWER ON RE11 Press key for 3sec. Press keys for 3sec.
  • Page 10 LUMEL S.A. ul. Słubicka 4, 65-127 Zielona Góra, Poland tel.: +48 68 45 75 100, fax +48 68 45 75 508 www.lumel.com.pl Technical support: tel.: (+48 68) 45 75 143, 45 75 141, 45 75 144, 45 75 140 e-mail: export@lumel.com.pl Export department: tel.: (+48 68) 45 75 130, 45 75 131, 45 75 132...
