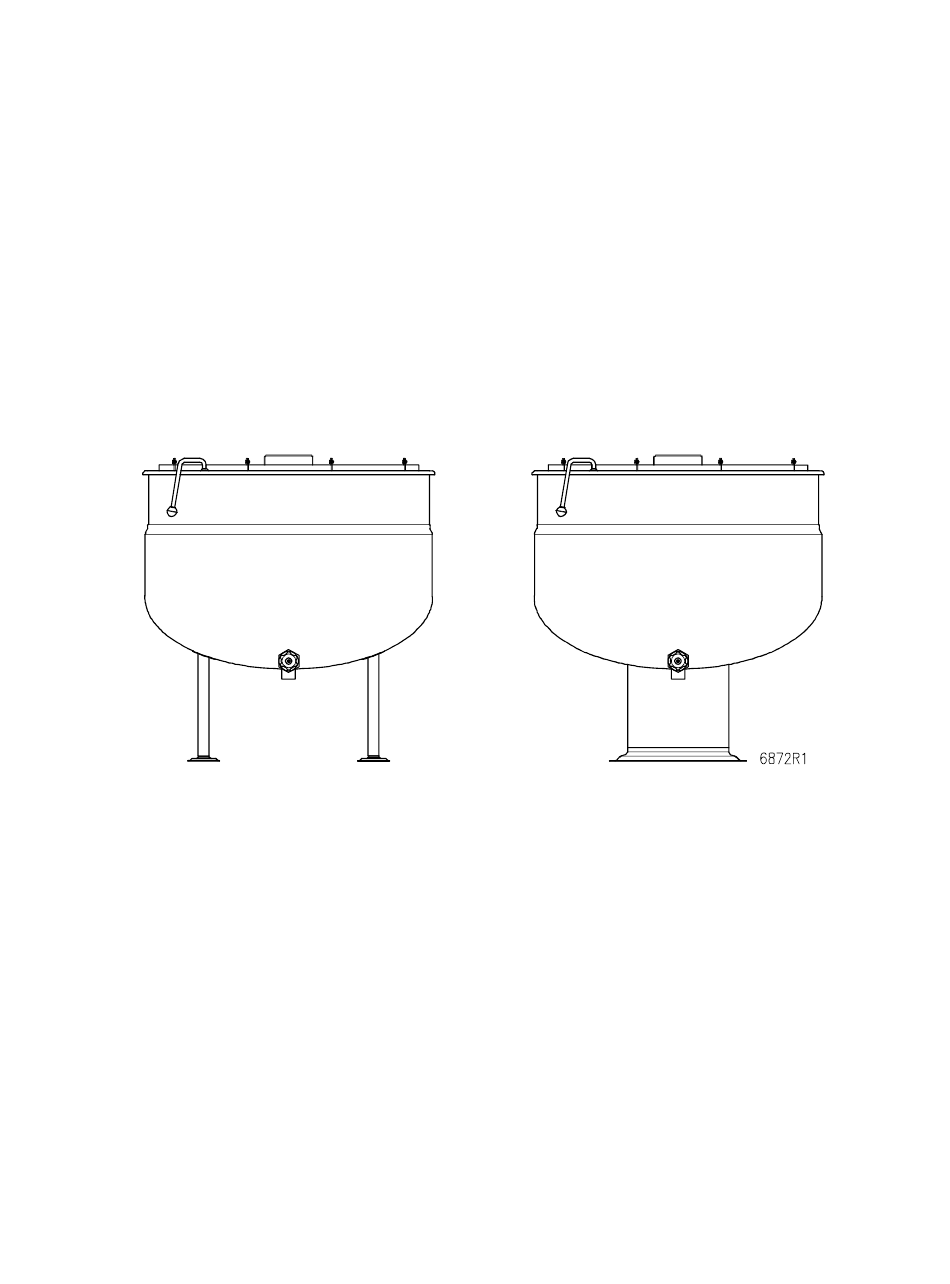

- Page 1 INSTALLATION AND OPERATION MANUAL DIRECT STEAM STATIONARY KETTLES MODELS: DL-80F, DL-125, DL-150 GALLON DP-80F GALLON WWW.SOLARISSTEAM.COM PART NUMBER 10219R0 2009-03-23...
- Page 2 INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS: DL-80F, DL-125, DL-150, DP-80F GALLON IMPORTANT NOTES FOR INSTALLATION AND OPERATION It is recommended that this manual be read thoroughly and that all instructions be followed carefully. This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
- Page 3 INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS: DL-80F, DL-125, DL-150, DP-80F GALLON TABLE OF CONTENTS DESCRIPTION PAGE Service Connections ........... . 4 2.0 Installation Instructions .
- Page 4 INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS: DL-80F, DL-125, DL-150, DP-80F GALLON 1.0 SERVICE CONNECTIONS PART NUMBER 10219R0 2009-03-23...
- Page 5 INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS: DL-80F, DL-125, DL-150, DP-80F GALLON 1.0 SERVICE CONNECTIONS (Continued) PART NUMBER 10219R0 2009-03-23...
- Page 6 INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS: DL-80F, DL-125, DL-150, DP-80F GALLON 2.0 INSTALLATION INSTRUCTIONS Select a location to provide drainage directly below the tangent Draw-off Valve. Mark hole locations through flanged adjustable feet on DL models and through pedestal base on DP models.
- Page 7 (US). FUNCTIONING MODE Crown direct connected steam jacketed kettles consist of a stainless steel bowl and a stainless steel jacket which envelopes two thirds of the lower surface of the bowl thus forming a sealed pressure vessel (chamber) into which steam is introduced by means of a manual control valve.
- Page 8 INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS: DL-80F, DL-125, DL-150, DP-80F GALLON OPERATING INSTRUCTIONS CAUTION: The appliance and its parts are hot. Use care when operating, cleaning and servicing the appliance. OPERATING PROCEDURE Ensure that draw-off valve is closed. Fill kettle with product to desired level.
- Page 9 INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS: DL-80F, DL-125, DL-150, DP-80F GALLON 5.0 CLEANING PROCEDURES Your kettle should be cleaned immediately after each use. Ensure that steam supply is OFF. Pre-rinse inside of kettle thoroughly and drain to remove any food particles. Using a nylon brush, clean kettle with a mild detergent and warm water rinse.
- Page 10 INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS: DL-80F, DL-125, DL-150, DP-80F GALLON 5.0 CLEANING PROCEDURES (Continued) Use of cleaning agents that contain chloride, acids or salts are corrosive and may cause pitting and corrosion when used over a period of time; this will reduce the life of the appliance. Should pitting or corrosion occur this is not covered by warranty.
- Page 11 INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS: DL-80F, DL-125, DL-150, DP-80F GALLON 6.0 TROUBLESHOOTING MAINTENANCE PREVENTIVE MAINTENANCE No preventive maintenance is required other than adhering to the Cleaning Procedure instructions. DRAW-OFF VALVE LEAKS If a leak occurs through the valve stem, replace the “O” ring. If the leak can be attributed to faulty sealing occurring between the stem disc and valve seat, then this problem may be corrected by cleaning off the dried-on food residue with extremely fine emery cloth.
- Page 12 INSTALLATION AND OPERATION MANUAL - DIRECT STEAM STATIONARY KETTLES, MODELS: DL-80F, DL-125, DL-150, DP-80F GALLON 6.0 TROUBLESHOOTING MAINTENANCE (Continued) VENTING It is recommended that the “optional” steam trap assembly be installed. This should be plumbed to the exit end of the kettle. The thermostatic trap is a mechanical device that closes on high temperature and opens when the temperature drops, allowing the water which formed from condensate to exhaust but retain the steam under pressure.
