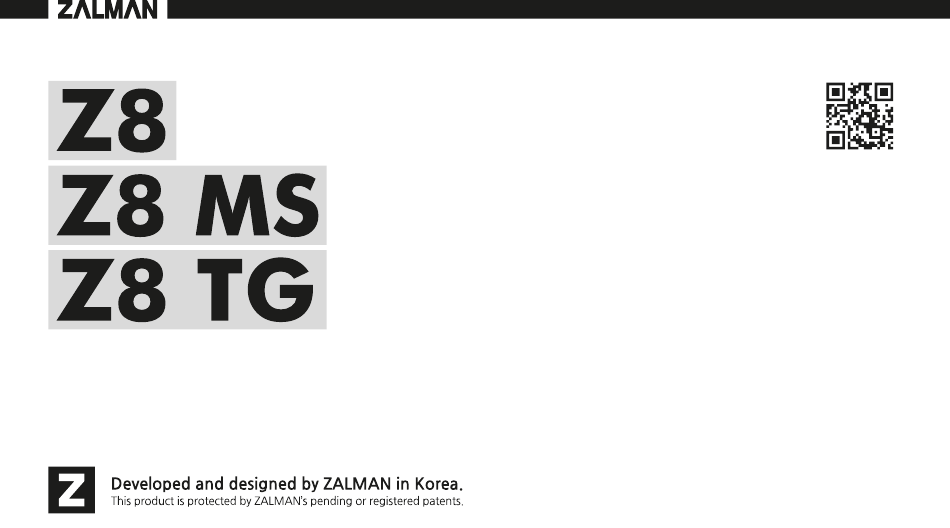

- Page 1 ATX MID TOWER COMPUTER CASE User's Manual Ver. 041120 * To ensure safe and easy installation, please read the following precaution. * Product design and specifications may be revised to improve quality and performance without notice.
- Page 2 Precautions ■ Read this manual carefully before installing. ■ Check the product and components before installing. If you find any abnormal- ity, contact the location where you purchased the product for a replacement or refund. ■ Wear gloves to prevent accidents when installing the product. ■...
-
Page 3: Specifications
ARGB Controller Included 120mm / 240mm / 280mm Radiator Support Front 120mm Rear 120mm 2ⅹUSB3.0, 1ⅹUSB2.0, 1ⅹHeadphone Jack, I/O Ports 1ⅹMicrophone jack, Power Button, Reset Button, LED Button Z8, Z8 MS Z8 TG 212mm 212mm 460mm Tempered Glass Accessories User’s Glass... - Page 4 1. Removing the side panels 1) Tempered Glass 2) Steel Panel 2. Removing the front panel 3. Mounting the motherboard Motherboard Standoffs SSD / MB Screws 3-1. Motherboard size 1) E-ATX (~280mm) 2) ATX 3) mATX 4) Mini-ITX 4. Mounting the PCI-E(VGA) Card PSU / VGA Screws...
- Page 5 HDD Screws 2. SSD 1. HDD MB Screws Thumb Screws ※ Z8 MS, Z8 TG Only ARGB LED 1~4 / 3-Pin DATA ARGB Connector ARGB LED Control Button / 2-Pin - Connector to ARGB LED Control Button Other Motherboards Sync / 3-Pin...
- Page 6 Input : 12V 0.16A (LED)5V 0.5A Sleeve Bearing Hydro Bearing 4-Pin 4-Pin Z8, Z8 MS, Z8 TG Rear (120mm Fan) RPM : 1,100 ±15% Input : 12V 0.16A Sleeve Bearing 3-Pin 10. Mounting the fans 1) Mounting the top & bottom fans...
