Summary of Contents for Manfrotto MVR901EPLA

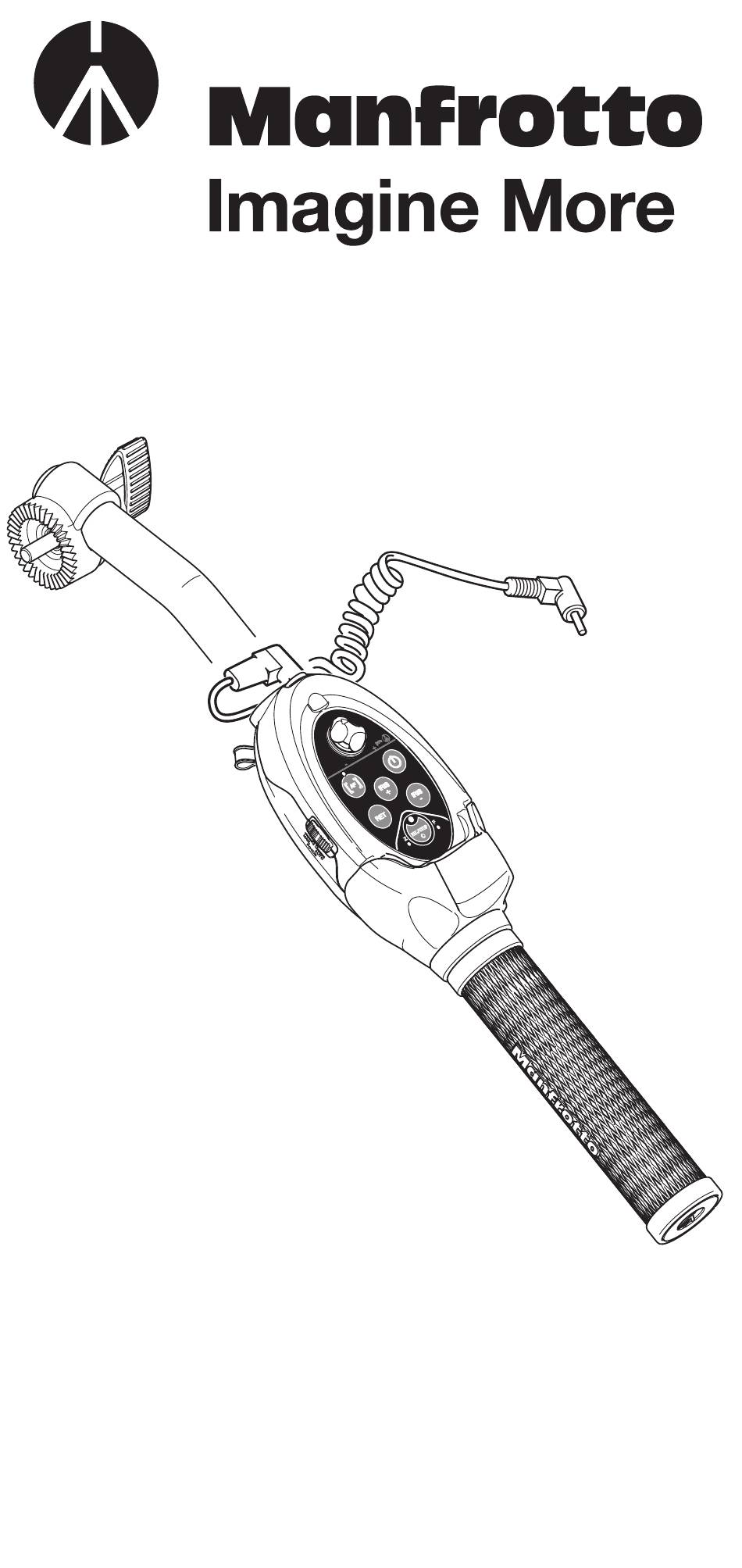

- Page 1 INSTRUCTIONS MVR901EPLA...
- Page 2 OPTIONAL MVR901APCL...
-
Page 3: Package Contents
• 140 cm spiral cable (when extended) • IRIS/Lens aperture control (Sony HD, Canon HD) • Play back the last 3-5 seconds of recording (RET) • Manfrotto rosette attachment • Compatibilty with universal clamp MVR901APCL (not included in the package, range : round tube 19 to 25 mm, 0.75” to 0.98”) QUICK START GUIDE &... -
Page 4: Operation
2. Connect the other end of the cable to the camera LANC plug Never connect controller to any other jack. It may even result in permanent controller and/or camera damage! NOTE: LANC controller is designed as a standalone control system for video cameras - it is not designed to work simultaneously with other LANC control systems... - Page 5 seconds. The new set up information will be permanently stored in the controller’s internal flash memory and restored after each power off. Customizing focus direction To change the focus direction proceed as follow: 1. switch the camera off. 2. press the “Focus control” button and do not release it 3.
- Page 6 4. wait for “LED indicator” to turn on and off. 5. release the buttons. The whole operation takes about 6 seconds. The new set up information will be permanently stored in the controller’s internal flash memory and restored after each power off. Standby mode Press the button once to switch camera into standby mode.
-
Page 7: Operating Specifications
IRIS value control IRIS Keep IRIS+or IRIS - pressed,for at least half a second, to change the camera aperture lens value. IRIS Camera IRIS value will usually be shown in the camera display. Manual/Auto IRIS mode IRIS Double click IRIS+or IRIS - to change the IRIS camera status from Auto... -
Page 8: Declaration Of Conformity
Manfrotto makes no warranty and shall not be liable for any errors on information contained in this document. LANC stands for Local Application Control Bus System and is a trade mark of SONY corp.
