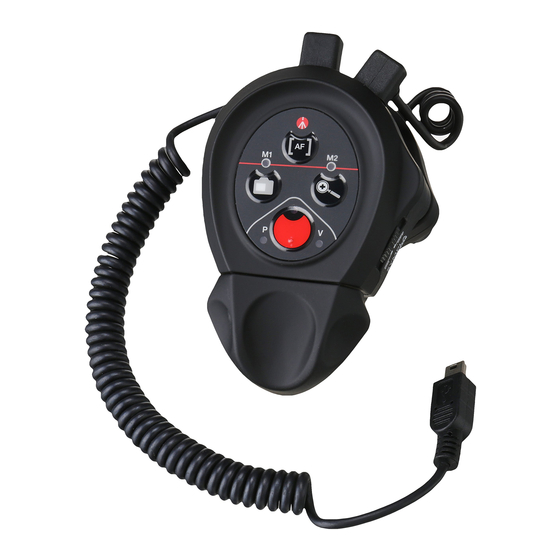

Manfrotto MVR911ECCN User Manual

MVR911ECCN User Manual – Additional Information – Valid for FW rev.0009 and newer
Focus control
If the lens "slips" too much when releasing the focus control at high speed, it is possible to slow down the focus control, by doing the
following:
1. Set the maximum focus speed (3)
2. Push simultaneously LV (8) and ZOOM (6) button: LEDs (12-13) blink
3. Push the LV button (8) to slow down
4. Push the zoom+ button (6) to speed up. There are 7 values available (7=maximum and is set as default)
- To check the result, move the focus (2)
To record the new value, push simultaneously LV (8) and Zoom (6) button
-
The Remote Control will automatically save settings for different lens and camera configurations.
Each time a different camera-lens configuration is connected, the appropriate settings will be applied.
Shutter control
For Single shot press the REC/Shutter button once. Push and hold the REC/Shutter button for more than 2 seconds to activate continuous
shooting.
To switch from photo to video and from video to photo mode double click the REC/shutter button.
Usb cable connector
During set-up, pay attention to how the USB cable connector is plugged into the 'out' port of the remote control.
Please see the picture below before the correct configuration .
MVR911ECCN user manual – additional information_rev 2.1
