Manfrotto 521CFI Instructions

OPERATION
Selecting zoom speed limit
Turn zoom speed limit knob from up to down to set
lower zoom speed limit.
Turn the knob in opposite direction to set higher
speed limit.
Variable mode zoom
Rotate the zoom knob right (or left, dependent on the
zoom direction) to zoom tele. The more angle the knob
is rotated the faster zoom speed is. Zoom speed is
limited to pre-set speed (see "Selecting zoom speed
limit").
Rotate the knob left (or right, dependent on the zoom
direction) to zoom wide. The more angle the knob is
rotated the faster zoom speed is. Zoom speed is
limited to pre-set speed (see "Selecting zoom speed
limit").
Customizing zoom direction
To change the zoom direction, move zoom direction
switch, found on the right side of the controller body,
to opposite position.
REC/STOP
Press the button once to start recording.
Press the button again to stop recording.
RET function
It used to play back last 3 seconds of footage, then
stop at the last recorded frame ready to record again.
Press the button to execute RET function.
PRECAUTIONS
Water resistivity
We put a lot of attention on making the controller to be
as much water resistant as possible, while maintaining
its reasonable price.
However we cannot guarantee 100% water resistance
under all circumstances and you should avoid using the
controller under heavy environment conditions like rain
and over 95% humidity level.
High temperature
Avoid temperatures exceeding +70°C – especially do
not leave the controller exposed for direct contact with
heavy sun shines, e.g. in the car parked in sunny place.
OPERATING SPECIFICATIONS
Operation temperature range 0°C - +50°C
Storage temperature range -30°C - +80°C
Humidity rel. (non condensing) max. 95%
Power supply from camera (6V max.)
Power consumption 25mW
DISCLAIMER
The information contained in this document is subject of
change without notice.
Manfrotto makes no warranty and shall not be liable for
any errors on information contained in this document.
Cod. 521,53 - 10/06 Copyright © 2006 Manfrotto Bassano Italy

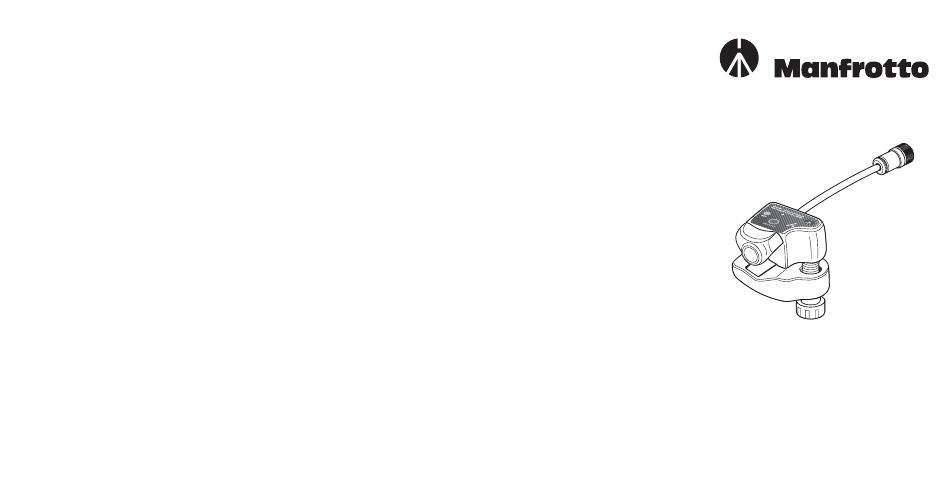

INSTRUCTIONS
521CFI
