www.somfy.com

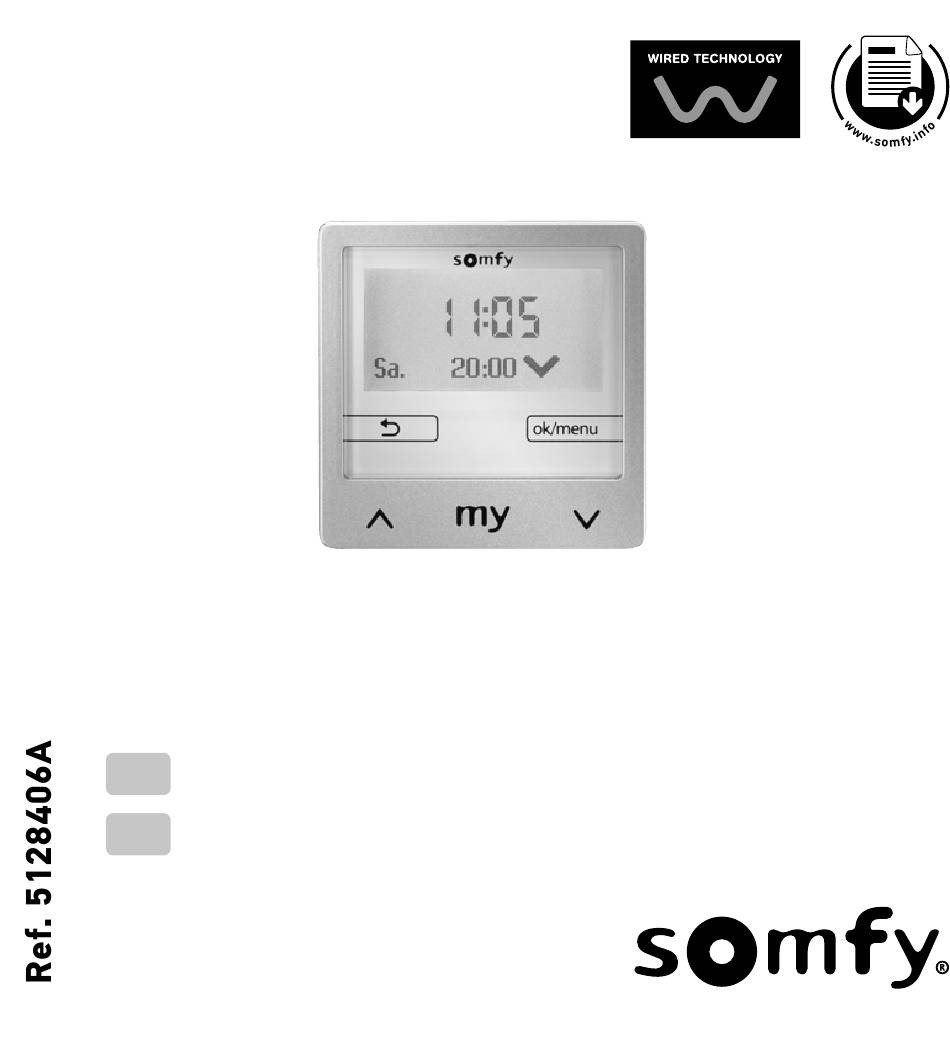

SOLIRIS
SMOOVE IB+
INSTALLATION GUIDE
EN
INSTALLATIEGIDS
NL

Advertisement

loading
Need help?

Need help?

Do you have a question about the SOLIRIS SMOOVE IB+ and is the answer not in the manual?

Questions and answers

Related Manuals for SOMFY SOLIRIS SMOOVE IB+

Summary of Contents for SOMFY SOLIRIS SMOOVE IB+

  • Page 1 SOLIRIS SMOOVE IB+ INSTALLATION GUIDE INSTALLATIEGIDS...

  • Page 2: Safety Instructions

    He must give them these instructions. Any use outside the sphere of application defined by Somfy is prohibited. This invalidates the warranty and discharges Somfy of all liability, as does any failure to comply with the instructions given herein.
  • Page 3 11 mm 31 mm 71 mm 50 mm Activation in the settings menu: confirms an entry. min. 40 mm After 3 minutes, the appliance will enter standby mode and the display will switch off. Stand-by mode ends once a key is activated. 4.
  • Page 4 The motor end limits must be set in advance. Advice for operating the external venetian blind: if the product does not move or barely moves after jogging, adjust the maximum tilting time of the slats or the start-up delay time (see the online manual).
  • Page 5 8. Saving and deleting the favourite position 9. Restoring the original configuration (Figure G) (Figure H) Radio-controlled Optional QuickCopy™ optional Sunis Wirefree II Prerequisite: the travel time should be accurately set setting tool io ™ sunlight sensor Set the user profile in professional mode in (see the commissioning section).

  • Page 6: Safety And Liability

    He must give them these instructions. Any use outside the sphere of application defined by Somfy is prohibited. This invalidates the warranty and discharges Somfy of all liability, as does any failure to comply with the instructions given herein.

  • Page 7: Description Of The Control Buttons

    8.00 pm. Using the QuickCopy appliance and PC software, up to 3 zones can be controlled independently (only with IB+ motor electronic modules). Soliris Smoove IB + also enables applications to be controlled automatically depending on the brightness using an optional sunlight, wind or rain sensor.
  • Page 8 Activation in the settings menu: confirms an entry. After 3 minutes, the appliance will enter standby mode and the display will switch off. Stand-by mode ends once a key is activated. 4. Connection (Figure B) The installation, testing and commissioning of the appliance must be carried out by qualified personnel.

  • Page 9: Installation

    Connection Line Max. distance 230 V AC 1.5 mm² 0.6 - 1.5 mm² 1000 m max. IB+ bus 100 IB/IB+ motor (twisted pairs controllers recommended) Sensors 0.6 - 0.75 mm² 50 m The wires (L, N) and the IB+ bus wires (common, upwards, downwards, IB+) must be attached separately with the 2 cable clamps attached 5.

  • Page 10: Initial Commissioning

    6. Initial commissioning (Figure E) If the appliance has already been commissioned, the main screen displays (image If the appliance is in its original configuration, carry out the settings  , step by step. Each setting must be confirmed with the “ok” button in order to access the next step: language, time, date (dd/mm/yy), type of equipment, linear travel (*1) and using the sensors.
  • Page 11 The motor end limits must be set in advance. Advice for operating the external venetian blind: if the product does not move or barely moves after jogging, adjust the maximum tilting time of the slats or the start-up delay time (see the online manual).

  • Page 12: Quick Menu

    7. Quick menu (Figure F) On the main screen, briefly press the button Several operating modes will appear: Automatic mode: all the automatic functions are activated. Manual control is possible. Automatic mode stand-by: the automatic functions are deactivated for 6, 12 or 18  hours. The automatic functions then automatically re-activate.
  • Page 13 8. Saving and deleting the favourite position (Figure G) Prerequisite: the travel time should be accurately set (see the commissioning section). 8. 1. Saving the favourite position Position the product in the required position and stop it by briefly pressing the button Press button again for at least 5 sec.
  • Page 14 9. Restoring the original configuration (Figure H) Set the user profile in professional mode in “Configuration menu” / “Configuration” / “User mode set-up”. Confirm the “Professional” option by pressing button In the “Configuration” sub-menu chose the “Service” option. Confirm “Factory reset”. Press the down button and select “Yes”.
  • Page 15 10. Optional (Figure I) 10. 1. QuickCopy™ setting tool Using this setting tool and the corresponding PC software (available free-of-charge to download), the settings can be configured very easily and transferred to other products. (See the QuickCopy™ instructions) 10. 2. Sunis Wirefree io™ radio-controlled sunlight sensor This sensor enables the twilight and sunlight functions to be used.

  • Page 16: Technical Data

    11. Technical data Operating voltage: 230 V AC ~ 50/60 Hz Output voltage: IB+/IB Bus Motor travel time: Max. 6 min. Protection rating: IP 20 Protection class: Operating temperature: 0 °C to + 40 °C Do not dispose of this product with the household waste.
  • Page 17 Europese richtlijnen voor toepassing binnen Somfy hereby declares that the radio de Europese Unie. equipment covered by these instructions is De volledige EU-conformiteitsverklaring in compliance with the requirements of staat ter beschikking op de website Radio Directive 2014/53/EU and the other www.somfy.com/ce.
