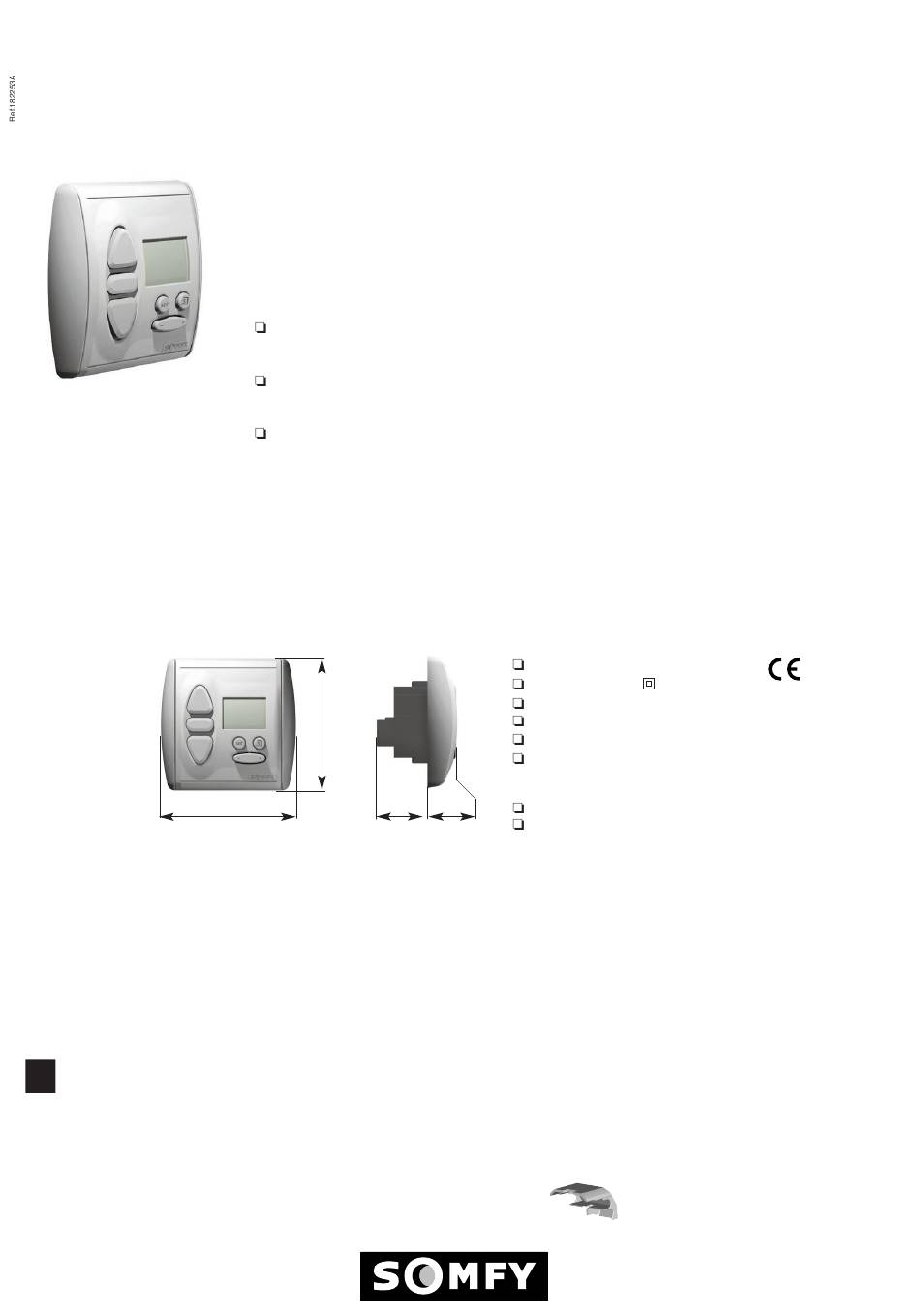

INSTALLATION
1
Characteristics:
2
Installation:
Installation allowed only by authorized electrician.
Before connecting the unit, read the instructions carefully.
Cabling :
A
The CHRONIS IB is compatible with the SOMFY "IB" BUS line (common = +V). Cabling arrangements are
shown in the diagram below. Respect the electrical standards in force as well as the following points:
- disconnect the mains before carrying out any work.
- ensure that no forces act on the screw terminals after installation.
- Do not forget to mount the protection cover to separate the cables
for the BUS line and the cables for the power.
inteo

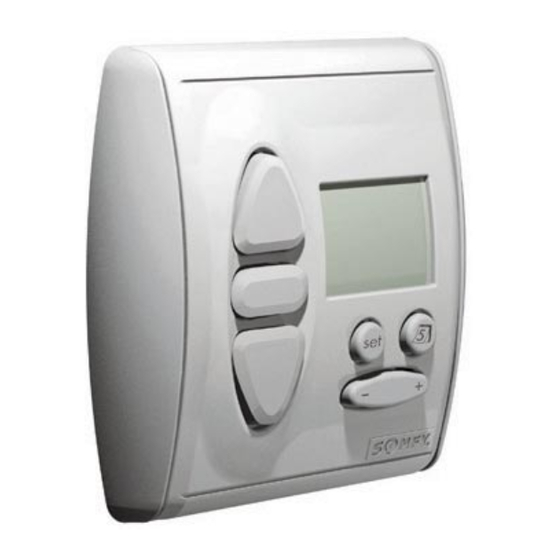

The CHRONIS IB is a timer and manual control for IB BUS line.
The main function of the CHRONIS IB is "to give controls according to the time".
In that way, one "UP" and one "DOWN" control per day can be programmed.
Weekly timer :
different times can be programmed for every day of the week.
Cosmic function :
the time of the automatic up and down controls are determined according to the season.
SEC function :
Thanks to a specific working mode (chosen by the end user), Chronis gives the impression
that a house is inhabited (automatic controls are sent within a window of +/- 15 minutes
around the programmed times).
80 mm
33 mm 17 mm
80 mm
CHRONIS IB
Main supply : 220-240V 50Hz.
Class II product
Protection index IP40.
Output : dry contacts 3A.
Output temporisation : active for 0,5s.
Environmental conditions for use :
- temperature +5°C to +40°C (no condensation allowed).
- pollution degree typical for usual living space.
Time accuracy : +/- 5 minutes a year.
Power failure :
memorized open and closing time are not erased by a power failure.
®
guide
EN60730-1
EN50081-1
EN50082-1
date and time are stored up to 10 days. The
Advertisement
Related Manuals for SOMFY inteo CHRONIS IB
Summary of Contents for SOMFY inteo CHRONIS IB
- Page 1 Before connecting the unit, read the instructions carefully. Cabling : The CHRONIS IB is compatible with the SOMFY “IB” BUS line (common = +V). Cabling arrangements are shown in the diagram below. Respect the electrical standards in force as well as the following points: - disconnect the mains before carrying out any work.
- Page 2 IB BUS line SUPPLY DOWN : IB BUS line UP : 3 x 0,75 mm 2 Common : 2 x 1,5 mm 2 = Mains phase BUS line COMMON Mains Phase = Mains neutral BUS line UP Mains Neutral = BUS Line common BUS line DOWN = BUS Line UP CHRONIS IB bracket...
- Page 3 Initial setting operation : Basically valid for setting or changing values: Blinking values can be changed Always press SET to terminate and store input values If no input is entered for approximately 20 seconds, the input menu is automatically exited. The settings made up to that point are not stored. Before setting the time, summer or winter time setting must be carried out.
- Page 4 Cosmic 1 (COS 1) The shutters open and close at approximately sunrise and sunset. By inputting a differential time, opening and/or closing can be moved independently in relation to the times of sunrise and sunset by up to +/- 1h 59 min. By inputting individual blocking times, it particularly prevents very early or late move commands in the summer months.
