SOMFY Inteo Chronis RTS Installation Manual

«
<'?
o
'"
....
o
o
en
:t
a:

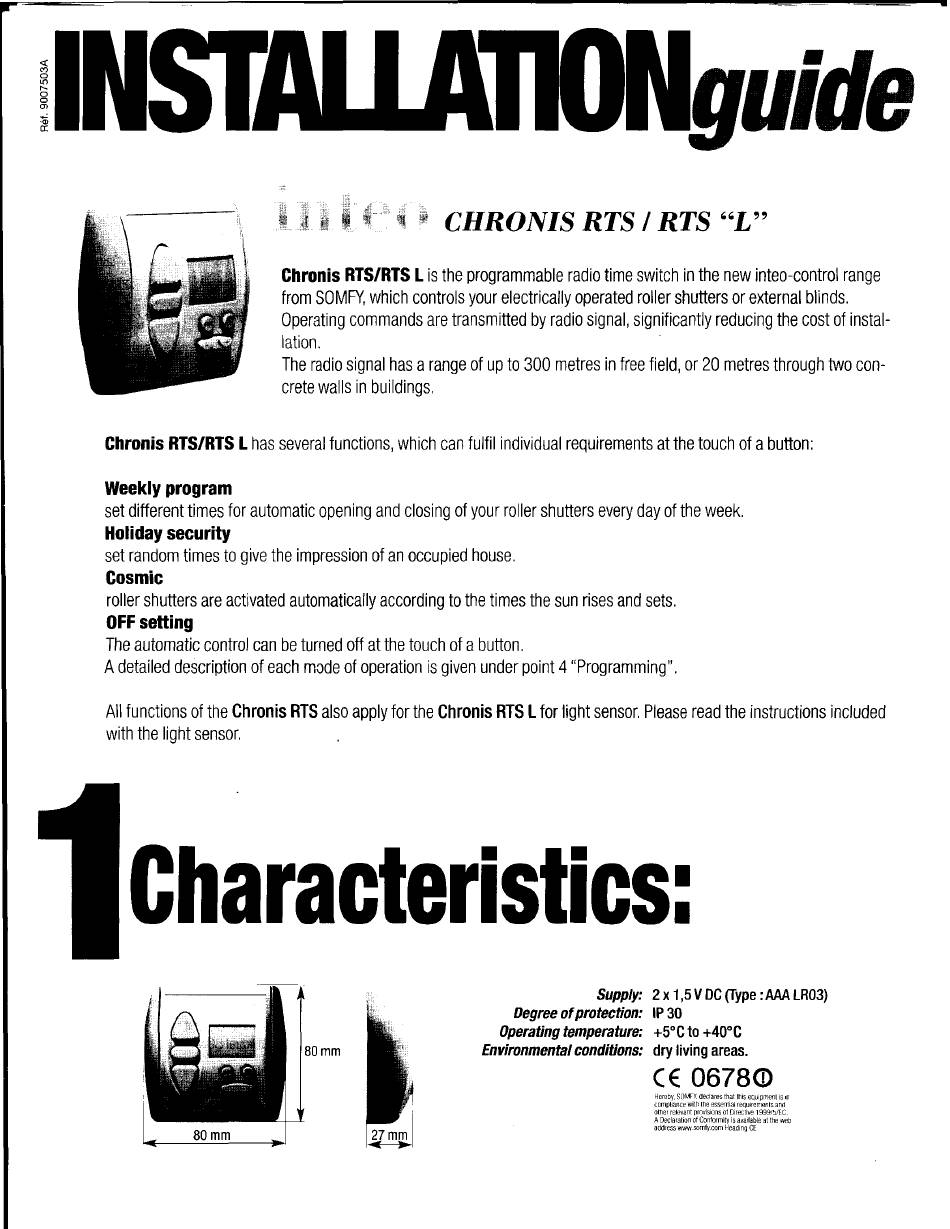

CHRONIS RTS / RTS "L"
Chronis RTS/RTS L is the programmable radio time switch in the new inteo-control range
from SOMFY, which controls your electrically operated roller shutters or external blinds.
Operating commands are transmitted by radio signal, significantly reducing the cost of instal-
lation.
.
The radio signal has a range of up to 300 metres in free field, or 20 metres through two con-
crete walls in buildings.
Chronis
RTS/RTS L has several functions, which can fulfil individual requirements at the touch of a button:
Weekly program
set different times for automatic opening and closing of your roller shutters every day of the week.
Holiday
security
set random times to give the impression of an occupied house.
Cosmic
roller shutters are activated automatically according to the times the sun rises and sets.
OFF setting
The automatic control can be turned off at the touch of a button.
A detailed description of each made of operation is given under point 4 "Programming".
All functions of the Chronis RTS also apply for the Chronis RTS L for light sensor. Please read the instructions included
with the light sensor.
Characteristics:
Supply: 2 x 1,5 V DC (Type: AM LR03)
Degree of protection: IP 30
Operating temperature: +5°C
to
+40°C
Environmental conditions: dry living areas.
( E 0678<D
HerebY,SOMry.declaresthatthisequipmenliSI~
compliancewilh the essential reQuircrnentsand
other relevant provisions of Directive
1999/!:JIE.C
A Declaration of Contormity is available at the web
address
I'IWW
somfy_com Heading CE
