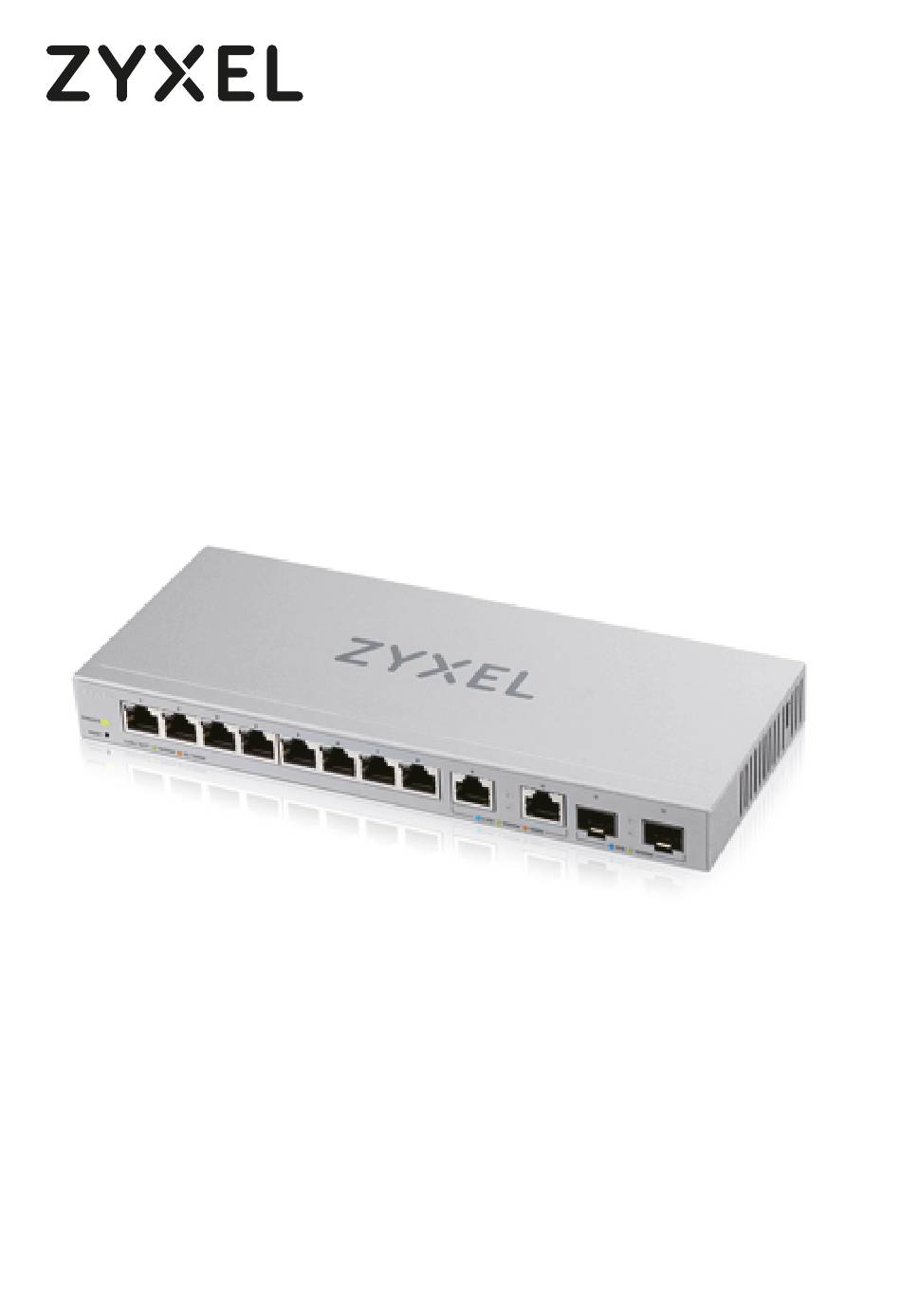

XGS1210-12
12-Port Web-Managed Multi-Gigabit Switch
with 2-Port 2.5G and 2-Port 10G SFP+
Quick Start Guide
ENGLISH | DEUTSCH | ESPAÑOL | FRANÇAIS
ITALIANO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XGS1210-12 and is the answer not in the manual?

Questions and answers

Related Manuals for ZyXEL Communications XGS1210-12

Summary of Contents for ZyXEL Communications XGS1210-12

  • Page 1 XGS1210-12 12-Port Web-Managed Multi-Gigabit Switch with 2-Port 2.5G and 2-Port 10G SFP+ Quick Start Guide ENGLISH | DEUTSCH | ESPAÑOL | FRANÇAIS ITALIANO...

  • Page 2: Package Contents

    Package Contents Switch International Power Adapter Declaration of Conformity Safety Warnings...

  • Page 3: Hardware Installation

    Hardware Installation Back DC 12V DC 12V Power Outlet Front 1 1 1 1 1 1 2 2 1 1 0 0 GLGI GLGI L L i i n n k k / / A A C C T T 1 1 0 0 0 0 0 0 M M 1 1 0 0 / / 1 1 0 0 0 0 M M 2 2 .
  • Page 4 Connect to an appropriate power source. Connect to a modem or router that has internet access. An eine geeignete Stromquelle anschließen. An ein Modem oder einen Router mit Internetanschluss anschließen. Conecte a una fuente de corriente apropiada. Conectar a un módem o router con acceso a Internet. Connectez-vous à...

  • Page 5: Manage Your Device

    Option A Manage Your Device Configure the Switch with a Dynamically Assigned IP Network 1 1 1 1 1 1 2 2 1 1 0 0 GLGI GLGI L L i i n n k k / / A A C C T T 1 1 0 0 0 0 0 0 M M 1 1 0 0 / / 1 1 0 0 0 0 M M 2 2 .
  • Page 6 Connect the Switch and your computer to the same network that has a DHCP server. Use the ZON utility to discover the Switch. Select the Switch and click the Web GUI icon to access its web configurator. Verbinden Sie den Switch und Ihren Computer mit demsel- ben Netzwerk, das über einen DHCP-Server verfügt.
  • Page 7 Option B Configure the Switch with a Static IP Switch IP: 1 1 1 1 1 1 2 2 1 1 0 0 GLGI GLGI 192.168.1.3 L L i i n n k k / / A A C C T T 1 1 0 0 0 0 0 0 M M 1 1 0 0 / / 1 1 0 0 0 0 M M 2 2 .
  • Page 8 Connect your computer to the Switch using an Ethernet cable. Your computer must have an IP address in the same subnet as the Switch. Launch your web browser and go to http://192.168.1.3. Enter 1234 as the password. Click SIGN IN. Verwenden Sie ein Ethernet-Kabel, um den Computer mit dem Switch zu verbinden.
  • Page 9 LEDs Green On - Power on. PWR/SYS Blinking - Starting up. Off - Switch off. Green On - 1000 Mbps connection ready. Blinking - Data transmitting. Ports 1-8 On - 10/100 Mbps connection ready. Amber LINK/ACT Blinking - Data transmitting. Off - No Connection.

  • Page 10: Troubleshooting

    Troubleshooting I cannot see or access the Login screen in the Web Configurator. Make sure you are using the correct IP address. (The default IP address is 192.168.1.3.) Make sure your computer is in the same subnet as the Switch. If you haven’t changed the default IP address, your computer IP address should be in the 192.168.1.4 ~ 192.168.1.254 range.

  • Page 12: Support Information

    EU Importer Zyxel Communications A/S Gladsaxevej 378, 2. th. 2860 Søborg, Denmark https://www.zyxel.com/dk/da/ US Importer Zyxel Communications, Inc 1130 North Miller Street Anaheim, CA 92806-2001 https://www.zyxel.com/us/en/ Copyright © 2020 Zyxel Communications Corp. All Rights Reserved.
