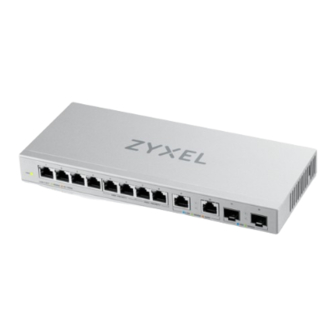

XGS1010-12
8-Port Gigabit Unmanaged Switch
with 2-Port 2.5G/2-Port SFP+
Quick Start Guide
ENGLISH | DEUTSCH | FRANÇAIS | ITALIANO
NORSK | ESPAÑOL | SUOMI | ČEŠTINA | POLSKI
Package Contents
XGS1010-12
International Power Adapter
QSG
Declaration of Conformity
DoC
Safety Warnings
1 Hardware Installation
Power outlet
1
1 1 2 3 4 5 6 7 8 9 1 0 1
PWR
MED PRIORITY HIGH PRIORITY
Link / ACT : 1000M 10 / 100M 2.5G 1000M 100M
Low Priority Medium Priority High Priority
PC IPTV VOIP 2.5G Router/AP
Phone
2.5G Gaming PC
EN
Connect to an appropriate power source.
The PWR light initially blinks. Wait for the PWR light to
turn steady on, indicating the Switch is ready for use.
Connect to a modem or router that has internet access.
DE An eine geeignete Stromquelle anschließen.
Warten Sie, bis das PWR-Licht dauerhaft leuchtet. Wenn
die PWR-Anzeige nicht blinkt, ist das Gerät betriebsbereit.
Connectez-vous à une source d'alimentation appropriée.
FR
Le voyant PWR se met tout d'abord à clignoter. Attendre
que le voyant PWR s'allume en continu, indiquant que le
commutateur est prêt à être utilisé.
Collegare ad una fonte di alimentazione appropriata.
IT
La luce di accensione all'inizio lampeggia. Attendi che sia
fissa, che significa che lo Switch è pronto all'uso.
NO Koble til en hensiktsmessig strømkilde.
PWR-lampen blinker til å begynne med. Vent til
PWR-lampen lyser kontinuerlig. Det angir at bryteren er
klar for bruk.
SE Anslut till en lämplig strömkälla.
Vänta till PWR-lampan lyser med ett fast sken. När
PWR-lampan inte längre blinkar är enheten redo att
användas.
FI FI Liitä laite yhteensopivaan virtalähteeseen.
Odota kunnes PWR-valo palaa tasaisesti. Kun PWR-valo
ei vilku, laite on käyttövalmis.
CZ Připojte do odpovídajícího zdroje energie.
Počkejte, dokud kontrolka PWR nezačne trvale svítit.
Pokud kontrolka PWR nebliká, zařízení je připraveno k
provozu.
PL Podłącz do odpowiedniego źródła zasilania.
Poczekaj, aż lampka PWR zaświeci się stale. Gdy lampka
PWR nie miga, urządzenie jest gotowe do użycia.
LEDs
On - Switch Ready
Green Blinking - Switch Starting
PWR
Off - Switch Off
DC 12V
On - 1000 Mbps connection ready
DC 12V
Green
Blinking - Data transmitting
Ports 1-8
On - 10/100 Mbps connection ready
LINK/ACT
Amber
Blinking - Data transmitting
Off - No Connection
On - 2.5 Gbps connection ready
Blue
Blinking - Data transmitting
1 12
Ports 9-10
On - 1000 Mbps connection ready
Green
10G 1000M Blinking - Data transmitting
(Left LED)
On - 100 Mbps connection ready
(Right LED)
Amber
Blinking - Data transmitting
Off - No Connection
On - 10 Gbps connection ready
Blue
10G NAS
Ports 11-12 Blinking - Data transmitting
On
- 1000 Mbps connection ready
(Left LED)
Green
Blinking - Data transmitting
Core
(Right LED)
Backbone
Off - No Connection
