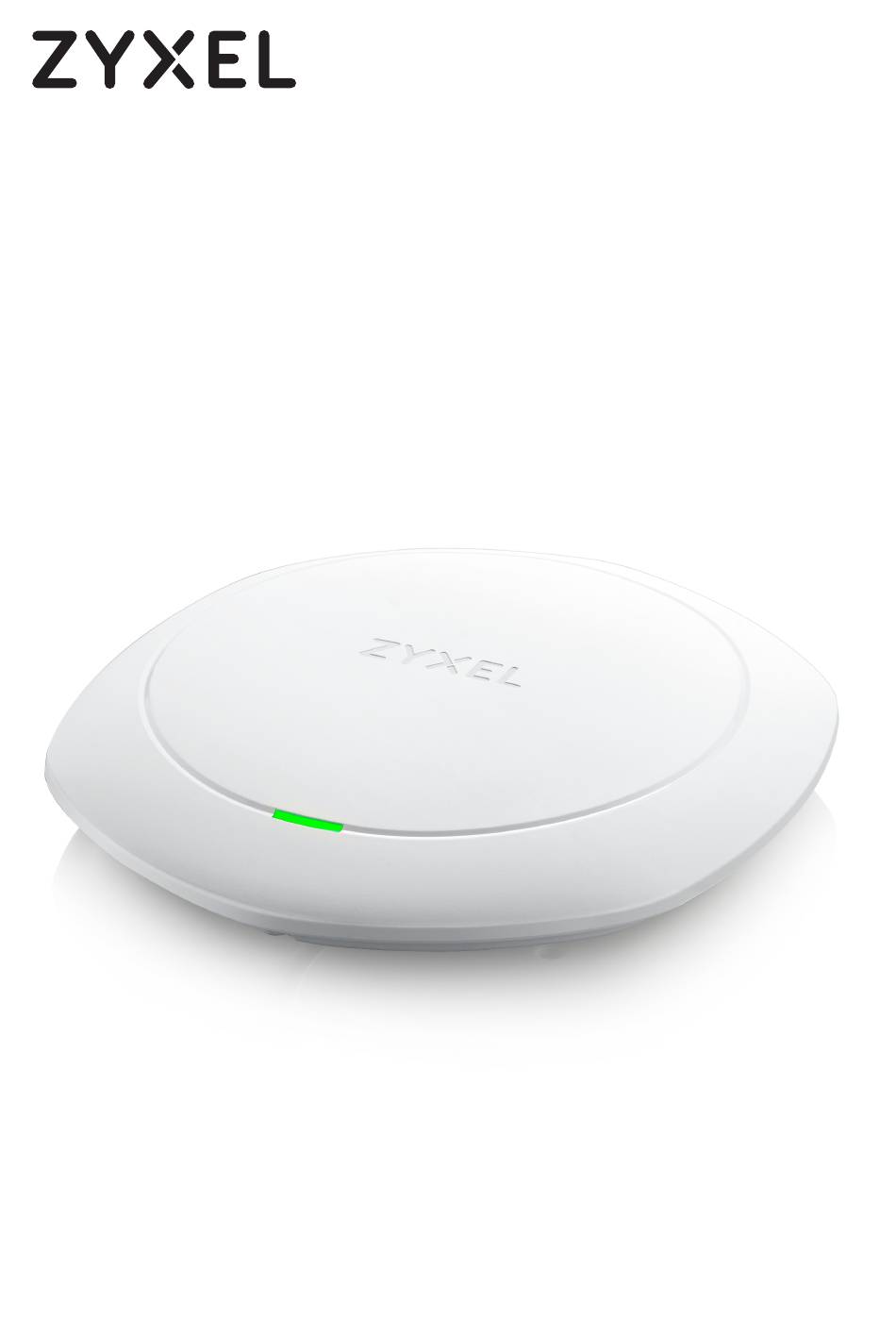

NWA1123-AC HD
802.11ac Dual-Radio Dual-Mount
PoE Access Point
Quick Start Guide
ENGLISH | DEUTSCH | ESPAÑOL | FRANÇAIS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NWA1123-AC HD and is the answer not in the manual?

Questions and answers

Related Manuals for ZyXEL Communications NWA1123-AC HD

Summary of Contents for ZyXEL Communications NWA1123-AC HD

  • Page 1 NWA1123-AC HD 802.11ac Dual-Radio Dual-Mount PoE Access Point Quick Start Guide ENGLISH | DEUTSCH | ESPAÑOL | FRANÇAIS...

  • Page 2: Hardware Installation

    Hardware Installation Wait until the LED steady bright blue PoE Injector PoE Switch Router Power Outlet...
  • Page 3 Connect the UPLINK/POE port to a router network through a PoE switch or a PoE injector (30W). Use the included power adaptor to connect the power socket to a power outlet. Verbinden Sie den UPLINK/POE Anschluss mit einem Router Netzwerk über einen PoE Switch oder einen PoE Injektor (30W).

  • Page 4: Cloud Management

    Cloud Management http://nebula.zyxel.com Login Sign In .com Email Password Submit http://nebula.zyxel.com ORGANIZATION If you create a new site we can help you configure it.
  • Page 5 Follow the steps below to manage the NWA1123-AC HD through the Zyxel cloud-based network management system. Note: Make sure the connected router has Internet access. Go to the Zyxel Nebula Control Center (NCC) website (http://nebula.zyxel.com). Click Login and you will be redirected to the myZyxel.com portal page.
  • Page 6 Use MAC address and serial number to add device http://nebula.zyxel.com Register by MAC address and serial number MAC address Serial Number UPLINK /POE LAN 1 S/N: XXXXXXXXXXXX RESET 12V DC CONSOLE LAN MAC: XXXXXXXXXX Code...
  • Page 7 Geben Sie die LAN MAC-Adresse und die Seriennummer (S/N) des NWA1123-AC HD (siehe Etikett auf dem Gerät) im NCC-Konfigurationsbildschirm ein. Introduzca la dirección MAC de la LAN del NWA1123-AC HD y el número de serie (S/N) (ver la etiqueta del dispositivo) en la pantalla de configuración del NCC.
  • Page 8 Use Nebula app to add device Nebula Mobile Option 1 Option 2 Web Configurator Label on the device UPLINK LAN 1 /POE NWA1123-AC HD 12V DC RESET CONSOLE Code Code Code Code...
  • Page 9 Download and open the Zyxel Nebula Mobile app. Log in with your myZyxel account. Select a site and scan the NWA1123-AC HD's QR code to add it to the site. (You can find the QR code in its web configurator dashboard or on a label on the device or its box manufactured after December 15, 2017.)

  • Page 10: Standalone Configuration

    Standalone Configuration Wireless connection Wireless Network Connection Zyxel XXXX http://1.1.1.1 (First time http://1.1.1.1 configuration only) NWA1123-AC HD User Name: admin User Name admin Login Password: 1234 Password 1234 (default) Login...
  • Page 11 Escriba el nombre de usuario predeterminado (admin) y la contraseña (1234). Haga clic en Login (Iniciar sesión). Si vous ne désirez pas gérer le NWA1123-AC HD via le NCC Zyxel, suivez les étapes ci-dessous pour configurer le NWA1123-AC HD (en mode autonome).
  • Page 12 Wired connection http://192.168.1.2 (First http://192.168.1.2 time configuration only) NWA1123-AC HD User Name: admin User Name admin Login Password: 1234 Password 1234 (default) Login...
  • Page 13 Use its DHCP-assigned IP or default static IP address "http://192.168.1.2" to access the web configurator. Make sure your computer IP address is in the same subnet as the NWA1123-AC HD's. Können Sie ihn mit einem Ethernetkabel an den LAN1-Anschluss des NWA1123-AC HD anschließen.
  • Page 14 Wizard setting Note 1 NWA1123-AC HD SSID (Wi-Fi Network Name): SSID: XXXXXX Secret: XXXXXX PSK (Wi-Fi Password): SSID Next Cancel Prev NWA1123-AC HD DASHBOARD Note 2 Interface Status Summary Current IP Address: Name IP Addr/Netmask X.X.X.X / X.X.X.X Note 1...
  • Page 15 The wizard appears automatically. Use the wizard to set up your NWA1123-AC HD. Note: It takes 1 to 2 minutes to apply your wizard changes. The power LED will blink red and green alternatively. The power and Wi-Fi LEDs then turn steady green when the system is ready. Check the Dashboard screen and note down the NWA1123-AC HD's IP address in case you need to access it's web configurator again.

  • Page 16: Wall / Ceiling Mounting

    Wall / Ceiling Mounting 1 c m 6 . 4...
  • Page 17 After the bracket is attached to the wall/ceiling, line up the UPLINK/POE port on the NWA1123-AC HD with the tab of the mounting bracket (B). Push the NWA1123-AC HD in and turn it to the right until it clicks into place.
  • Page 18 How to release the AP...
  • Page 19 Insert a thin flat tool (such as a flat screwdriver) to push down the AP lock. Turn the AP in a counterclockwise direction to release. Setzen Sie ein dünnes flaches Werkzeug (wie einen flachen Schraubenzieher) ein, um die AP-Sperre nach unten zu drücken. Drehen Sie den AP gegen den Uhrzeigersinn, um ihn zu lösen.

  • Page 20: Support Information

    EU Importer Zyxel Communications A/S Generatorvej 8D, 2860 Søborg, Denmark. http://www.zyxel.dk US Importer Zyxel Communications, Inc 1130 North Miller Street Anaheim, CA 92806-2001 http://www.us.zyxel.com Copyright © 2017 Zyxel Communications Corp. All Rights Reserved.
