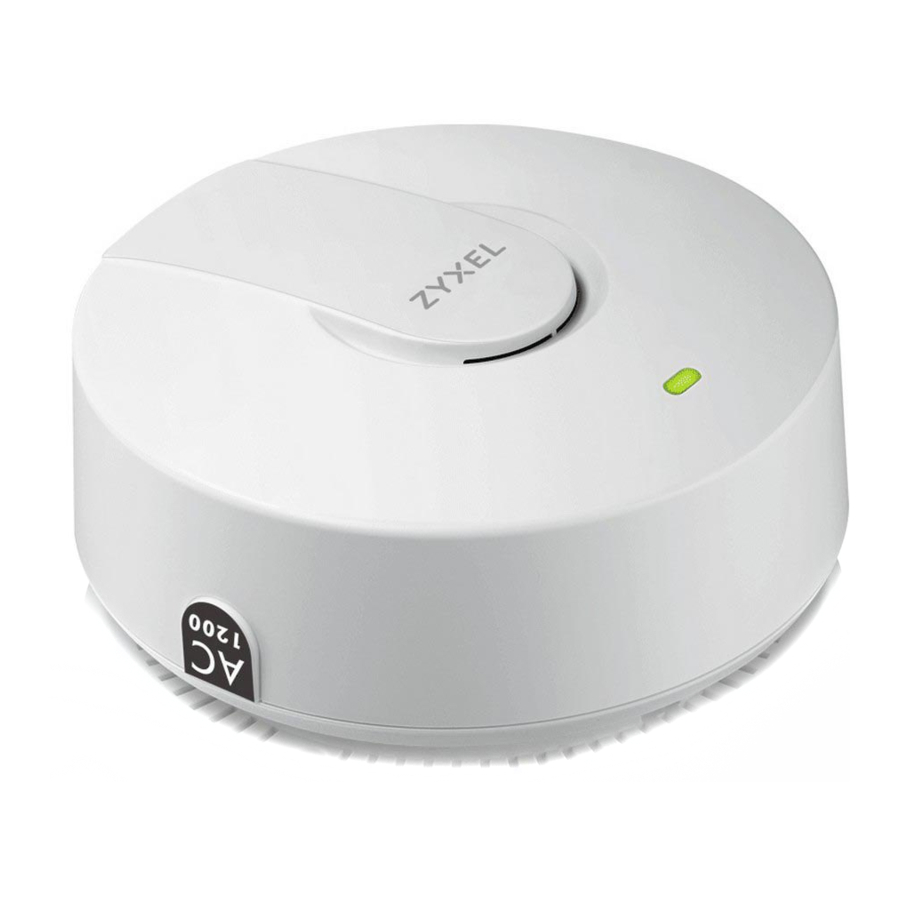

Zyxel NWA1123-ACv2 - 802.11ac Dual-Radio Dual-Mount PoE Access Point Quick Start Guide

Also See for NWA1123-ACv2:

Table of Contents

Hardware Installation

Connect the UPLINK/POE port to a router network (through a PoE switch or a PoE injector (15.4W)).
Connect to an appropriate power source. You do not need to do this if you are using PoE to provide power to your NAP102 via an 8-pin CAT 5 Ethernet cable.

From a Wi-Fi enabled computer, search for the NWA1123-ACv2's default Wi-Fi network name (Zyxel) and connect to it.
Open your web browser and enter "http://1.1.1.1" for initial configuration. Enter the default user name (admin) and password (1234). Click Login.

Note: If your computer doesn't have a Wi-Fi adapter, use an Ethernet cable to connect your computer to the NWA1123-ACv2 or the router. Use its DHCP-assigned IP or default static IP address (192.168.1.2) to access the web configurator. Make sure your computer IP address is in the same subnet as the NWA1123-ACv2's.

The wizard appears automatically. Use the wizard to set up your NWA1123-ACv2.

Note: It takes 1 to 2 minutes to apply your wizard changes. The system LED will blink red and green alternatively. The LED then turns steady green when the system is ready. Check the Dashboard screen and note down the NWA1123-ACv2's IP address in case you need to access it's web configurator again.
Note: The 1.1.1.1 is for initial setup only. It is not usable after the NWA1123-ACv2 is configured.
Use the NWA1123-ACv2's new wireless settings (SSID and key) to re-connect to the NWA1123-ACv2's Wi-Fi network for Internet access if you change them in the wizard.

Drill two holds for the wall plugs with two self-tapping screws (Diameter: 3mm).
Screw the mounting bracket on the wall/ceiling.
Attach the device to the mounting bracket by rotating it 12 degrees clockwisely until it clicks into place.
