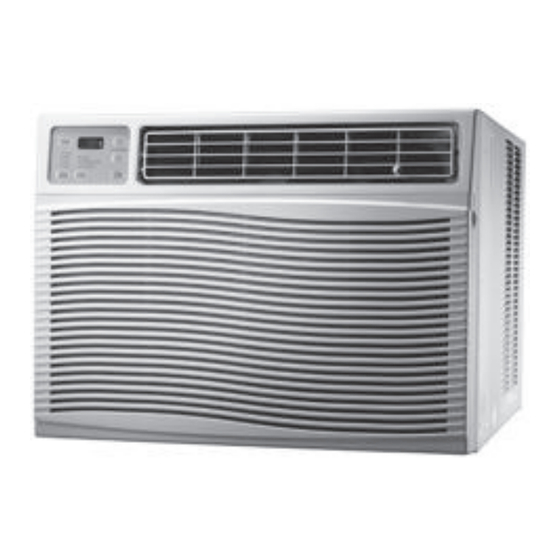

This INSTALLATION AND OPERATION MANUAL explains the proper use of your new Sharp Air Conditioner.
Read these instructions carefully before installing or operating your air conditioner. The INSTALLATION AND
OPERATION MANUAL should be kept in a safe place for handy reference.
FOR YOUR PROTECTION ...............................
CONSUMER LIMITED WARRANTY ................
INSTALLATION INSTRUCTIONS
PRECAUTIONS ................................................
USING YOUR AIR CONDITIONER .................. 11
CLEANING AND MAINTENANCE ................... 16
BEFORE CALLING FOR SERVICE ................. 17
15%
AF-Q60VX
AF-Q80VX
CHECK WINDOW AREA ..............................
LOCATION....................................................
ACCESSORIES ............................................
SUGGESTED TOOLS ..................................
INSTALLATION.............................................
2
3
4
4
5
5
6
9
AF-Q60
VX AF-Q80VX
Advertisement
Table of Contents
Related Manuals for Sharp AF-Q60VX
Summary of Contents for Sharp AF-Q60VX
- Page 1 CLEANING AND MAINTENANCE ....16 BEFORE CALLING FOR SERVICE ....17 This INSTALLATION AND OPERATION MANUAL explains the proper use of your new Sharp Air Conditioner. Read these instructions carefully before installing or operating your air conditioner. The INSTALLATION AND OPERATION MANUAL should be kept in a safe place for handy reference.
- Page 3 AF-Q60VX AF-Q80VX...
- Page 4 must be 13 " (337mm)
- Page 5 Window sash seal Top mounting rail Foam top window gasket Right accordion panel Left accordion panel Top mounting rail seal strip Window locking Type A (4) Type B (6) bracket (1) Remote Control...
- Page 6 Use protective material to prevent damage to the surface. FIG. 1 holes Secure the top rail to the unit with 4 Type A Screws as shown in in FIG 2. FIG. 2...
- Page 7 Now that you have installed the top rail, you can now install the accordion panels on each side. flexible screen upper guide rail A. Place the air conditioner on a hard flat surface. B. Locate the accordion panels in the box. C.
- Page 8 Use 5 Type B screws to secure the frame Window frame of the flexible screen to the window frame and sash. windowsill Plastic window To secure the sash in place, attaché the right angle window lock with a Type B screw as shown.
-
Page 11: Using Your Air Conditioner
USING YOUR AIR CONDITIONER Electronic Control Panel & Remote Control CONTROL PANEL NOTE: This display always shows the room temperature in Fan Mode except when setting the Set temperature or the Timer Light indicates the unit is in the temperature or delay time Set mode. - Page 12 USING YOUR AIR CONDITIONER Light indicates the unit is in the temperature or delay time Set mode. Temp Time Filter check Cool Auto Energy Saver High Timer indicatorfan Fan Only Power Mode Speed light will turn on while setting. TIMER button on the unit or remote control. The timer can be set in 0.5 hour increments •...
-
Page 13: Remote Control
USING YOUR AIR CONDITIONER Remote Control 1. ON/OFF - Press the ON/OFF button to turn the A/C on or off. When the unit is turned off, the Timer and sleep functions will be cancelled. The set tempera- ture will be saved. 2. - Page 14 USING YOUR AIR CONDITIONER 8. TIMER - Press the TIMER button when the unit is off to set up the Auto-on timer. The Auto-on time can be set between .5 - 24 hours. The icons “T-ON” and “H” will flash for 5 seconds. Start selecting the time using the “+”...
- Page 15 USING YOUR AIR CONDITIONER • Freezing Conditions: This is a cooling only air used with the room is unoccupied. NOTE: conditioner. It is not designed for freezing The fan may continue to run for a short time outdoor conditions. It must not be used in after the compressor cycles off.
