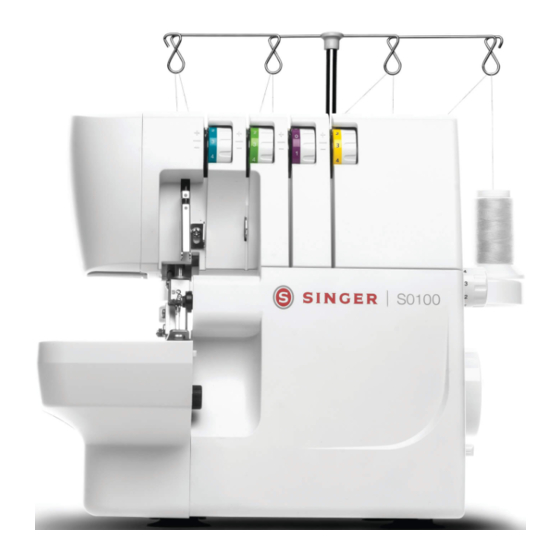

Singer S0100 Instruction Manual

Singer S0100 Instruction Manual

Hide thumbs Also See for S0100:

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
S0100 / S0105

Advertisement

loading
Need help?

Need help?

Do you have a question about the S0100 and is the answer not in the manual?

Questions and answers

Related Manuals for Singer S0100

Summary of Contents for Singer S0100

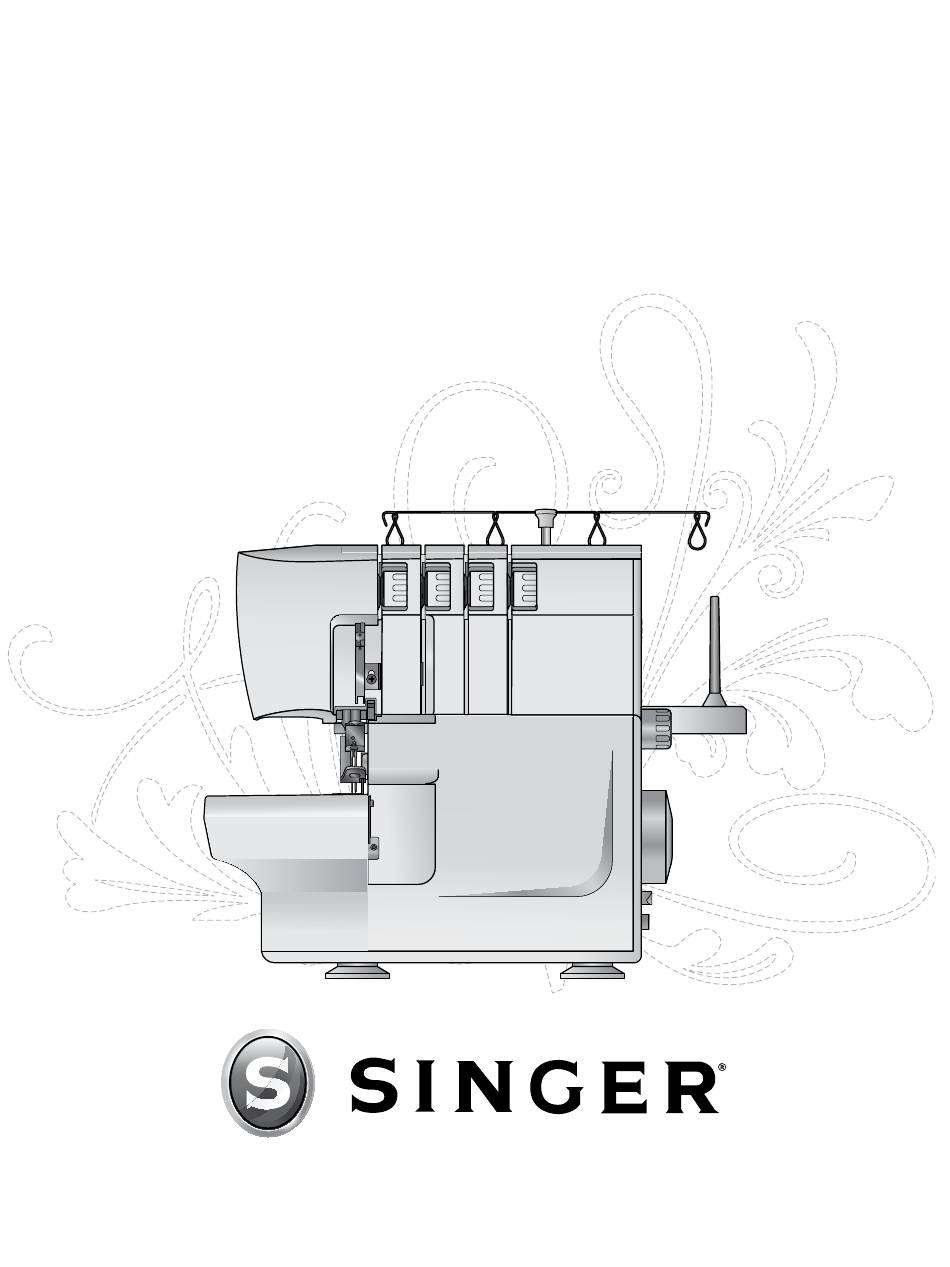

  • Page 1 INSTRUCTION MANUAL S0100 / S0105...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic safety precautions should always be followed, including the following: Read all instructions before using this household sewing machine. Keep the instructions at a suitable place close to the machine. Make sure to hand them over if the machine is given to a third party.
  • Page 3 • Switch the sewing machine off (“0”) when making any adjustment in the needle area, such as threading needle, changing needle, threading bobbin, or changing presser foot, etc. • Never drop or insert any object into any opening. • Do not use outdoors. • Do not operate where aerosol (spray) products are being used or where oxygen is being administrated. • To disconnect, turn all controls to the off (“0”) position, then remove plug from outlet. • Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. •...

  • Page 4: Table Of Contents

    Table of contents Cleaning ................21 Parts of the machine............5 Oiling ................21 Accessories ..............6 Replacing the stationary cutter ........22 Connecting the foot control and the power supply ..6 Storage ................22 Setting up the telescopic thread stand ......7 Servicing ................22 Opening and closing the front cover ........7 Trouble shooting ............23 Removing and replacing the flat bed extension....7 Stitch table ..............24...

  • Page 5: Parts Of The Machine

    Parts of the machine 1. Presser foot pressure adjustment 2. Left needle thread tension dial (blue) 3. Right needle thread tension dial (green) 4. Upper looper thread tension dial (purple) 5. Lower looper thread tension dial (yellow) 6. Handle 7. Presser foot lifter 8. Stitch plate 9. Flat bed extension 10. Front cover 11. Differential feed adjusting lever 12. Power & light switch 13. Hand wheel 19. Presser foot 14. Stitch length dial 20. Movable upper cutter 15. Spool stand...

  • Page 6: Accessories

    Accessories 1. 2-thread converter 2. Needle pack including two needles, size #14/90. Two needles, size #14/90, are in the machine on delivery. 3. Screwdriver 4. Tweezers Connecting the foot control and the power supply Foot control to use with this machine: - Type GTC/HKT 72C for 220-240V manufactured by DANYANG GUOTI MOTOR & APPLIANCE CO., LTD / ZHEJIANG HUAXING ELECTRIC MOTOR CO., LTD.

  • Page 7: Setting Up The Telescopic Thread Stand

    Setting up the telescopic thread stand Extend the telescopic thread stand to its full height, then turn until it clicks into place. Place the thread spools or cones over the cone holders on the spool pin. If the machine is already threaded, straighten the threads to prevent tangling.

  • Page 8: Presser Foot Lift

    Presser foot lift Raise the presser foot with the presser foot lift lever (A) at the back of the machine. Changing the needles Turn off the main power switch and unplug the machine. 1. Turn the hand wheel toward you until the needles are at the highest position. 2. Loosen, but do not remove the left (B) and/or right (A) needle clamp screw with the small screwdriver while you are holding the needles.

  • Page 9: Disengage The Movable Upper Cutter

    Disengage the movable upper cutter Place the movable upper cutter in nonworking position 1. Turn the hand wheel toward you until the upper cutter is raised to the highest position. 2. Open the front cover. 3. Push the movable cutter holder to the right as far as it will 4.

  • Page 10: Threading The Machine

    Threading the machine A color coded diagram is located inside the front cover for quick reference. When threading the machine, thread only in the following order: 1. Upper looper threading - Purple 2. Lower looper threading - Yellow 3. Right needle threading - Green 4.

  • Page 11: Threading The Upper Looper (Purple)

    Threading the upper looper (purple) 1. Pass the thread from back to front through the thread guide on the thread stand (1). 2. Pull the thread from left to right under the thread guide at the back on the top cover (2). Use the tweezers to make the threading easier. 3. While holding the thread with both hands, pass it between the tension discs and pull it down to make certain it is properly placed between the tension discs (3).

  • Page 12: Threading The Lower Looper (Yellow)

    Threading the lower looper (yellow) 1. Pass the thread from back to front through the thread guide on the thread stand (1). 2. Pull the thread from left to right under the thread guide on the back of the top cover (2). Use the tweezers to make the threading easier. 3. While holding the thread with both hands, pass it between the tension discs and pull it down to make certain it is properly placed between the tension discs (3).

  • Page 13: Threading The Right Needle (Green)

    Threading the right needle (green) 1. Pass the thread from back to front through the thread guide on the thread stand (1). 2. Pull the thread from left to right under the thread guide on the back of the top cover (2). Use the tweezers to make the threading easier. 3. While holding the thread with both hands, pass it between the tension discs and pull it down to make certain it is properly placed between the tension discs (3).

  • Page 14: Changing Thread

    Changing thread The following is an easy way to change threads: 1. Cut the thread in use near the spool, behind the guides on the telescopic thread stand. 2. Remove the thread spool and place the new thread on the spool pin.

  • Page 15: Thread Tension Settings

    Thread tension settings Right side Upper looper thread Set the thread tension to suit the type of fabric and thread used. As the number on the thread tension discs increases, the thread Lower looper thread tension becomes tighter. Lower looper thread and upper looper thread should be well balanced with the same tension (both looper threads should cross at the edge of the fabrics). Needle threads should not be too loose or too tight, but equally balanced tension. upper looper right side Right needle thread wrong side...

  • Page 16: Differential Feed Adjustment

    Differential feed adjustment The differential feed system consists of two sets of feed teeth arranged one behind the other. Both feed teeth work independently of each other to give perfect results when sewing on speciality fabrics. When the amount of feed by the front feed teeth is changed in relation to the feed by the rear feed teeth it will “stretch” or “gather” the fabric.

  • Page 17: Presser Foot Pressure Adjustment

    Presser foot pressure adjustment The presser foot pressure is pre-set for sewing based on normal conditions. Adjustment might in some conditions be necessary. Increase or decrease the pressure until you are satisfied with the result. Always test sew on a sample of your fabric before sewing on your garment. Less pressure: Decrease the pressure by turning the adjustment tool in counter-clockwise direction.

  • Page 18: Stitch Finger Lever Setting

    Stitch finger lever setting The stitch finger lever should be set to “S” for all standard overlock sewing. To sew rolled edge you need to retract the stitch finger by setting the stitch finger lever to “R”. When moving the stitch finger, be sure to push the lever as far as it will go in each direction. Rolled edge sewing The rolled edge stitch is appropriate for light weight fabrics such as lawn, voile, organdy, crepe, etc. The rolled edge is achieved by adjusting the thread tension to make the fabric edge roll under the fabric while overlocking.

  • Page 19: Flatlock Sewing

    Flatlock sewing A Flatlock Stitch is made by adjusting the tension of the 2- or 3-thread overlock stitch, sewing the seam and pulling the fabric apart to flatten the seam. The tensions must be adjusted correctly for the fabric to pull flat. The Flatlock Stitch can be used both as a decorative construction stitch, sewing two pieces together (Standard Flatlock Stitch), or for ornamentation only on one piece of fabric (Ornamental Flatlock Stitch). There are two ways to sew a Flatlock Stitch. Either with the wrong sides of the fabric together to create a decorative look, or with the right sides together, to create a Ladder Stitch. 2-thread flatlock stitch 3-thread flatlock stitch Standard Flatlock Stitch Standard flatlock stitch Ornamental flatlock stitch 1.

  • Page 20: Corded Overlock

    Corded overlock Corded overlock can be used to strengthen stitches when joining elastic fabrics such as knits. Cording prevents knit fabrics from stretching and also stabilize the seams. 1. Insert the cord through the hole in the front of the foot. 2.

  • Page 21: Machine Maintenance

    Machine maintenance An overlock requires more frequent maintenance than a conventional machine for two reasons: A lot of lint is produced when the cutters are cutting the the fabric. An overlock runs at a very high speed and needs to be oiled frequently to lubricate the internal working parts. Oiling Turn off the main power switch and unplug the machine. To keep the machine running smoothly and quietly the moving parts, pointed out in the picture, must be lubricated often.

  • Page 22: Replacing The Stationary Cutter

    Replacing the stationary cutter Turn off the main power switch and unplug the machine. The stationary cutter should be changed when it becomes dull. The stationary cutter can be replaced according to the following directions. If you are having any difficulties, consult your dealer to make the necessary adjustments. 1. Open the front cover and set the movable upper cutter (1) in nonworking position.

  • Page 23: Trouble Shooting

    Trouble shooting Problem Solution Page Fabric does not feed well - Lengthen stitch length. - Increase presser foot pressure for heavy weight fabric. - Decrease presser foot pressure for light weight fabric. - Check the differential feed. Needle breaks - Insert needle correctly. - Do not pull fabric while sewing. - Tighten needle set screw.

  • Page 24: Stitch Table

    Stitch table Explanation of the fabric symbols Woven light Stretch light Please note: Chiffon, voil, organza, charmeuse, nylon, tricot, The settings shown in this table are our recommendations batiste, silk, etc. single knit jerseys, etc. based on normal conditions. It may be necessary to adjust Woven medium Stretch medium the thread tension according to the stitch, type of fabric...
  • Page 25 Combination Needle Stitch Stitch Differen- Stitch 2-thread Thread tension position length width tial feed finger converter Stitch Fabric 2-thread overlock, wrap, narrow Right R(3.5) 2-thread rolled edge Right Not recommended Right Not recommended 2-thread narrow edge Right Not recommended Right Not recommended 2-thread flatlock stitch Left...
  • Page 26 Combination Needle Stitch Stitch Differen- Stitch 2-thread Thread tension position length width tial feed finger converter Stitch Fabric 3-thread overlock stitch, wide Left R(3.5) 3-thread overlock stitch, narrow Right R(3.5) 3-thread flatlock stitch, narrow Right R(3.5) Not recommended Right R(3.5) Not recommended 3-thread stretch overlock...
  • Page 27 Combination Needle Stitch Stitch Differen- Stitch 2-thread Thread tension position length width tial feed finger converter Stitch Fabric 3-thread rolled edge Right Not recommended Right 3.0 Not recommended 3-thread narrow edge Right Not recommended Right Not recommended 3-thread flatlock stitch, wide Left R(3.5)

  • Page 28: Fabric / Needle / Thread Table

    Left needle: 5.2-6.7 mm Overlock stitch width Right needle: 3.0-4.5 mm Rolled hem: 1.5 mm 27 mm Needle bar stroke 4.5 mm Presser foot rise Needles SINGER Overlock Needles Style 2022, Size: #14/90 Number of needles 2, 3, 4 Number of threads LED light Type of lamp Machine dimensions Width...
  • Page 29 We reserve the right to change the machine equipment and the assortment of accessories without prior notice, or make modifications to the performance or design. Such modifications, however, will always be to the benefit of the user and the product. INTELLECTUAL PROPERTY SINGER, and the Cameo “S” Design, are exclusive trademarks of The Singer Company Limited S.à.r.l. or its Affiliates. Please note that on disposal, this product must be safely recycled in ac- cordance with relevant National legislation relating to electrical/electron- ic products. Do not dispose of electrical appliances as unsorted muncipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available.
  • Page 30 4710836-26D • English • ©2020 The Singer Company Limited S.à.r.l. or its Affiliates. • All rights reserved • Printed on environment friendly paper...
