- Page 1 INSTRUCTION MANUAL S14–77 • S14–78 • S14–79 • S0230 •...
- Page 2 This household sewing machine is designed to comply with IEC/EN 60335-2-28 and UL1594. IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic safety precautions should always be followed, including the following: Read all instructions before using this household sewing machine. Keep the instructions at a suitable place close to the machine.
- Page 3 • This sewing machine is provided with double insulation. Use only identical replacement parts. See instructions for Servicing of Double-Insulated Appliances. SAVE THESE INSTRUCTIONS FOR EUROPE ONLY: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 4: Table Of Contents
TABLE OF CONTENTS ABOUT YOUR MACHINE........1 Replacing the Lower Cutter ........23 Parts of the Machine ............1 Replacing the Upper Cutter ........24 Storage..............24 Front and Side of Machine ........... 1 Inside of Machine............2 Servicing..............24 Accessories ..............2 Trouble Shooting ............24 Connecting the Foot Control and the Power Supply..3 Technical Specifications ..........26 Setting Up the Telescopic Thread Stand ......3... -
Page 5: About Your Machine

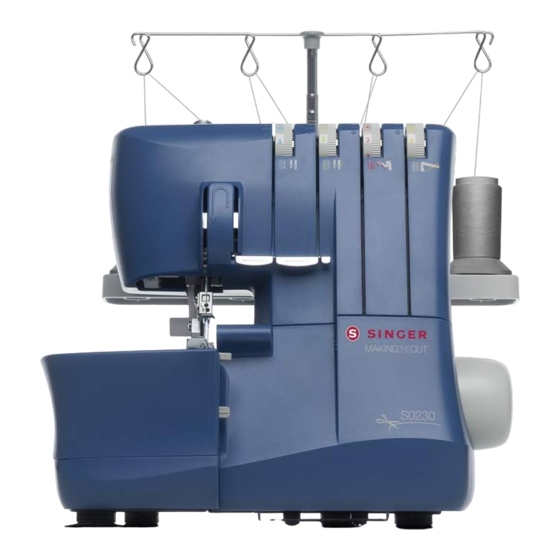

ABOUT YOUR MACHINE Parts of the Machine Front and Side of Machine 1. Telescopic thread stand — helps maintain the flow of the 13 14 15 thread during sewing (page 3) 2. Spool stand and spool pin — holds the thread spools 3. -
Page 6: Inside Of Machine
8. Lower looper thread guides — help maintain the flow of the thread during sewing Accessories 1. Needle pack including two needles, size #14/90 (SINGER® Overlock needles #2022) 2. Screwdriver 3. Tweezers 4. Allen key to change needles 5. 2-thread overlock converter 6. -
Page 7: Connecting The Foot Control And The Power Supply
Connecting the Foot Control and the Power Supply Among the accessories you will find the power cord and the foot control. Note: Consult a qualified electrician if you are in doubt about how to connect the machine to the power source. Unplug the power cord when the machine is not in use. -
Page 8: Open And Close The Front Cover
Open and Close the Front Cover Open the Front Cover First push the cover to the right as far as it will go and then pull it downward toward you. Close the Front Cover First pull the cover upward and then slide it to the left until it locks. -
Page 9: Changing The Needles
Changing the Needles Turn off the main power switch and unplug the machine. 1. Turn the hand wheel toward you until the needles are at the highest position. 2. Loosen, but do not remove the left (B) and/or right (A) needle clamp screw with the allen key while you are holding the needles. -
Page 10: Deactivate The Upper Cutter
Deactivate the Upper Cutter • Turn the hand wheel toward you until the upper cutter is in its lowest position. • Turn off the upper cutter by switching the upper cutter switch to non-cutting position (A). Reactivate the Upper Cutter •... -
Page 11: Getting Ready To Sew
(denim, jersey, tweed, etc.) Needles Needles Needles size #12/80 needles, suitable for size #14/90 needles, suitable for size #14/90 needles, suitable for overlock machines (SINGER® overlock machines (SINGER® overlock machines (SINGER® Overlock needles #2022) Overlock needles #2022) Overlock needles #2022) Thread Thread suitable for overlock machines Getting Ready to Sew –... -
Page 12: Threading The Upper Looper (Red)
Threading the Upper Looper (Red) When threading the upper looper, follow the thread path marked with a red dot. • Open the front cover. Raise the needle to highest position by turning the hand wheel toward you. Raise the presser foot. -
Page 13: Threading The Lower Looper (Yellow)
Threading the Lower Looper (Yellow) When threading the lower looper, follow the thread path marked with a yellow dot. • Pass the thread from back to front through the thread guide on the thread stand (1). Use the tweezers to make the threading easier. -
Page 14: Threading The Left Needle (Blue)
Threading the Left Needle (Blue) When threading the left needle, follow the thread path marked with a blue dot. • Pass the thread from back to front through the thread guide on the thread stand (1). Use the tweezers to make the threading easier. -
Page 15: Thread Tension Settings
Thread Tension Settings Set the thread tension to suit the type of fabric and thread used. As the number on the thread tension discs increases, the thread tension becomes tighter. See Stitch Overview, page 15 for thread tension recommendations for each stitch. Color Explanation Sheet Right side of fabric Right needle thread... -
Page 16: Differential Feed Adjustment
Differential Feed Adjustment The differential feed system consists of two sets of feed teeth arranged one behind the other (A). Both feed teeth work independently of each other to provide good results when sewing on speciality fabrics. When the amount of feed by the front feed teeth is changed in relation to the feed by the rear feed teeth it will "stretch"... -
Page 17: Presser Foot Pressure Adjustment
Presser Foot Pressure Adjustment The presser foot pressure is pre-set for sewing on medium weight fabric. When sewing in different fabric weights, adjustment might be needed. Generally, decrease the presser foot pressure when sewing in light weight fabric and increase it when sewing in heavy weight fabrics. -
Page 18: Stitch Length Settings
Stitch Length Settings The stitch length dial should be set to "3" for most sewing. Adjust the stitch length to 4mm when sewing on heavy weight fabrics. Adjust the stitch length to 2mm when sewing on light weight fabrics. Stitch Finger Lever Setting The stitch finger lever should be set to "N"... -
Page 19: Sewing
SEWING On your overlock machine, different stitches are obtained by combining different needle positions, threading methods, tension settings, and the use of the 2-thread overlock converter. See Getting Ready to Sew, page 7, for references on how to set your machine. Stitch Overview The settings shown in the table below are our recommendations based on normal conditions. -
Page 20: 3-Thread Overlock, Wide (And Narrow)
3–Thread Overlock, Wide (and Narrow) For sewing two layers of stretchy fabric or overcasting a single layer of light to medium fabric. Use heavier threads in the loopers to create decorative edges. Note: Use the right needle instead for a narrow stitch. Recommended thread tension settings within brackets in the chart. Thread Tension Stitch/Fabric (—) -
Page 21: 3-Thread Rolled Edge
3–Thread Rolled Edge For edging lightweight fabrics. It gives a nice finish on silky scarves, pillow ruffles and napkins. For a beautiful rolled edge, thread the loopers with a decorative lightweight thread, such as 40 weight rayon, for a beautiful satin edge and the needle and lower looper with lightweight regular thread. -
Page 22: 2-Thread Rolled Edge
2–Thread Rolled Edge For edging lightweight fabrics. It gives a nice finish on silky scarves, pillow ruffles and napkins. Thread the looper with a decorative lightweight thread, such as 40 weight rayon for a beautiful satin edge (2-thread converter required). Note: Not recommended for heavy weight fabrics. -
Page 23: Start Sewing
Start Sewing 1. When the machine is completely threaded, close the front cover and bring all of the threads over the stitch plate and slightly to the left under the presser foot. 2. Ensure that the upper blade moves against the lower blade correctly by turning the hand wheel slowly toward you. -
Page 24: Corded Overlock
Corded Overlock Corded overlock can be used to strengthen stitches when joining elastic fabrics such as knits. Cording prevents knit fabrics from stretching and also stabilizes the seams. 1. Insert the cord through the hole in the front of the foot. 2. -
Page 25: Rolled Edge Sewing
Rolled Edge Sewing The rolled edge stitch is appropriate for light weight fabrics such as lawn, voile, organdy, crepe, etc. The rolled edge is achieved by adjusting the thread tension to make the fabric edge roll under the fabric while overlocking. Adjust the thread tension to change the degree of rolling. -
Page 26: Flatlock Sewing
Flatlock Sewing A Flatlock (A) is made by adjusting the tension of the 3-thread overlock stitch, sewing the seam and pulling the fabrics apart to flatten the seam. The tensions must be adjusted correctly for the fabric to pull flat properly. A Flatlock can be used both as a decorative construction stitch, sewing two pieces together (Standard Flatlock), or for decoration only on one piece of fabric (Decorative Flatlock). -
Page 27: Replacing The Lower Cutter
MACHINE MAINTENANCE An overlock requires more frequent maintenance than a conventional sewing machine for two reasons: • A lot of lint is produced when the cutters are cutting the fabric. • An overlock runs at a very high speed and needs to be oiled frequently to lubricate the internal working parts. -
Page 28: Replacing The Upper Cutter
Replacing the Upper Cutter Turn off the main power switch and unplug the machine. The upper cutter should be changed when it becomes blunt. Change it by following the below instructions. If you are having any difficulties, consult your service agent to make the necessary adjustments. - Page 29 Possible Cause: Needle may not be the correct size for the fabric being sewn. Solution: Use a needle size that is compatible for the fabric (page 7). Thread Breaks Possible Cause: Machine may not be threaded correctly; threads threaded in the incorrect sequence. Solution: Check that machine is threaded in correct order (page 7).
-
Page 30: Technical Specifications
Sewing Speed Stitch Length Needle Bar Stroke Maximum 1200 ± 100 rpm 1–4mm 25 ± 3mm Needles Stitch Width Presser Foot Rise SINGER® EL #2022 #90/14 2.3–7mm 5–7mm Number of Needles Differential Feed Ratio Weight 1–2 0.7–2.0 6.3kg Number of Threads... - Page 31 INTELLECTUAL PROPERTY SINGER, the Cameo “S” Design, and Singer is Sewing Made Easy are exclusive trademarks of The Singer Company Limited S.à.r.l. or its Affiliates. Please note that on disposal, this product must be safely recycled in accordance with relevant National legislation relating to electrical/electronic products.
- Page 32 4710291 -27D · English · © 2017 The Singer Company Limited S.à.r.l. or its Affiliates. · All rights reserved · Printed in Vietnam on environmentally friendly paper.
