SUREN CL-1306 Specification And Operation Manual

CL-1306
Operation and Specification
PIR Occupancy Sensor
CL-1306 is a dual-element infrared sensor. Mounted at a height of 2.4m, this
sensor detects people moving within 6m diameter of a full circular coverage
area.
CL-1306 can be surface mounted or flush mounted for an attractive, un-
obstructive appearance. The sensor is fitted with a high-capacity relay that is
capable of driving a wide range of load types, including lighting or HVAC
devices.
Operation
Initialization:
The sensor becomes operational 30 seconds after power is supplied.
Detection and Activation:
When a person enters a room, the sensor detects major body motion and
turns the light on. The light is kept on even as smaller body movement is
detected. The sensor's Detection Sequence Logic (DSL) minimizes false
triggering by adjusting detection sensitivity based upon sequence of
occupancy events. The Sunset Sensor provides additional control such that
lighting is not activated when there is sufficient brightness in the area.
De-Activation (Normal Occupancy Mode):
When motion is no longer detected, the sensor turns the light off after a set
time delay (Delayed-Off Time).
Walk-thru Mode:
The walk-through feature is useful in areas that are momentarily occupied,
e.g. hallway. If the sensor detects no movement for more than 10 seconds
light was turned off, it will apply a Delayed-Off Time of 2.5 minutes. If the
sensor detects movement less than 10 seconds after light was turned off, it
will next turn the light off based upon the set time delay.
Installation
Caution: This product must be installed by a qualified electrician. The casing
and internal components of the device should not be removed or modified.
Exposure of internal components and wiring may cause electric shock and
result in death.
Accessories:
Brackets, screws and wall plugs for surface mount in solid ceiling
·
Spring clips for flush mount in drop ceiling
·
Infrared zone mask
·
Location:
Determine the number of sensors required to cover the floor area
·
Install the sensor near work area where walk-path cuts across radial lines,
·
not towards the sensor
Do not install the sensor near ventilation outlet
·
Procedure:
Prepare sensor mount. See illustration in the next page
·
Connect the sensor as shown in the wiring diagram. Make sure power
·
supply is turned off
Make sure there are no wiring exposed before mounting the sensor
·
Mount the sensor and turn on the power supply
·
Open the cover, review settings and change if necessary. See Settings
·
section
Initiate test mode, replace the cover and conduct walk-test
·
Walk-Test:
Toggle dip switch B3 (Off-On-Off) to enter test mode. If B3 is already in the
·
On position, moving it to the Off position will also activate test mode
Amber LED will flash once every second when the sensor is in test mode
·
During this time, the sensor will turn the light off after 5 seconds if there
·
are no movement
Test movement at entry point, walk path and occupancy area
·
Sensor will exit test mode after 15 minutes
·
LED Indicator:
LED indicator can be enabled or disabled by dip switch B2
·
Recommended for troubleshooting
·
Red LED indicates motion detected by infrared sensor
·
©2011 SUREN Systems, Ltd.. All rights reserved. SUREN™.

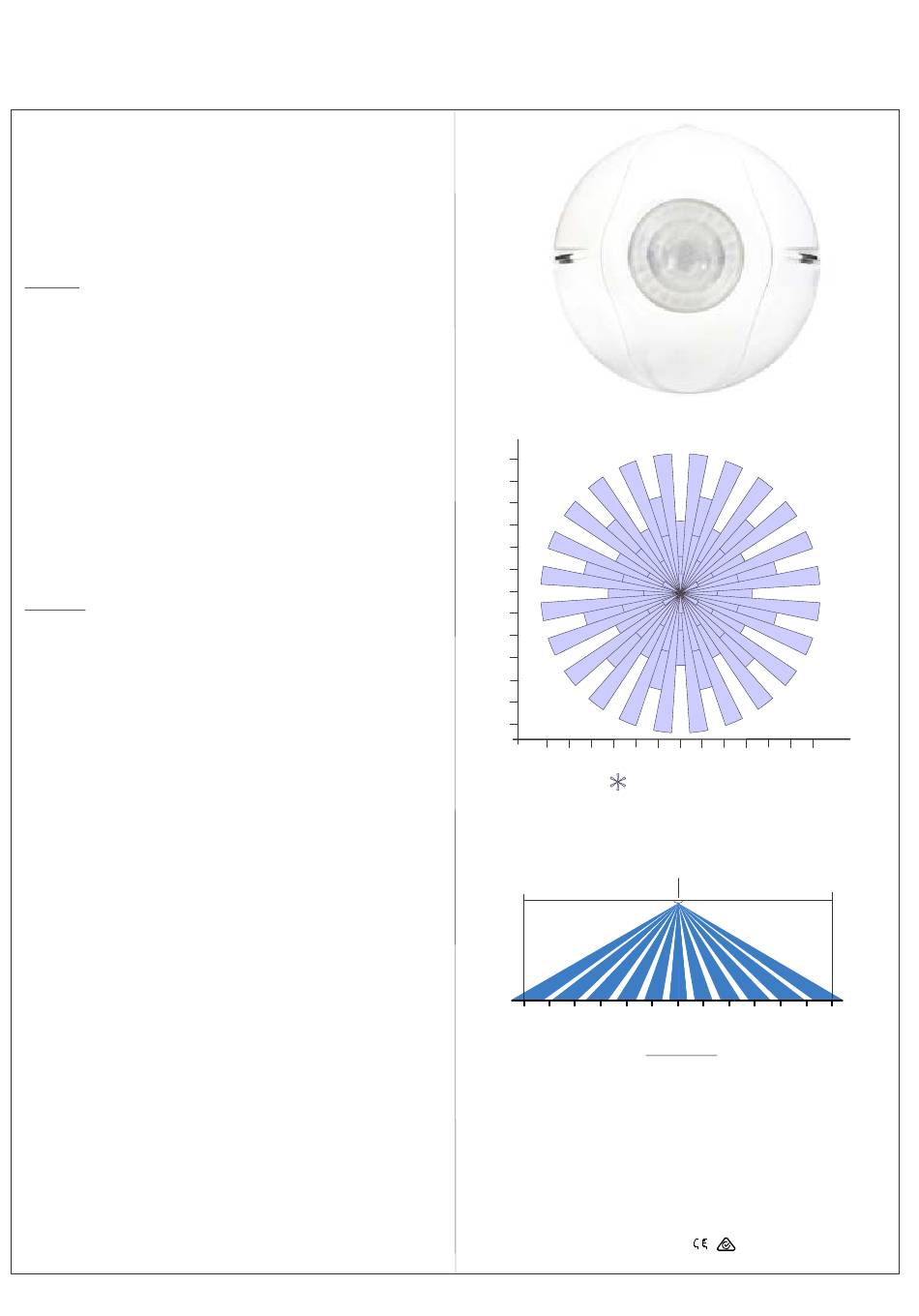

Detection Area:
m
3
2
1
0
1
2
3
3
3
Power Supply:
85 - 277 V AC
Power Consumption:
1.87 W
Power Output:
85 - 277 V AC, 5 A
PIR Sensor:
Pyroelectric,2-element
Housing Material:
High-impact ABS
w w w . s u r e n s y s t e m s . c o m
SUREN
Top view
2 1 0 1
PIR Optical View Pattern
Side view
Detection range
at 2.4m height
0 1
2 1
Specification
Dimension:
110mm Diameter x 56 mm
Height
Operating Temperature
Range:
o o
-40 to 55 C
RF Immunity:
20 V/m 10-1000 Mhz; 10 V/m
1-2 GHz
Approvals:
SUREN Part no.: N-ML00-0071-02-1 Rev.1
m
3
2
m
3
2
Printed in China
