SUREN CP-1308 Manual

CP-1308
Operation and Specification
T M
Patented HDIR Presence Sensor
CP-1308 is a motion sensor with SUREN's proprietary 8-element pyros and
multi-segment lens array. Mounted at a height of 2.4m, this sensor provides
full circular 8m diameter detection for minor motion, e.g. hand movement of
people in that area.
CP-1308 can be surface mounted or flush mounted for an attractive, un-
obstructive appearance. The sensor is fitted with a high-capacity relay that is
capable of driving a wide range of load types, including lighting or HVAC
devices.
Operation
Initialization:
The sensor becomes operational 30 seconds after power is supplied.
Detection and Activation:
When a person enters a room, the sensor detects major body motion and
turns the light on. The light is kept on even as minor motion, e.g. hand
movement is detected. The sensor's Detection Sequence Logic (DSL)
minimizes false triggering by adjusting detection sensitivity based upon
sequence of presence events. The Sunset Sensor provides additional
control such that lighting is not activated when there is sufficient brightness in
the area.
De-Activation (Normal Occupancy Mode):
When motion is no longer detected, the sensor turns the light off after a set
time delay (Delayed-Off Time).
Walk-thru Mode:
The walk-through feature is useful in areas that are momentarily occupied,
e.g. hallway. If the sensor detects no movement for more than 10 seconds
light was turned off, it will apply a Delayed-Off Time of 2.5 minutes. If the
sensor detects movement less than 10 seconds after light was turned off, it
will next turn the light off based upon the set time delay.
Caution: This product must be installed by a qualified electrician. The casing
and internal components of the device should not be removed or modified.
Exposure of internal components and wiring may cause electric shock and
result in death.
Installation
Accessories:
Brackets, screws and wall plugs for surface mount in solid ceiling
·
Spring clips for flush mount in drop ceiling
·
Infrared zone mask
·
Location:
Determine the number of sensors required to cover the floor area
·
Install the sensor near work area where walk-path cuts across radial lines,
·
not towards the sensor
Do not install the sensor near ventilation outlet
·
Procedure:
Prepare sensor mount. See illustration in the next page
·
Connect the sensor as shown in the wiring diagram. Make sure power
·
supply is turned off
Make sure there are no wiring exposed before mounting the sensor
·
Mount the sensor and turn on the power supply
·
Open the cover, review settings and change if necessary. See Settings
·
section
Initiate test mode, replace the cover and conduct walk-test
·
Walk-Test:
Toggle dip switch B3 (Off-On-Off) to enter test mode. If B3 is already in the
·
On position, moving it to the Off position will also activate test mode
Amber LED will flash once every second when the sensor is in test mode
·
During this time, the sensor will turn the light off after 5 seconds if there
·
are no movement
Test movement at entry point, walk path and presence area
·
Sensor will exit test mode after 15 minutes
·
LED Indicator:
LED indicator can be enabled or disabled by dip switch B2
·
Recommended for troubleshooting
·
Red LED indicates motion detected by infrared sensor
·
©2011 SUREN Systems, Ltd.. All rights reserved. SUREN™, HDIR™ are trademarks of SUREN.

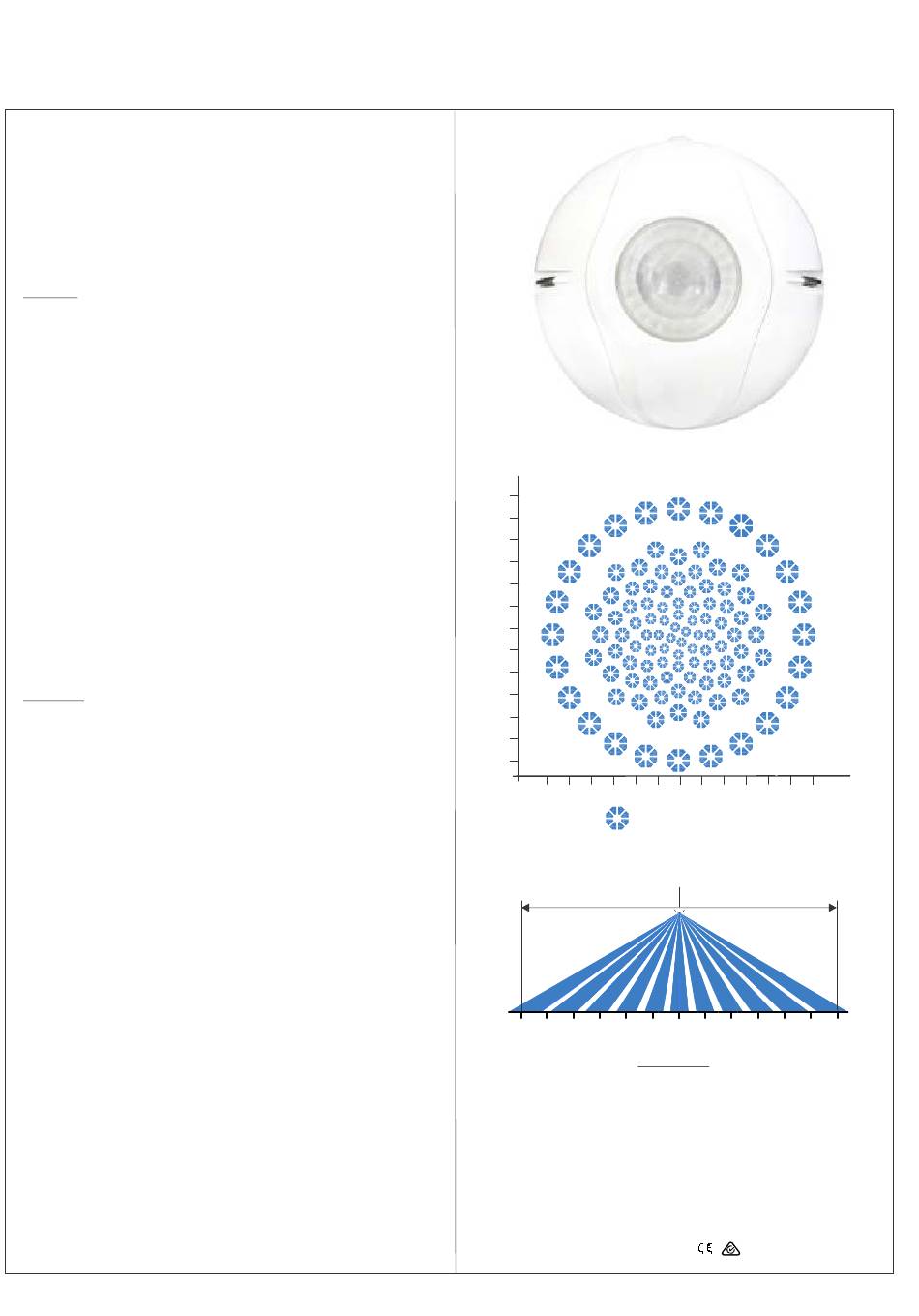

Detection Area:
m
4
2
0
2
4
4
4
Power Supply:
85 - 277 V AC
Power Consumption:
1.87 W
Power Output:
85 - 277 V AC, 5 A
PIR Sensor:
Pyroelectric,8-element
Housing Material:
High-impact ABS
w w w . s u r e n s y s t e m s . c o m
SUREN
Top view
2 0 2
PIR Optical View Pattern
Side view
Detection range
at 2.4m height
2
0
Specification
Dimension:
110mm Diameter x 56 mm
Height
Operating Temperature
Range:
o o
-40 to 55 C
RF Immunity:
20 V/m 10-1000 Mhz; 10 V/m
1-2 GHz
Approvals:
SUREN Part no.: N-ML00-0071-01-1 Rev.1
4 m
2 4 m
