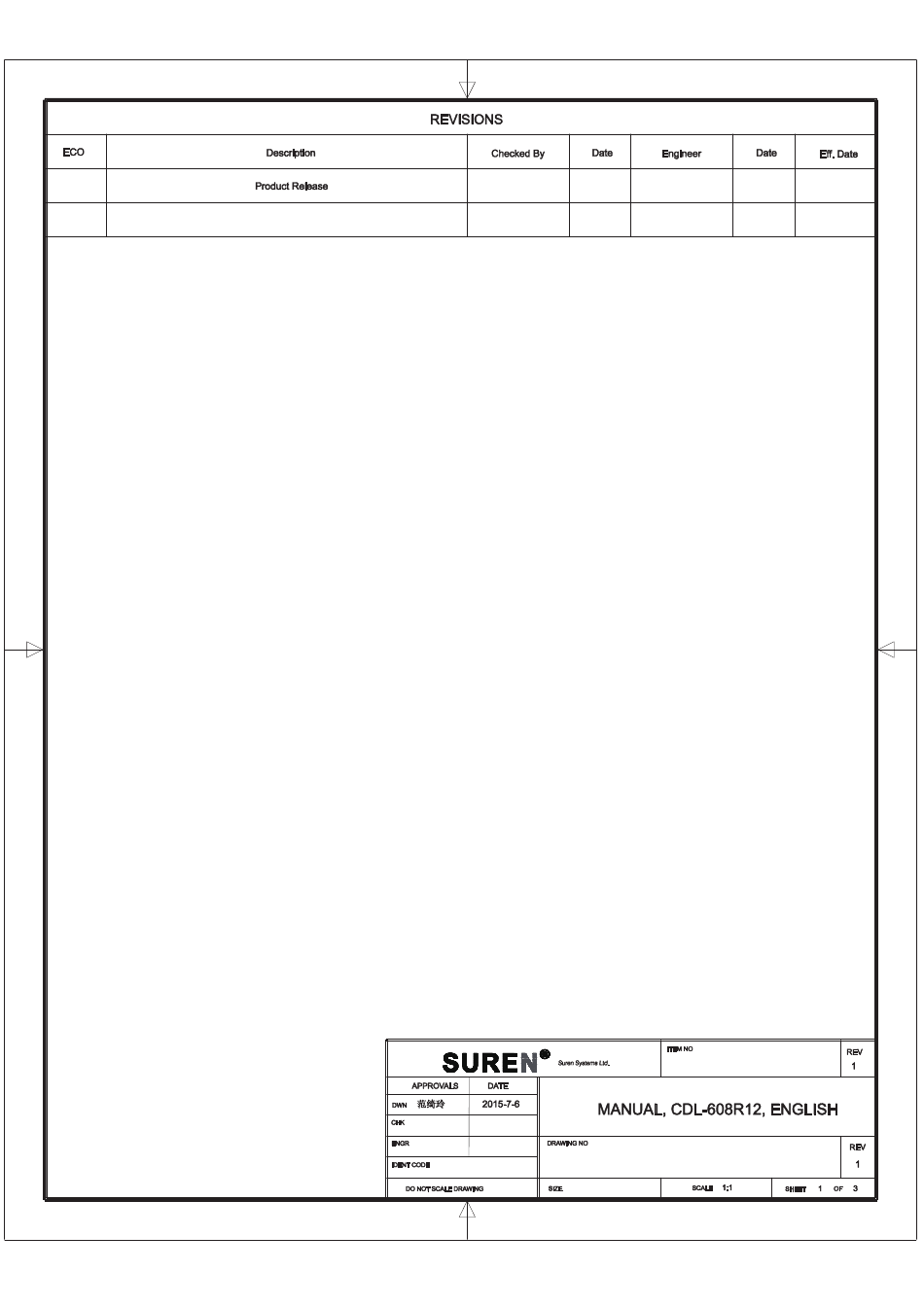

- Page 1 Notes: 1. Material: 80g printing paper, white. A4 size. 2. Printing: Black 3. Pack and tie a label with part number 0-ML00-0045-03-1 . 0-ML00-0045-03-1 N-ML00-0045-03-1...
- Page 2 CDL-608R12 can be surface mounted or flush mounted for an attractive, un-obstructive appearance. One or many sensors can be connected with Suren's (or compatible) power packs to control a wide range of load types, including lighting or HVAC devices. Operation Initialization: The sensor becomes operational 30 seconds after power is supplied.
- Page 3 Sensor Mounting Choices Drop-Ceiling Mounting: Base Preparation Drop-Ceiling Mounting: Panel Preparation The sensor may be mounted either in a drop- Install the two retaining springs as shown. Use a hole saw to cut a 85 mm circular hole in the drop-ceiling panel at the desired location.
- Page 4 CDL-608R24 can be surface mounted or flush mounted for an attractive, un-obstructive appearance. One or many sensors can be connected with Suren's (or compatible) power packs to control a wide range of load types, including lighting or HVAC devices. Operation Initialization: The sensor becomes operational 30 seconds after power is supplied.
- Page 5 Sensor Mounting Choices Drop-Ceiling Mounting: Base Preparation Drop-Ceiling Mounting: Panel Preparation The sensor may be mounted either in a drop- Install the two retaining springs as shown. Use a hole saw to cut a 85 mm circular hole in the drop-ceiling panel at the desired location.
