SUREN HB-316C24 Manual

HB-316C24
Operation and Specification
High Bay Occupancy Sensor
HB-316C24 is a high bay motion sensor with SUREN's proprietary 8-
element pyros and multi-segment lens array. Mounted at a height of
12m, this sensor detects people moving within 16m diameter of a full
circular coverage area.
HB-316C24 can be surface mounted or flush mounted for an attractive,
un-obstructive appearance. One or many sensors can be connected
with Suren's (or compatible) power packs to control a wide range of load
types, including lighting or HVAC devices.
Operation
Initialization:
The sensor becomes operational 30 seconds after power is supplied.
Detection and Activation:
When a person enters a room, the sensor detects major body motion
and turns the light on. The light is kept on even as smaller body
movement is detected. The sensor's Detection Sequence Logic (DSL)
minimizes false triggering by adjusting detection sensitivity based upon
sequence of occupancy events. The Sunset Sensor provides additional
control such that lighting is not activated when there is sufficient
brightness in the area.
De-Activation (Normal Occupancy Mode):
When motion is no longer detected, the sensor turns the light off after a
set time delay (Delayed-Off Time).
Walk-thru Mode:
The walk-through feature is useful in areas that are momentarily
occupied, e.g. hallway. If the sensor detects no movement for more than
10 seconds light was turned off, it will apply a Delayed-Off Time of 2.5
minutes. If the sensor detects movement less than 10 seconds after light
was turned off, it will next turn the light off based upon the set time delay.
Installation
Accessories:
Brackets, screws and wall plugs for surface mount in solid ceiling
·
Spring clips for flush mount in drop ceiling
·
Infrared zone mask
·
Location:
Determine the number of sensors required to cover the floor area
·
Install the sensor near work area where walk-path cuts across radial
·
lines, not towards the sensor
Do not install the sensor near ventilation outlet
·
Procedure:
Prepare sensor mount. See illustration in the next page
·
Connect the sensor as shown in the wiring diagram. Make sure
·
power supply is turned off
Make sure there are no wiring exposed before mounting the sensor
·
Mount the sensor and turn on the power supply
·
Open the cover, review settings and change if necessary. See
·
Settings section
Initiate test mode, replace the cover and conduct walk-test
·
Walk-Test:
Toggle dip switch B3 (Off-On-Off) to enter test mode. If B3 is already
·
in the On position, moving it to the Off position will also activate test
mode
Amber LED will flash once every second when the sensor is in test
·
mode
During this time, the sensor will turn the light off after 5 seconds if
·
there are no movement
Test movement at entry point, walk path and occupancy area
·
Sensor will exit test mode after 15 minutes
·
LED Indicator:
LED indicator can be enabled or disabled by dip switch B2
·
Recommended for troubleshooting
·
Red LED indicates motion detected by infrared sensor
·
©2011 SUREN Systems, Ltd.. All rights reserved. SUREN™.

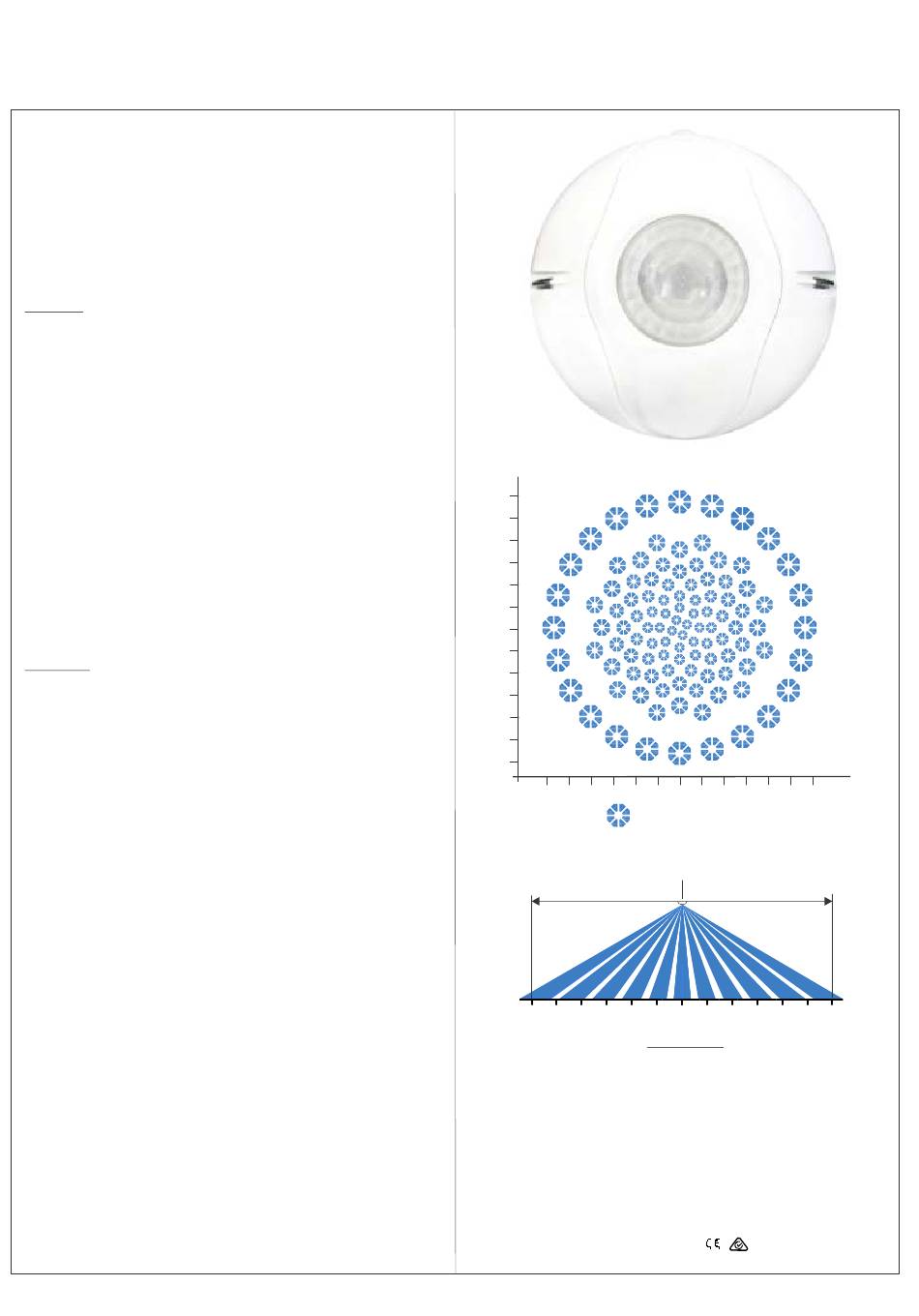

Detection Area:
m
8
4
0
4
8
8
8
Power Supply:
24 V DC (Power pack PS-
124 or PS-224 required)
Power Consumption:
0.22 W
Control Signal Output:
24 V DC, 15 mA
PIR Sensor:
Pyroelectric,8-element
Housing Material:
High-impact ABS
w w w . s u r e n s y s t e m s . c o m
SUREN
Top view
4 0 4
PIR Optical View Pattern
Side view
Detection range
at 12m height
4 0 4
Specification
Dimension:
110mm Diameter x 56 mm
Height
Operating Temperature
Range:
o
-40 to 55 C
RF Immunity:
20 V/m 10-1000 Mhz; 10
V/m 1-2 GHz
Approvals:
SUREN Part no.: N-ML00-0065-10-1 Rev.1
8 m
8 m
o
