SUREN CDL-608 Installation, Operation And Specification Manual

CDL-608
Operation and Specification

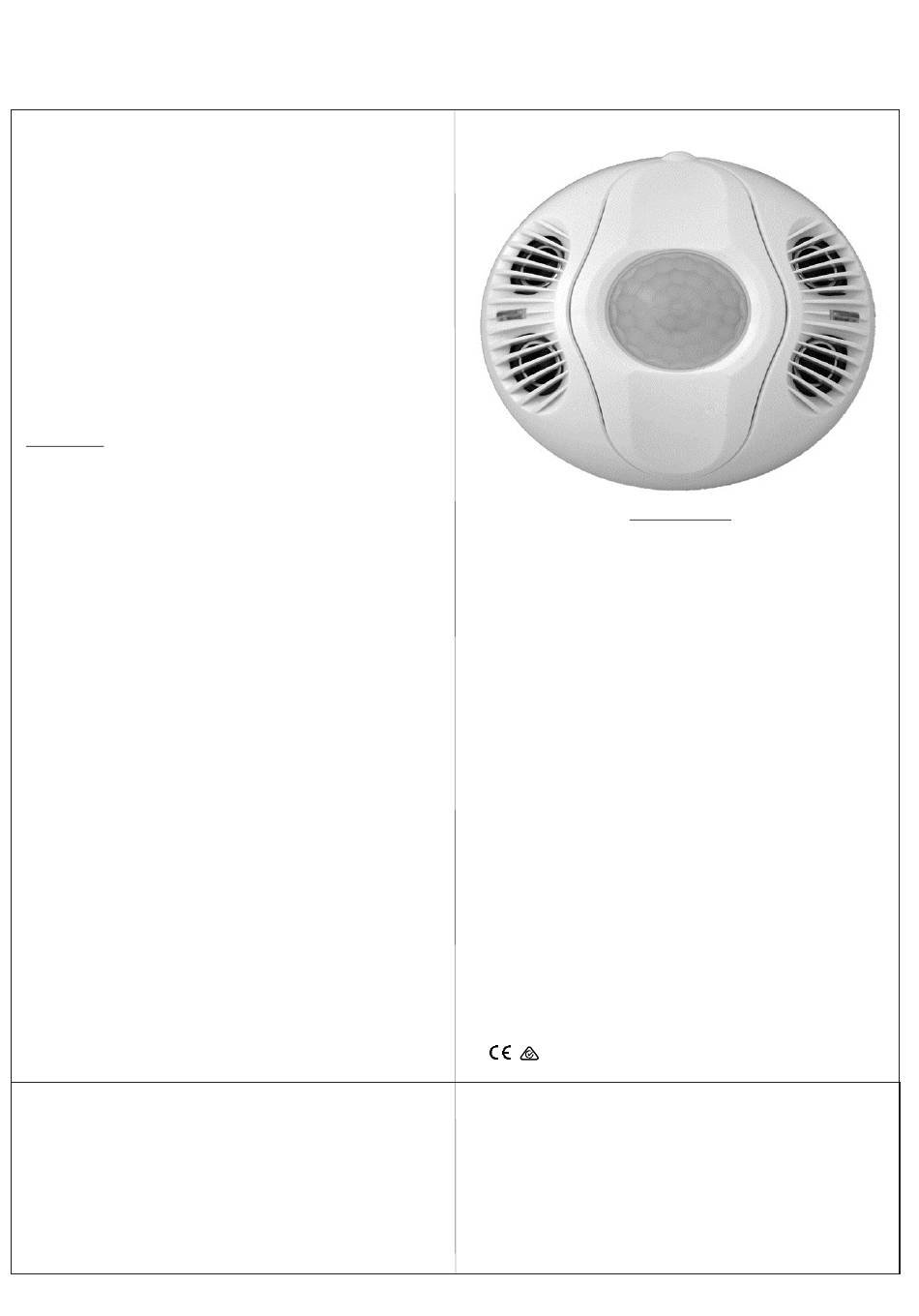

PIR & Ultrasonic Occupancy Sensor
CDL-608 embodies the technology of infra red and
ultrasonic motion detection into one easy-to-install
occupancy sensor. Mounted at a height of 2.4m, this
sensor detects people moving within 8m diameter of a
full circular coverage area.
CDL-608 can be surface mounted or flush mounted for
an attractive, un-obstructive appearance. One or
many sensors can be connected with Suren's (or
compatible) power packs to control a wide range of
load types, including lighting or HVAC devices.
Operation
Initialization:
The sensor becomes operational 30 seconds after
power is supplied.
Detection and Activation:
When a person enters a room, the sensor detects
major body motion and turns the light on. The light is
kept on even as smaller body movement is detected.
The sensor's Detection Sequence Logic (DSL)
minimizes false triggering by adjusting detection
sensitivity based upon sequence of occupancy
events. The Sunset Sensor provides additional
control such that lighting is not activated when there is
sufficient brightness in the area.
De-Activation (Normal Occupancy Mode):
When motion is no longer detected, the sensor turns
the light off after a set time delay (Delayed-Off Time).
Walk-thru Mode:
The walk-through feature is useful in areas that are
momentarily occupied, e.g. hallway. If the sensor
detects no movement for more than 10 seconds light
was turned off, it will apply a Delayed-Off Time of 2.5
minutes. If the sensor detects movement less than 10
seconds after light was turned off, it will next turn the
light off based upon the set time delay.
Limitations of Sensor Products: Sensor products and associated systems do not offer guaranteed
performance in ordinary situations or in special situations including but not limited to burglary, fire, or other
emergencies. They may fail to function for diverse reasons, including (but not limited to): power failure, dead
batteries, improper installation, coverage "blind spots", coverage areas overlooked during installation,
component failure, or inadequate maintenance. Sensors and their associated systems should be checked
weekly to ensure that all devices are working properly.
SUREN LIMITED WARRANTY
SUREN Systems, Ltd., of Fo Tan, Shatin, Hong Kong, warrants its products to be in conformance with its own
plans and specifications and to be free from defects in materials and workmanship under normal use and
service for twelve months from the date of original purchase. Seller's obligation shall be limited to repairing or
replacing, at its option, free of charge for materials or labor, any part which is proved not in compliance with
Seller's specifications or proves defective in materials or workmanship under normal use and service. Seller
shall have no obligation under this Limited Warranty or otherwise if the product is altered or improperly
repaired or serviced by anyone other than Seller. For warranty service, return transportation prepaid, to
SUREN Systems, Ltd., Unit 15, 12/F, Block B, Wah Sang Industrial Building, 14-18 Wong Chuk Yeung Street,
Fo Tan, Shatin, Hong Kong. Seller has no obligation to attend the buyer's location to retrieve the goods or
make repairs on site.
There are no warranties, expressed or implied, of merchantability, or fitness for a particular purpose or
otherwise, which extend beyond the description on the face hereof. In no case shall seller be liable to anyone
©2011 SUREN Systems, Ltd.. All rights reserved. SUREN™, HDIR™ are trademarks of SUREN.
Power Supply:
24 V DC (Power pack PS-124 or PS-224 required)
Power Consumption:
0.96 W
Control Signal Output:
24 V DC, 15 mA
PIR Sensor:
Pyroelectric,2-element
Ultrasonic Frequency:
40 Khz
Housing Material:
High-impact ABS
Dimension:
110mm Diameter x 56 mm Height
Operating Temperature Range:
o
-40 to 55 C
RF Immunity:
20 V/m 10-1000 Mhz; 10 V/m 1-2 GHz
Approvals:
for any consequential or incidental damages for breach of this or any other warranty, express or implied, or
upon any other basis of liability whatsoever, even if the loss or damage is caused by its own negligence or
fault.
Seller does not represent that the products it sells may not be compromised or circumvented; that the
products will prevent any personal injury or property loss by burglary, robbery, fire or otherwise; or that the
products will in all cases provide adequate warning or protection. Customer understands that a properly
installed and maintained alarm system may only reduce the risk of a burglary, robbery, or fire without warning,
but it is not insurance or a guarantee that such will not occur or that there will be no personal injury or property
loss as a result.
Consequently, seller shall have no liability for any personal injury; property damage or other loss based on a
claim the product failed to give any warning. However, if seller is held liable, whether directly or indirectly, for
any loss or damage arising under this limited warranty or otherwise, regardless of cause or origin, seller's
maximum liability shall not in any case exceed the purchase price of the product, which shall be the complete
and exclusive remedy against seller.
This warranty replaces any previous warranties and is the only warranty made by Seller on this product. No
increase or alteration, written or verbal, of the obligations of this Limited Warranty is authorized.
w w w . s u r e n s y s t e m s . c o m
SUREN
Specification
o
SUREN Part no.: N-ML00-0058-01-1 Rev.1
