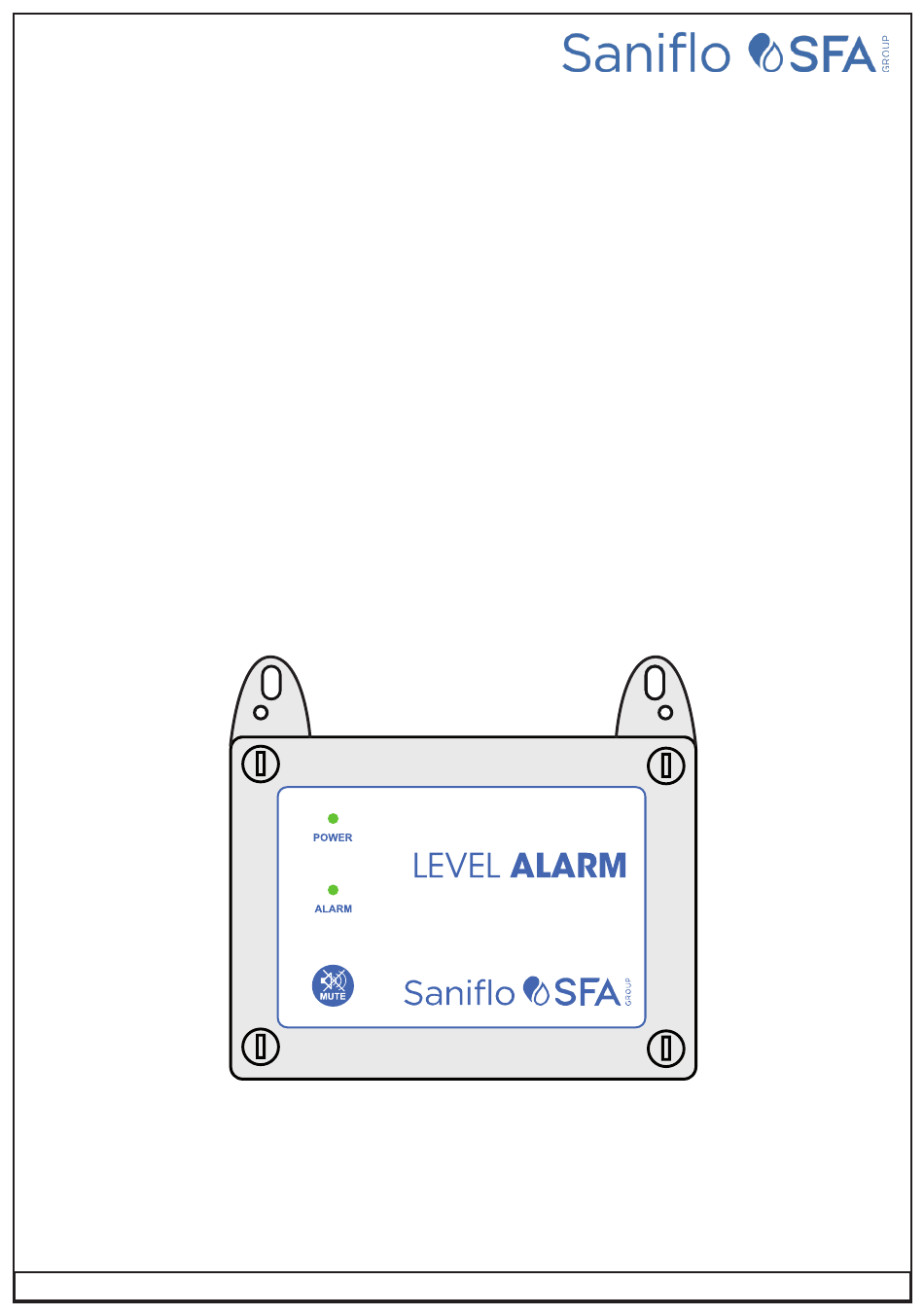

- Page 1 AUSTRALIA/NEW ZEALAND A L A R M I N T E R L O C K S A N I Tel: 1300 554 779 (AU) Tel: 0800 107 264 (NZ) O P E R A T I O N M A N U A L MO D EL : SANI12661 DOC: SANI12661 VER 2.0...
-
Page 2: Table Of Contents
W E L C OM E TO UNDE R SINK / SU LL AGE C H AM B E R A LAR M Your Under-sink/Sullage Chamber Alarm reflects the superior quality and attention to detail in design, engineering and manufacturing that has distinguished SANIFLO Products for decades. The controller incorporates the very latest in micro-processor technology, ensuring you, the owner/operator, of many years of functional, reliable and ‘user friendly’... -
Page 3: Functional Over View
UNDERSINK / SULLAGE CHAMBER ALARM SANIALARM INTERLOCK - WITH VALVE & DISHWASHER INTERLOCK FUNCTIONA L OV ERV IEW OPERATION NOTE: OUTLET SCHE MATIC MAINS WATER DRAIN MAINS WATER TO SEWER POWER SUPPLY TO DISWASHER... -
Page 4: Connection Details
UNDERSINK / SULLAGE CHAMBER ALARM SANIALARM INTERLOCK - WITH VALVE & DISHWASHER INTERLOCK C O NNEC TIO N D E TAI LS 1. Ensure power to the unit is disconnected before carrying out installation. 2. Mount Panel in a dry area and in a vertical position so that cable connections are on the underside of the panel. 3. -
Page 5: Magnetic Float Switch Fitting Guide
SANIALARM INTERLOCK MAGNETIC FLOAT SWITCH FITTING GUIDE USE MAGNETIC FLOAT SWITCH SUPPLIED WITH SANIALARM INTERLOCK ONLY SANICOM 1 Drill a 16mm hole and insert the probe here, make sure the hole is 40mm down from the top of the grey case and 70mm from right edge. - Page 6 SANIALARM INTERLOCK MAGNETIC FLOAT SWITCH FITTING GUIDE USE MAGNETIC FLOAT SWITCH SUPPLIED WITH SANIALARM INTERLOCK ONLY SANIPACK PRO UP 65mm Drill a 16mm hole 185mm from the LH side of case by 65mm down from the top of the lid to insert the magnetic finger switch 185mm SANIACCESS 3...
- Page 7 SANIALARM INTERLOCK MAGNETIC FLOAT SWITCH FITTING GUIDE USE MAGNETIC FLOAT SWITCH SUPPLIED WITH SANIALARM INTERLOCK ONLY SANITOP 70mm Drill a 16mm hole and insert the probe here, make sure the hole is 180mm up from the bottom of the case and 70mm in from the right edge 180mm Please ensure that the magnetic float switch is...
- Page 8 SANIALARM INTERLOCK MAGNETIC FLOAT SWITCH FITTING GUIDE USE MAGNETIC FLOAT SWITCH SUPPLIED WITH SANIALARM INTERLOCK ONLY Drill a 16mm hole and insert the probe here, make sure the hole is 170mm up from the bottom of the case and 30mm from the inside edge of the pan connection opening.
- Page 9 SANIALARM INTERLOCK MAGNETIC FLOAT SWITCH FITTING GUIDE USE MAGNETIC FLOAT SWITCH SUPPLIED WITH SANIALARM INTERLOCK ONLY SANIACCESS 2 Drill a 16mm hole and insert the 120mm probe here, make sure the hole 170mm is 170mm up from the bottom and 120mm from the right side. Please ensure that the magnetic float switch is positioned as shown above, with the arm swinging down inside the pump case.
- Page 10 SANIALARM INTERLOCK MAGNETIC FLOAT SWITCH FITTING GUIDE USE MAGNETIC FLOAT SWITCH SUPPLIED WITH SANIALARM INTERLOCK ONLY SANIBEST PRO 170mm 25mm Drill a 16mm hole and insert the probe here, make sure the hole is 170mm up from the bottom of the case and 25mm from the inside edge of the spigot connector opening.
- Page 11 SANIALARM INTERLOCK FITTING GUIDE SANICUBIC 2 PRO SANICOM 2 To connect Sanialarm Interlock, first remove magnetic float switch from quick plug cable and attach spade connectors in its place. Connect from Sanialarm interlock to spade terminals marked "Alarm contact" on Circuit board inside external control panel...
-
Page 12: Circuit Diagram
CIRCUIT DIAGRAM 240 Vac Supply Plug 240N GPO Flush Mount GPO Flush Mount GPO1 GPO1 GPO1 10Amp 10Amp A N E E A N A N E E A N C NC C NC C NO C NO OUTPUT OUTPUT PUMP PUMP SUPPLY... -
Page 13: Warranty
• This warranty is not transferable • This warranty shall not apply when the product is sold or installed outside Australia or New Zealand NOTE: Warranty only applies when the Sanialarm Interlock is used with Saniflo SFA products...
