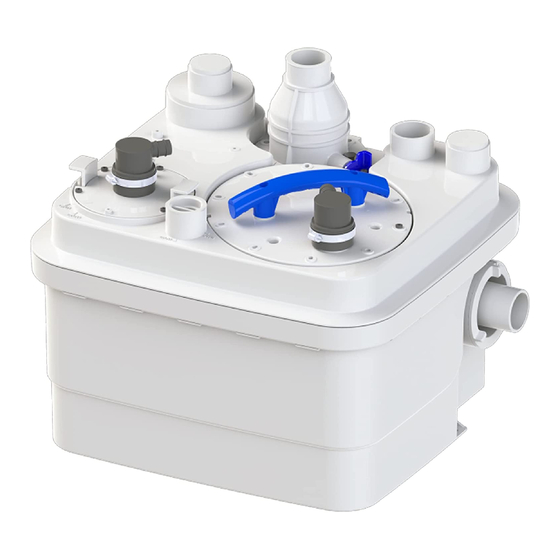

- Page 2 Troubleshooting Quick Guide – Sanicubic 1 Lifting Station...
- Page 3 Sanicubic 1 Troubleshooting Guide The following is a brief troubleshooting guide listing symptoms, probable causes along with the possible remedies. It is important to note that: • Sanicubic 1 combination lifting stations are susceptible to blockages of blades/grinders, impellors and discharge lines. •...
- Page 4 Sanicubic 1 Troubleshooting Guide Symptom The motor does not activate – No noise Sanicubic 1 has a single motor and we need to clarify that it is still working. This can be done by pressing the motor override button on the main control panel. Possible Reasons Remedies Electrical supply is turned off or faulty...
- Page 5 Sanicubic 1 Troubleshooting Guide Symptom The motor hums, but does not run/activate Sanicubic 1 has a single motor and we need to clarify that it is still working. This can be done by pressing the motor override button on the main control panel. Possible Reasons Remedies The cutter assembly jammed /blocked...
- Page 6 Sanicubic 1 Troubleshooting Guide Symptom The motor runs continuously Possible Reasons Remedies The discharge pipe is blocked Clear the discharge line Hydraulic problem (discharge pipe clogged, pump body Check the discharge line, pump body and impeller or impeller loose) The length or height of the pump line is over the Check installation against manufacturer’s installation specification, or too many bends/elbows guides...
- Page 7 Sanicubic 1 Troubleshooting Guide Symptom The motor activates intermittently Possible Reasons Remedies The connected fixtures are Check and, if needed, repair the fixtures running/leaking connected to the pump The integral non-return-valve (NRV) is Check & clean/replace integral NRV blocked/faulty/damaged Defective control board Consult Saniflo technical department...
- Page 8 Sanicubic 1 Troubleshooting Guide Symptom Bad or very slow evacuation Possible Reasons Remedies Vent hole clogged. AAV installed on vent connection. Clean the vent. Remove the AAV, replace with 2-way carbon block filter or vent to atmosphere. Impeller or pump cover plate is faulty or discharge line Check impeller/pump cover plate/Discharge line pinched Partially blocked drainage/fixture line or sink trap...
- Page 9 Sanicubic 1 Troubleshooting Guide Symptoms Possible Reasons Remedies Backflow of water to Outlet of fixture/appliance too close to Raise fixture/appliance or lower pump fixture/appliance activation level of pump (Outlet of lowest fixture must be minimum 275mm above base of pump) Vent to atmosphere or install 2-way Bad smell Pump not vented to atmosphere...
- Page 10 Sanicubic 1 Troubleshooting Guide Alarm Instructions – troubleshooting guide Anomaly Detected Causes/Problems Solutions Flashing red alarm LED Water Level Detection Clear activation tubes Replace pressure switch if faulty Call Saniflo technical Steady red alarm LED Blocked vent line Clear vent line AAV Installed Remove AAV and replace with Blocked pump line...
- Page 11 ABOUT SANIFLO For over 60 years, SFA Group along with Saniflo Australasia, have been helping home and business owners easily install bathroom fixtures, laundry rooms and kitchens anywhere and without major work. Our products are manufactured in France, and comply with the strictest requirements and consistently exceed customer expectations.
- Page 12 ANY MORE QUESTIONS? Call Saniflo Head Office Australia - 1300 554 779 NZ – 0800 107 264...
