Version 1.00 | 01/16/2025
5G M2M Modem

Advertisement

loading
Need help?

Need help?

Do you have a question about the DWM-311-G and is the answer not in the manual?

Questions and answers

Related Manuals for D-Link DWM-311-G

Summary of Contents for D-Link DWM-311-G

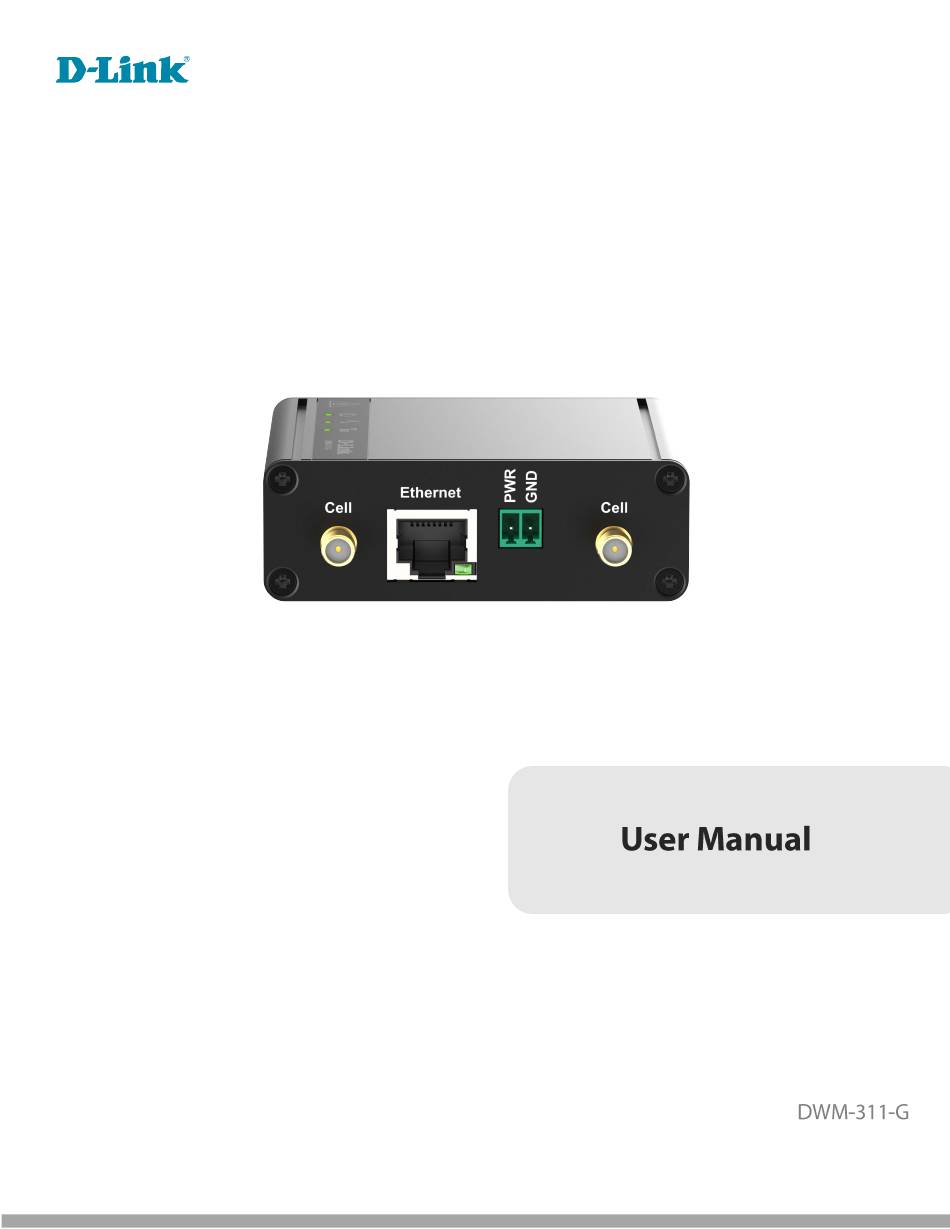

  • Page 1 Version 1.00 | 01/16/2025 5G M2M Modem...

  • Page 2: Table Of Contents

    5G M2M Modem Chapter 1 Introduction .............................. 4 1.1 Introduction ..............................4 1.2 Contents List ..............................5 1.2.1 Package Contents ..........................5 1.3 Hardware Configuration ..........................6 1.4 LED Indication .............................. 6 1.5 Installation& MaintenanceNotice ......................7 1.5.1 SYSTEM REQUIREMENTS ......................7 1.5.2 WARNING ............................
  • Page 3 5G M2M Modem 3.1.3 Reboot & Reset ..........................27 3.1.4 SSH ..............................28 3.1.5 Remote Administrator ........................28 Chapter 4 Status ................................29 4.1 Cellular ................................ 30 4.1.1 Network ............................30 4.1.2 Modem ............................30 4.1.3 Signal ............................... 32 4.2 Security ............................... 33 4.2.1 VPN ..............................

  • Page 4: Chapter 1 Introduction

    Chapter 1 Introduction 1.1 Introduction Congratulations on your purchase of D-Link’s 5G M2M modem. With this 5G M2M modem you have made a great first step in the world of connected Internet of things (IOT) by simply inserting a SIM card from the local mobile carrier into this device to get things connected.

  • Page 5: Contents List

    5G M2M Modem 1.2 Contents List 1.2.1 Package Contents #Standard Package Items Description Contents Quantity DWM-311-G 5G M2M Modem Cellular Antenna 4pcs RJ45 Cable Power Adater 1pcs (DC 12V/1A) #Optional Package Items Description Contents Quantity left Wall mount kit 1 set...

  • Page 6: Hardware Configuration

    5G M2M Modem 1.3 Hardware Configuration  Right View Power Antenna (Terminal block) Antenna Ethernet RightView  Reset Antenna Button Slot Antenna ※Reset Button RESET button provides user a quick and easy way to resort the default setting. Press the RESET button continuously for more than 8 seconds when the Cell/PDP LED (blue and red) flashes alternately for 3~4 seconds, and then release it.

  • Page 7: Installation& Maintenancenotice

    5G M2M Modem LEDColor Indication Description Steady On: Device power is on Blue Off: Device power is off Power Red and Steady On: Cellular is not registered to network. Blue Red and Flash: Cellular is registering to network. Blue and Steady On: The device registers to 5G network. Cell/PDP Blue and Slow Flash: The device registers to LTE or3G network.

  • Page 8: Warning

    5G M2M Modem 1.5.2 WARNING Only use the power adapter that comes with the  package. Using a different voltage rating power adaptor is dangerous and may damage the product. Do not open or repair the case yourself. If the ...
  • Page 9 5G M2M Modem Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 10: Hot Surface Caution

    5G M2M Modem 1.5.3 HOT SURFACE CAUTION CAUTION: The surface temperature for the metallic enclosure can be very high! Especially after operating for a long time, installed at a closed cabinet without air conditioning support, or in a high ambient temperature space.

  • Page 11: Product Information For Ce Red Requirements

    5G M2M Modem 1.5.4 Product Information for CE RED Requirements The following product information is required to be presented in product User Manual for latest CE RED requirements. (1) Frequency Band & Maximum Power Band Number Frequency Band Max. Output Power WCDMA Band 1 1920 ~ 1980 MHz 23 dBm...

  • Page 12: Hardware Installation

    5G M2M Modem 1.6 Hardware Installation This chapter describes how to install and configure the hardware 1.6.1 Mount the Unit The device can be placed on a desktop, or use extender to place on DIN-Rail bracket or mount on the wall. 1.6.2 Insert the SIM Card WARNING: BEFORE INSERTING OR CHANGING THE SIM CARD, PLEASE MAKE SURE THAT POWER OF THE DEVICE IS SWITCHED OFF.

  • Page 13: Connecting To The Network Or A Host

    5G M2M Modem 1.6.3 Connecting to the Network or a Host The DWM-311-G provides one RJ45 port to connect to 10/100/1000/2500Mbps Ethernet. It can auto detect the transmission speed on the network and configure itself automatically. Connect one Ethernet cable to the RJ45 port (LAN) of the device and plug another end of the Ethernet cable into your computer’s network port...

  • Page 14: Chapter 2 Setup

    5G M2M Modem Chapter 2 Setup The DWM-311-G connect to a machine via the Ethernet interface for 3G/4G/5G network connection, and also provides another function with NAT router. It can make the network application more flexible. 2.1 Network Network Page...
  • Page 15 5G M2M Modem Device Mode Item Value setting Description Auto 1. A Must filled setting The unit will detect the SIM and set an APN from internal database. 2. By default Auto is Manual selected User must set APN manually. 1.
  • Page 16 5G M2M Modem 1. A Must filled setting Specify the IP type of the network service provided by your 3G/4G network. IP Type 2. By default IPv4 is It can be IPv4, IPv6, or IPv4v6. selected Dynamic IP 1. A Must filled setting The unit will get IP from cellular service..

  • Page 17: Ethernet

    5G M2M Modem AnOptional setting 1. IPv4 format. Secondary DNS Assigned DNS server of this configed static IP. AnOptional setting 2.1.3 Ethernet Ethernet IP Item Value setting Description 1. IPv4 format. The LAN IP Address of this unit. 2. A Must filled setting 255.255.255.0 (/24) is Netmask The Subnet Mask of this unit.

  • Page 18: Port Forwarding

    5G M2M Modem DHCP Setting Item Value setting Description 1. Numberic string IP Pool Start format. The IP Pool of this DHCP Server. It is Starting Address entered in this field. 2. A Must filled setting 1. Numberic string IP Pool End format.
  • Page 19 5G M2M Modem Virtual Server Rule Configuration Item Value setting Description 1. String format can be Name any text The name of current rule 2. A Must filled setting This field is to specify the IP address of the interface selected in the WAN Server IP A Must filled setting Interface setting above.
  • Page 20 5G M2M Modem It means the option “Protocol” of packet filter rule is UDP. Public Port selected a predefined port from Well-known Service, and Private Port is the same with Public Port number. Public Port is selected Single Port and specify a port number, and Private Port can be set a Single Port number.

  • Page 21: Ddns

    5G M2M Modem 2.1.5 DDNS DDNS Item Value setting Description The box is unchecked by DDNS Check the Enable box to activate this function. default DynDNS.org is set by Select your DDNS provider of Dynamic DNS. It can be DynDNS.org, NO- Provider default IP.com,TZO.com etc...
  • Page 22 5G M2M Modem Device Mode Item Value setting Description Show the current time of the unit. Current Time When select Auto, unit will sync the time via cellular cell,and then try to 1. A Must-filled item. Sync Time 2. Atuo is selected by use NTP if cellular cell doesn’t provide time information.

  • Page 23: Language

    2. English is selected by default. 2.2.3 System Information System Information Item Value setting Description Show the model name of the device Model Name DWM-311-G 2.2.4 Scheduling Scheduling Item Value setting Description Press Add to create a schedule rule for system. Time Schedule...

  • Page 24: Chapter 3 Administrator

    5G M2M Modem Time Schedule Configuration Item Value Setting Description Rule Name String: any text Set rule name Rule Policy Default Inactivate Inactivate/activate the function been applied to in the time period below Time Period Definition Item Value Setting Description Week Day Select from menu Select everyday or one of weekday...

  • Page 25: Password & Mmi

    5G M2M Modem Firmware Information Item Value setting Description FW Version It displays the firmware version of the product FW Date It displays the build time of the firmware Firmware Upgrade Item Value setting Description Select firmware file to be upgraded FW Path Upgrade Action Click Upgrade button to start upgrade process with selected FW...
  • Page 26 5G M2M Modem Username Item Value setting Description 1. The default username Username Display the current username for the administrator is ‘admin’. New Username String: any text Enter the new username Save Click Save button to save the settings Password Item Value setting Description...

  • Page 27: Reboot & Reset

    5G M2M Modem ‘admin’. New Password String: any text Enter new password New Password String: any text Enter new password again to confirm Confirmation Save Click Save button to save the settings Item Value setting Description Enter the login trial counting value. Value Range: 3 ~ 10.

  • Page 28: Ssh

    5G M2M Modem 3.1.4 SSH Item Value setting Description 1. Default value is Check the Enable box to activate the SSH Telnet function for connecting from LAN or WAN interfaces. disable such service You can set which number of Service Port you want to provide for the corresponding 1.

  • Page 29: Chapter 4 Status

    5G M2M Modem Rule Configuration Item Value setting Description Name String: any text Set rule name Protocol Select HTTP or HTTPS method for router access. HTTP is set by default This field is to specify the remote host to assign access right for remote access.

  • Page 30: Cellular

    5G M2M Modem 4.1 Cellular 4.1.1 Network Network Page Item Description Mode Network type NAT Link Status Display cellular network status connected or disconnected. Ip address Base station distribution network ip Netmask Display cellular network netmask Gateway Display cellular network gateway 4.1.2 Modem Modem information Page Item...
  • Page 31 5G M2M Modem Advanced Information Clicl“advanced”button to show Advanced Information Advanced Information Page Item Description IMEI Display modem IMEI information Temperature Module temperature 4G Band capability 4G support band 5G Band capability 5G support band Service information Page Item Description Display card slot Sim status Display read sim status...

  • Page 32: Signal

    5G M2M Modem Advanced Information Page Item Description Display modem IMEI information Module temperature Roaming Roaming status no or roaming Cell id Cell id Band Connected frequency band Location Area Code Tracking Area Number 4.1.3 Signal Cellular Signal Page Item Description Service type Cellular service type LTE /5G...

  • Page 33: Security

    5G M2M Modem Advanced Information Clicl“advanced”button to show Advanced Information Advanced Information Page Item Description RSSI Display Received Signal RSRP Display Signal ReceivedPower RSRQ Display Signal ReceivedQuality SINR Display Interference Strength RSCP Display Signal ReceivedPower ECIO Display interference Ratio 4.2 Security 4.2.1 VPN Openvpn client name Page...
  • Page 34 5G M2M Modem Item Description Openvpn client #1 Clicl“advanced”button to show Advanced Information Advanced Information Page Item Description Openvpn client name Vpn Client name Remote ip/FQDN Vpn server ip or FQDN Remote subnet Vpn server remote subnet Virtual ip Vpn virtual ip Conn.time Display connected time Conn.status...
