Watec WAT-902H2 SUPREME Manual

Advertisement

Quick Links

902H2/H3
SUPREME

Advertisement

loading
Need help?

Need help?

Do you have a question about the WAT-902H2 SUPREME and is the answer not in the manual?

Questions and answers

Summary of Contents for Watec WAT-902H2 SUPREME

  • Page 1 902H2/H3 SUPREME...
  • Page 2 • WAT- 902H 2 / 3 SUPREME _ Model WAT-902H2 SUPREME (EIA) WAT-902H2 SUPREME (CCIR) Pick-up element 1/2" interline transfer CCD image sensor 811 (H) x 508 ( V ) 79 5(H ) x 59 6( V ) Number of total pixels...

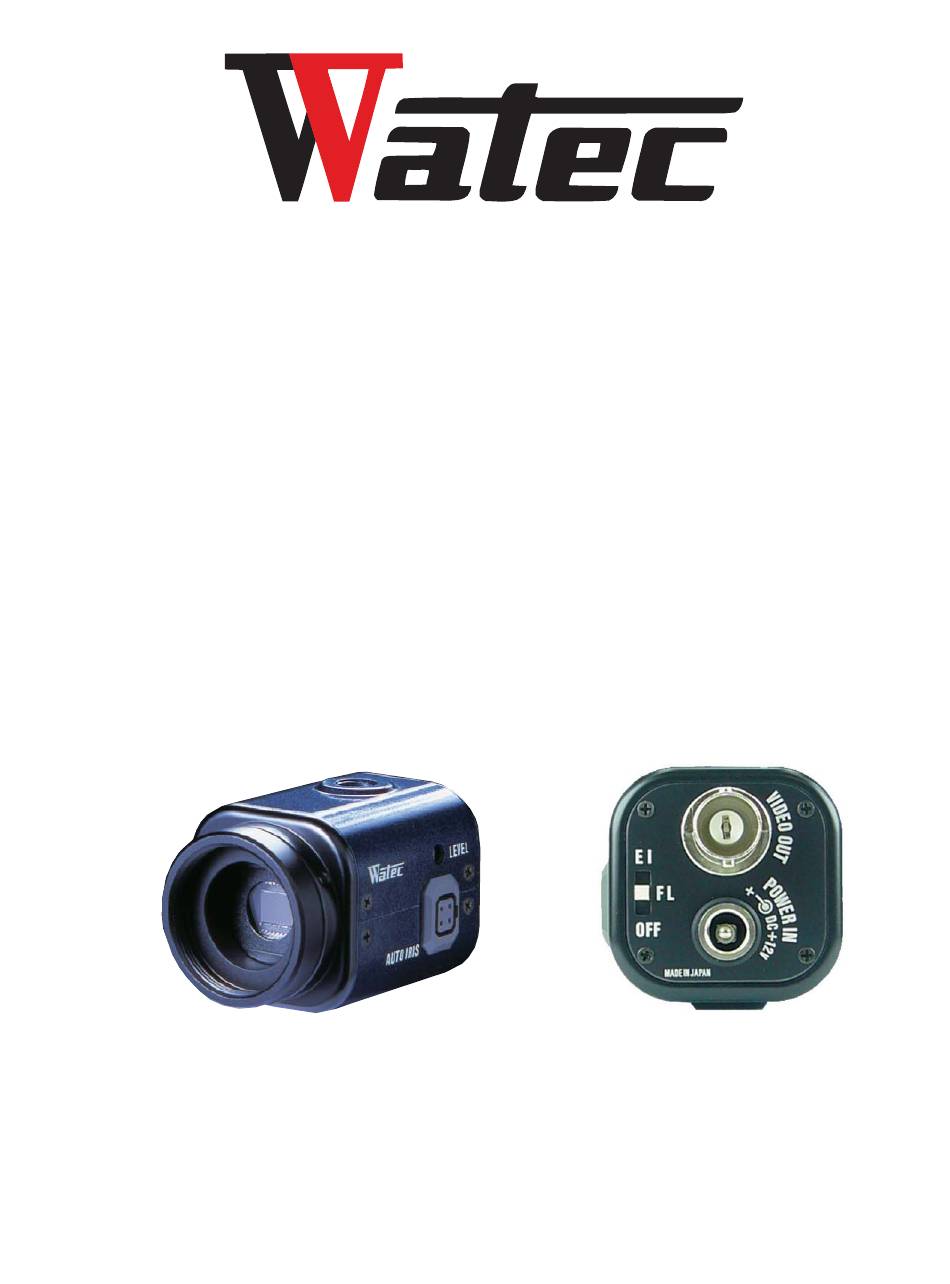

  • Page 4 High Sensitivity Monochrome CCD Camera  Operation  Manual  This Operation Manual covers safety, camera functions, installation  and correct operating procedure for the WAT-902H2/3 SUPREME.  First, we ask you to read the manual thoroughly, then install and  operate the WAT-902H2/3 SUPREME as advised. In addition, for  future reference, we also advise safekeeping of this manual.  Please contact the distributor or dealer from which the  WAT-902H2/3 SUPREME was purchased, if you do not  understand the installation, operation, or safety instructions laid out  in this manual. Not understanding the contents of the Operation  Manual sufficiently may cause damage to the camera.  Cautions for Safety        Guide to the Safety Symbols        The WAT-902H2/3 SUPREME is designed to be used safely.  The meanings of the symbols used in this Operation Manual are:  However, electrical goods may lead to physical accident caused by  fire and electric shock if not used correctly.    Therefore, please keep  When you do not adhere to or take notice of the  “Danger” sign, it may lead to serious accident such as and read the “Cautions for Safety” for protection against accidents.  death or injury caused by fire or electric shock.  •Do not disassemble and/or modify the camera. •Do not operate the camera with wet hands. When you do not adhere to or take notice of the  “Warning” sign, it may cause severe damage such as a physical injury.  •Use only the AD-901 or equivalent power adaptor for When you do not adhere to or take notice of the  the camera. “Caution” sign, it may incur injury and cause damage to The recommended voltage is DC+12V±10%.
  • Page 5 (For a more effective picture, use an IR lens.) AGC H I :  Selected when sensitivity is a priority.  Applicable Auto-iris Lens AGC LO :    Selected when S/N ratio is a priority.  •The camera automatically recognises the type of lens attached. •The switch is set to“AGC HI”on shipment. AGC LO Applicable auto-iris lenses are: ●EIAJ video auto-iris lenses ●EIAJ DC auto-iris lenses 35. 5 AGC H I O  Watec Co., Ltd. P  T  (+86)0755-86657548 FAX: (+86)0755-86657548 I  sales@viewsecctv.com O  AC Adaptor  DC Plug  Auto-iris Plug  C-mount Adaptor Mini-stand  http://www.watecoptic.com MS-50 N ...
