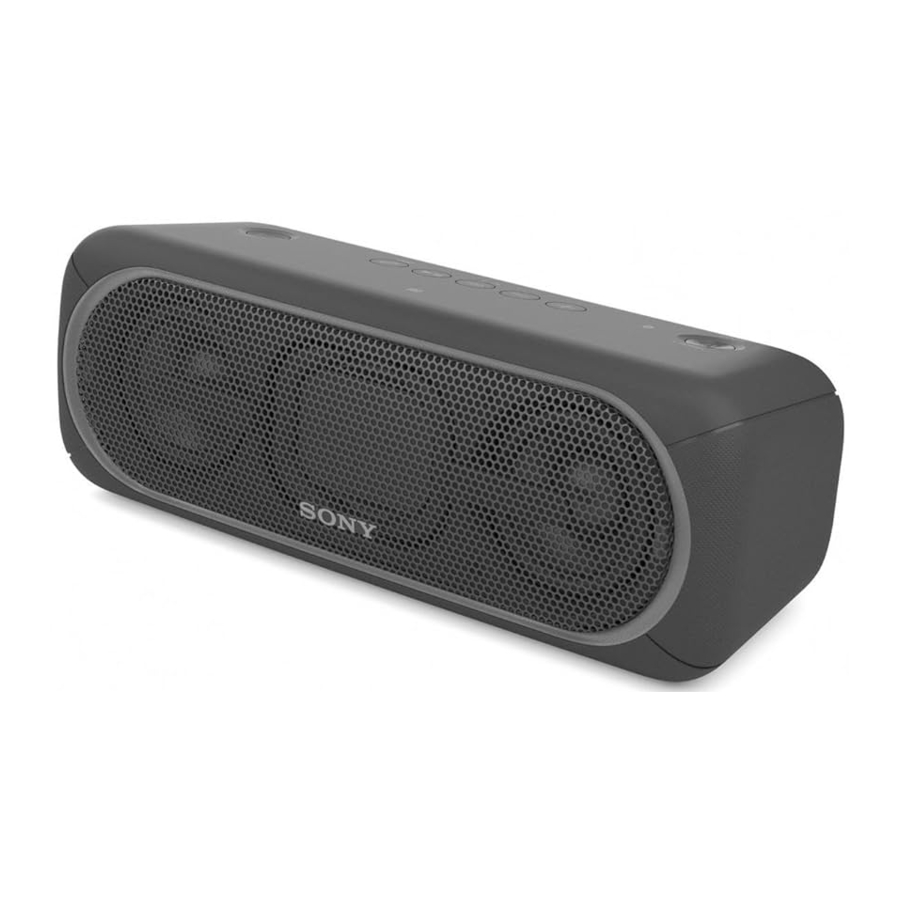

Sony SRS-XB40 Manual

Notes on water resistant feature

(Read before using the system)

Water resistant performance of the system

This system has a water resistant specification*^1,*² of IPX5*³ as specified in "Degrees of protection against ingress of water" of the IEC60529 "Ingress Protection Rating (IP Code)." However, this system is not completely water-tight.

Do not drop the system into hot water in a bathtub or purposely use it in water.

Liquids that the water resistant performance specifications apply to

*¹ Requires that the cap is fastened securely.

*² The supplied accessories are not water resistant.

*³ IPX5 (Degree of protection against jets of water): For details, refer to Help Guide.

The water resistant performance of the system is based on our measurements under the conditions herein described. Note that malfunctions as a result of water immersion caused by misuse by the customer are not covered by the warranty.

To avoid the deterioration of the water resistant performance

Check the following and use the system correctly.

• Do not use or leave the system in an extremely hot or cold environment (temperature outside the range of 5°C – 35°C). If the system is used or left in outside the above range, the system may automatically stop to protect internal circuitry.
• Be careful not to drop the system or subject it to mechanical shock. Deformation or damage may cause deterioration of the water resistant performance.
• Do not use the system in a location where large amount of water or hot water may splash on it. The system does not have a design that is resistant to water pressure. Use of the system in the above location may cause a malfunction.
• Do not pour high-temperature water or blow hot air from a hair dryer or any other appliance on the system directly. Also, never use the system in high temperature locations such as in saunas or near a stove.
• Handle the cap with care. The cap plays a very important role in maintenance of the water resistant performance. When using the system, make sure that the cap is closed completely. When closing the cap, be careful not to allow foreign objects inside. If the cap is not closed completely the water resistant performance may deteriorate and may cause a malfunction of the system as a result of water entering the system.


How to care for the system when wet

If the system gets wet, first remove the water from the system, and then wipe off the moisture on the system using a soft, dry cloth. Especially in cold regions, leaving moisture on its surface may cause the system to freeze and malfunction. Be sure to wipe off the moisture after using the system.

Put the system on towel or dry cloth. Then leave it at room temperature and dry the system until no moisture remains.

Specifications

Speaker section

Speaker system: Approx. 61 mm dia. × 2

Enclosure type: Passive radiator model

BLUETOOTH

*¹ The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, aerial's performance, operating system, software application, etc.

*² BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.

*³ Codec: Audio signal compression and conversion format

*⁴ Subband Codec

*⁵ Advanced Audio Coding

*⁶ LDAC is an audio coding technology developed by Sony that enables the transmission of
High-Resolution (Hi-Res) Audio content, even over a BLUETOOTH connection. Unlike other BLUETOOTH compatible coding technologies such as SBC, it operates without any downconversion of the Hi-Res Audio content*⁷, and allows approximately three times more data*⁸ than those other technologies to be transmitted over a BLUETOOTH wireless network with unprecedented sound quality, by means of efficient coding and optimized packetization.

*⁷ Excluding DSD format contents.

*⁸ In comparison with SBC (Subband Coding) when the bitrate of 990 kbps (96/48 kHz) or 909 kbps (88.2/44.1 kHz) is selected.

Microphone

Type: Electret condenser

Directional characteristic: Omni directional

Effective frequency range: 100 Hz - 7,000 Hz

General

*⁹ When the specified music source is used, the volume level of the unit is set to 19, and the illumination on the unit is turned off.
If the volume level of the unit is set to maximum, the usage life will be approx. 4 hours. Time may vary, depending on the temperature or conditions of use.

Compatible iPhone/iPod models

Bluetooth technology works with iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s, iPod touch (6th generation), iPod touch (5th generation).

Note
Sony cannot accept responsibility in the event that data recorded to iPhone/iPod is lost or damaged when using your iPhone/iPod connected to this unit.

Design and specifications are subject to change without notice.

Safety Warnings

Before operating the system, please read this guide thoroughly and retain it for future reference.

To reduce the risk of fire or electric shock, do not expose the AC adaptor to rain or moisture.

To reduce the risk of fire, do not cover the ventilation opening of the appliance with newspapers, tablecloths, curtains, etc.

Do not expose the appliance to naked flame sources (for example, lighted candles).

To reduce the risk of fire or electric shock, do not expose the AC adaptor to dripping or splashing, and do not place objects filled with liquids, such as vases, on the AC adaptor.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

Do not expose the batteries (battery pack or batteries installed) to excessive heat such as sunshine, fire or the like for a long time.

As the main plug of the AC adaptor is used to disconnect the AC adaptor from the mains, connect it to an easily accessible AC outlet. Should you notice an abnormality in it, disconnect it from AC outlet immediately.

The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.

If your skin touches the AC adaptor or this product for a long time when the power is on, it may cause a low temperature injury.

The nameplate and important information concerning safety are located on the rear exterior of the main unit and on the surface of the AC adaptor.

Do not dismantle, open or shred secondary cells or batteries.

Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight.

In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

Do not use any charger other than that specifically provided for use with the equipment.

Do not use any cell or battery which is not designed for use with the equipment.

Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions. After extended periods of storage, it may be necessary to charge and discharge the cells or batteries several times to obtain maximum performance.

Safety Precautions

On safety

• Before operating the system, be sure that the operating voltage of the system is identical with that of your local power supply.

Notes on the AC adaptor

• Use only the supplied AC adaptor. To avoid damaging the system, do not use any other AC adaptor.


On placement

• Do not set the speaker in an inclined position.
• Do not leave the system in a location near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.
• Do not use or leave the system in a car.
• Do not use the system in a sauna.

On cleaning

• Do not use alcohol, benzine, or thinner to clean the cabinet.

Others

• When using the Speaker Add or Wireless Party Chain function, the codec is changed to SBC.
• At high temperature, the charging may stop or the volume may reduce to protect the battery.
• Even if you do not intend to use the system for a long time, charge the battery to its full capacity once every 6 months to maintain its performance.

About the Voice Guidance

THE SOUND GUIDANCE IS AVAILABLE IN THIS PRODUCT ONLY IN ENGLISH

Depending on the status of the system, the voice guidance outputs from the speaker as followings.

• When setting the system to the pairing mode; "Bluetooth pairing" (Bluetooth pairing)
• When pressing and holding the (call) button to check the battery power during the system is turned on; "Fully charged/About 70%/About 50%/About 20%/Please charge" (Fully charged/ About 70%/About 50%/About 20%/Please charge)
• When the battery power is low; "Please charge" (Please charge)
• When changing the L/R on SongPal during the Speaker Add function; "Left/Right" (Left/Right)
