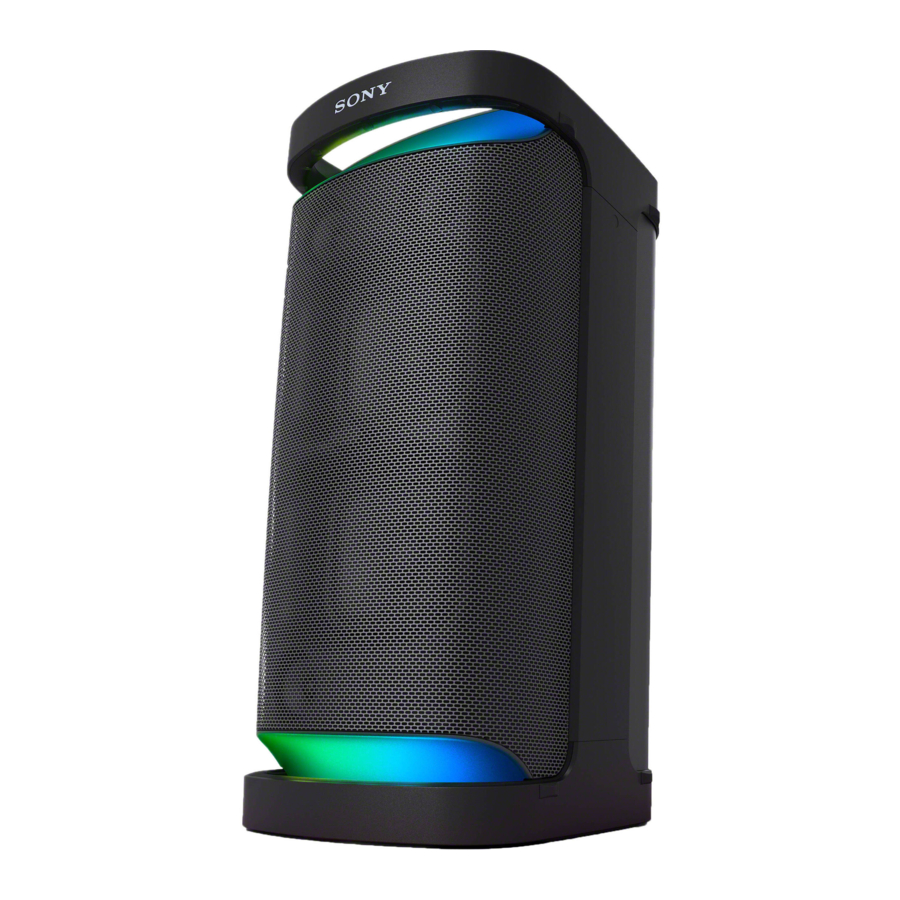

SONY SRS-XP700, SRS-XP500 Manual

https://www.sony.net/

Before operating the unit, please read this guide thoroughly and retain it for future reference. Please access the following URL and read the contents of the END USER LICENSE AGREEMENT. https://rd1.sony.net/help/speaker/el21/h_zz/

To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus.

Do not expose the appliance to naked flame sources (for example, lighted candles).

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.

As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.

The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off.

Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives and/or UK applying relevant statutory requirements This product has been manufactured by or on behalf of Sony Corporation.

EU and UK Importer: Sony Europe B.V.

Inquiries to the EU Importer or related to product compliance in Europe should be sent to the manufacturer's authorized representative, Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium.

Inquiries to the UK Importer or related to product compliance in the UK should be sent to the manufacturer's authorized representative, Sony Europe B.V., The Heights, Brooklands, Weybridge, Surrey KT13 0XW, United Kingdom.

Do not place this product close to medical devices
This product (including accessories) has magnet(s) which may interfere with pacemakers, programmable shunt valves for hydrocephalus treatment, or other medical devices. Do not place this product close to persons who use such medical devices. Consult your doctor before using this product if you use any such medical device.

This equipment has been tested and found to comply with the limits set out in the EMC regulation using a connection cable shorter than 3 meters.

Precautions

On safety

• Completely disconnect the AC power cord (mains lead) from the AC outlet (mains) if it is not going to be used for an extended period of time. When unplugging the unit, always grip the plug. Never pull the cord itself.

On placement

• To eliminate the risk of malfunctions, avoid the following locations when placing or leaving this unit.
  • place subject to high temperatures, such as under direct sunlight or lighting equipment, near a heat source, or in a sauna
  • Inside a vehicle with the windows closed (especially in summertime)
    • place subject to excessive dust
    • place subject to strong vibration
• Place this unit on a flat, level surface. When placed on a sloped surface, the unit may fall over or fall off the surface due to its own vibration, resulting in injuries, malfunctions, or performance degradation.
• Depending on the conditions where this unit is placed, it may fall over or fall off the surface. Do not leave any valuables near the unit.
• This unit is not anti-magnetic. Keep objects susceptible to magnetism (recorded tapes, watches, cash cards and credit cards with magnetic coding, etc.) away from the unit. When you carry around the unit, keep this in mind as well.

Others

• If you use this unit for a long time, the temperature of this unit may rise, but it is not a malfunction.
• Do not use or leave the unit in an extremely cold or hot environment (temperature outside the range of 5°C – 35°C). If the unit is used or left in outside the above range, the unit may automatically stop to protect internal circuitry.
• At high temperature, the charging may stop or the volume may reduce to protect the battery.
• Even if you do not intend to use the unit for a long time, charge the battery to its full capacity once every 6 months to maintain its performance.

Notes on water resistant feature
(Read before using the unit)

Water resistant performance of the unit
The unit, with the cap closed securely, has a water resistant specification of IPX4*¹ as specified in "Degree of protection against splashing water" of the IEC60529 "Ingress Protection Rating (IP Code)*²." However, the unit is not completely waterproof. Do not drop the unit into hot water in a bathtub or purposely use it in water.

Liquids that the water resistant performance specifications apply to

*¹ IPX4 (Degree of protection against splashing water): Protected against water splashing from any direction.

*² The supplied accessories and the connectors of this unit (AC IN/USB/AUDIO IN/MIC/GUITAR) are not water resistant. To reduce the risk of fires or electric shocks, do not expose the unit to water or droplets while using any connectors (AC IN/USB/AUDIO IN/MIC/GUITAR). Do not place a vase or any other liquid-filled container on the unit.

To avoid the deterioration of the water resistant performance

Check the following and use the unit correctly.

• This unit does not have a design that is resistant to water pressure. Do not put the unit in the water or directly under the water gushing out of the faucet to avoid a malfunction.
• Do not pour high-temperature water or blow hot air from a hair dryer or any other appliance on the unit directly. Also never use the unit in a place subject to high temperatures, such as in a sauna or near a heat source.
• Handle the cap with care. The cap plays a very important role in maintenance of the water resistant performance. When using the unit, make sure that the cap is closed completely. When closing the cap, be careful not to allow foreign objects inside. If the cap is not closed completely the water resistant performance may deteriorate and may cause a malfunction of the unit as a result of water entering the unit.


How to care for the unit when wet

Be sure to wipe off the moisture after using the unit. If the unit is left wet, it may be soiled by water stains, molds, or the like.

The sound quality may change when water enters the speaker section of the unit. This, however does not indicate a malfunction.

Wipe off the moisture on its surface, and put the unit on a dry soft cloth to drain the collected water inside the unit. Then, dry the unit in an airy place until no moisture remains.

Note

• Clean this unit with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as thinner, benzine, or alcohol.
• Especially in cold regions, be sure to wipe off the moisture after using the unit. Leaving moisture on its surface may cause the unit to freeze and malfunction.

Specifications

Speaker

Speaker system 2-way, Bass reflex

Speaker unit
(SRS-XP700)
Woofer: Approx. 170 mm × 170 mm (2)
Tweeter: Approx. 60 mm dia. (3), Front
Tweeter: Approx. 50 mm dia. (1), Rear (SRS-XP500)
Woofer: Approx. 140 mm × 140 mm (2)
Tweeter: Approx. 50 mm dia. (2)

BLUETOOTH

Communication system
BLUETOOTH Specification version 5.0

Maximum communication range
Line of sight*¹ approx. 30 m

Frequency band 2.4 GHz band (2.4000 GHz – 2.4835 GHz)

Modulation method FHSS (Freq Hopping Spread Spectrum)

Compatible BLUETOOTH profiles*²
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile)

Supported codecs*³
SBC (Subband Codec)
AAC (Advanced Audio Coding)
LDAC*⁴

Transmission range (A2DP)
20 Hz - 20 000 Hz (Sampling frequency 44.1 kHz)

Operating frequency / Maximum output power
2 400 MHz - 2 483.5 MHz / < 9.0 dBm

*¹ The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna's performance, operating system, software application, etc.

*² BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communications between devices.

*³ Codec: Audio signal compression and conversion format

*⁴ LDAC is an audio coding technology developed by Sony that enables the transmission of High-Resolution (Hi-Res) Audio content, even over a BLUETOOTH connection.

Note
Depending on the network environment, there may be an interruption at the high bitrate transmission.

General

Inputs
Type A USB1 port: Supported USB Device (Mass Storage Class)
AUDIO IN jack (stereo mini jack): Voltage 2 V, impedance 10 kΩ
MIC jack: Sensitivity 1 mV, impedance 10 kΩ MIC/GUITAR jack:
Sensitivity 1 mV, impedance 10 kΩ (when guitar mode is turned off)
Sensitivity 200 mV, impedance 500 kΩ (when guitar mode is turned on)

DC OUT
Type A USB1 and USB2 port (for charging the battery of a connected device)
(DC 5 V/Max. 1.5 A (Max. 2 A in total for 2 ports))*⁵

Power AC 120 V - 240 V, 50/60 Hz or, using built-in lithium-ion battery

Power consumption
(SRS-XP700)
78 W
(SRS-XP500)
76 W

Standby power consumption
(SRS-XP700)
When BLUETOOTH standby mode is set to off: 0.5 W
When BLUETOOTH standby mode is set to on: 1.5 W
(SRS-XP500)
When BLUETOOTH standby mode is set to off: 0.5 W
When BLUETOOTH standby mode is set to on: 1.5 W

Lithium-ion battery life (while Battery Care mode*⁶ is not activated)
With playback via a BLUETOOTH connection
(SRS-XP700)
Approx. 25 hours*⁷ *⁸
Approx. 20 hours*⁷ *⁹
Approx. 6 hours*⁷ *¹²
Approx. 5 hours*⁷ *¹³
(SRS-XP500)
Approx. 20 hours*⁷ *¹⁰
Approx. 10 hours*⁷ *¹¹
Approx. 6.5 hours*⁷ *¹²
Approx. 5 hours*⁷ *¹³

Time required for charging the built-in rechargeable battery*¹⁴ (while Battery Care mode*⁶ is not activated)
(SRS-XP700)
Approx. 3 hours
(10 minutes of charging provide approximately 3 hours of music playback.)*⁷ *⁸
(SRS-XP500)
Approx. 3 hours
(10 minutes of charging provide approximately 80 minutes of music playback.)*⁷ *¹⁰

Dimensions (including projecting parts and controls)
(SRS-XP700)
Approx. 313 mm × 693 mm × 367 mm (w/h/d)
(SRS-XP500)
Approx. 275 mm × 572 mm × 295 mm (w/h/d)

Mass
(SRS-XP700)
Approx. 16.9 kg including battery
(SRS-XP500)
Approx. 11.2 kg including battery

Supplied accessories AC power cord (mains lead) (2)

For customers in the UK, Ireland, Malta, and Cyprus:
Use the AC power cord (mains lead) (A).
For safety reasons, the AC power cord (mains lead) (B) is not intended for the above countries/regions and shall therefore not be used there.
For customers in other countries/regions: Use the AC power cord (mains lead) (B).

*⁵ The feed current is automatically adjusted in accordance with the number of connected USB devices and the sound volume of the unit.

*⁶ Mode for prolonging the durability life of the built-in rechargeable battery by limiting the charging capacity up to approximately 90%. The unit in this mode is capable of playing for a shorter period of time than stated.

*⁷ Actual performance time may vary from the listed time due to the volume, songs played, surrounding temperature, and usage conditions.

*⁸ Measured value acquired by playing our specified music source with the volume level of the unit set to 13, the sound mode set to MEGA BASS, and the lighting function turned off.

*⁹ Measured value acquired by playing our specified music source with the volume level of the unit set to 13 and with the factory default settings (Sound mode: MEGA BASS and Lighting: ON).

*¹⁰ Measured value acquired by playing our specified music source with the volume level of the unit set to 16, the sound mode set to MEGA BASS, and the lighting function turned off.

*¹¹ Measured value acquired by playing our specified music source with the volume level of the unit set to 16 and with the factory default settings (Sound mode: MEGA BASS and Lighting: ON).

*¹² Measured value acquired by playing our specified music source with the volume level of the unit set to maximum, the sound mode set to MEGA BASS, and the lighting function turned off.

*¹³ Measured value acquired by playing our specified music source with the volume level of the unit set to maximum and with the factory default settings (Sound mode: MEGA BASS and Lighting: ON).

*¹⁴ Time required for the empty battery to be fully charged (100%) while the unit is powered off.

Compatible iPhone/iPod models
iPhone SE (2nd generation), iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPod touch (7th generation)

The unit is compatible with iOS 10.0 or later.

Design and specifications are subject to change without notice.
