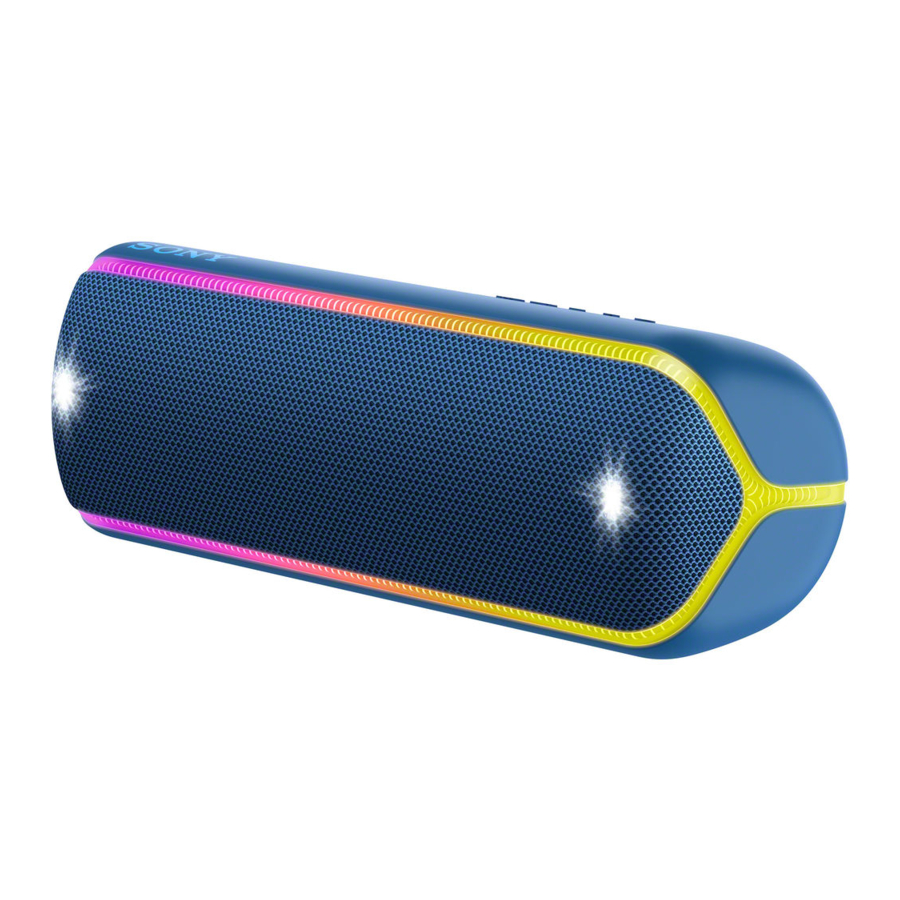

Sony SRS-XB32 Manual

Specifications

*¹ The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna's performance, operating system, software application, etc.
*² BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communications between devices.
*³ Codec: Audio signal compression and conversion format
*⁴ Subband Codec
*⁵ Advanced Audio Coding
*⁶ LDAC is an audio coding technology developed by Sony that enables the transmission of High-Resolution (Hi-Res) Audio content, even over a BLUETOOTH connection. Unlike other BLUETOOTH compatible coding technologies such as SBC, it operates without any downconversion of the Hi-Res Audio content*⁷, and allows approximately three times more data*⁸ than those other technologies to be transmitted over a BLUETOOTH wireless network with unprecedented sound quality, by means of efficient coding and optimized packetization.
*⁷ Excluding DSD format contents.
*⁸ In comparison with SBC when the bitrate of 990 kbps (96/48 kHz) or 909 kbps (88.2/44.1 kHz) is selected.

Note
Depending on the network environment, there may be an interruption at the high bitrate transmission.

*⁹ Measured value acquired by playing our specified music source with the volume level of the unit set to 21, the sound mode set to STANDARD, and the illumination turned off.
*¹⁰ Measured value acquired by playing our specified music source with the volume level of the unit set to 21 and with the factory default settings (illumination: ON and sound mode: EXTRA BASS).
*¹¹ Measured value acquired by playing our specified music source with the volume level of the unit set to maxim and with the factory default settings (illumination: ON and sound mode: EXTRA BASS).
If the built-in lithium-ion battery is running low, the maximum volume is reduced to about half to protect the circuit. This is a specification.
The usage life mentioned here also includes when playing back music at about half the volume.
*¹² Actual performance time may vary from the listed time due to the volume, songs played, surrounding temperature, and usage conditions.

System requirements for charging battery using USB
Using a commercially-available USB AC adaptor capable of feeding in 1.5 A

Compatible iPhone/iPod models
iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch (6th generation)
The unit is compatible with iOS 10.0 or later.

Design and specifications are subject to change without notice.

CAUTION

Caution on charging
When the USB plug is inserted in a wet condition, a short circuit occurs due to the liquid (tap water, salt water, refreshing drink etc.) attached to the main unit and charging cable or foreign matter, it may cause abnormal heat generation or malfunction.
Never insert USB plug when the main unit or charging cable is wet condition.

Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
Do not expose the batteries (battery pack or batteries installed) to excessive heat such as sunshine, fire or the like for a long time.

Do not expose the batteries to extreme low temperature conditions that may result in overheating and thermal runaway. Do not dismantle, open or shred secondary cells or batteries. In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. Secondary batteries need to be charged before use. Always refer to the equipment manual for proper charging instructions. After extended periods of storage, it may be necessary to charge and discharge the cells or batteries several times to obtain maximum performance. Dispose of properly.

Precautions

On safety

• If your skin touches this product for a long time when the power is on, it may cause a low temperature injury.
• Important information such as the model name is located inside of the cap on the rear side of the unit.

About the Party Booster function
If the unit hits a person or thing, it may cause an accident, injury or malfunction. When using the Party Booster function, notice the following.

• Be sure to disconnect the micro-USB cable, etc. from the unit.
• Be sure to close the cap when using the unit.
• When using the function, hold firmly and do not shake the unit violently so that you do not throw or drop the unit from your hand.

• Before using the function, make sure that you have secured sufficient space around the unit.
• Do not hit the unit with a tool.
• Do not use the function while you are driving or walking.
• Keep 20 cm (7 7/8 in) or more away from the face and eyes while in use.
• Avoid using the function for a long time. Take breaks regularly.
• When using the function, if you get tired, feel uncomfortable or experience pain somewhere in your body, stop using the function immediately.

On placement

• Do not set the unit in an inclined position.
• Do not leave the unit in a place subject to high temperatures, such as direct sunlight, near a heat source or under lighting equipment.
• Do not leave any objects susceptible to magnetism (cash cards, credit cards with magnetic coding, etc.) near the unit.
• Do not use or leave the unit in a car.

Others

• Do not use or leave the unit in an extremely cold or hot environment (temperature outside the range of 5°C – 35°C (41°F – 95°F)). If the unit is used or left in outside the above range, the unit may automatically stop to protect internal circuitry.
• At high temperature, the charging may stop or the volume may reduce to protect the battery.
• Even if you do not intend to use the unit for a long time, charge the battery to its full capacity once every 6 months to maintain its performance.

About the Voice Guidance

THE SOUND GUIDANCE IS AVAILABLE IN THIS PRODUCT ONLY IN ENGLISH
Depending on the status of the unit, the voice guidance outputs from the unit as followings.

• When setting the unit to the pairing mode; "Bluetooth pairing"
• When pressing the BATT (battery) button to check the battery power during the unit is turned on; "Battery fully charged/Battery about 70%/Battery about 50%/Battery about 20%/Please charge"
• When the battery power is low; "Please charge"
• When the settings are completed for the Speaker Add function; "Double mode"
• When pressing and holding the ADD (Speaker Add) button during the Speaker Add function; "Left/Right/Double mode"

Notes on waterproof and dust proof features

(Read before using the unit)

Waterproof and dust proof performance of the unit

The unit, with the cap fastened securely, has a waterproof specification of IPX7*¹ as specified in "Degree of protection against water immersion" of the IEC60529 "Ingress Protection Rating (IP Code)"*³, and a dust proof specification of IP6X*² as specified in "Degrees of protection against solid foreign objects"*³.

*¹ The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna's performance, operating system, software application, etc.
*² BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communications between devices.
*³ Codec: Audio signal compression and conversion format

Liquids that the waterproof performance specifications apply to

*¹ IPX7 (Degree of protection against water immersion): For details, refer to the Help Guide.
*² IP6X (Degrees of protection against dust): For details, refer to the Help Guide.
*³ The supplied accessories and the connectors of this unit (USB/AUDIO IN) are neither waterproof nor dust proof.

The waterproof and dust proof performance of the unit is based on our measurements under the conditions herein described. Note that malfunctions as a result of water immersion or dust intrusion caused by misuse by the customer are not covered by the warranty.

To avoid deterioration of waterproof and dust proof performance
Check the following and use the unit correctly.

• The unit passes the drop test from 1.22 m (4 ft) on plywood of 5 cm (2 in) thickness conforming to MIL-STD 810 F Method 516.5-Shock. However, this does not guarantee no damage, no breakdown, or waterproof and dust proof performance in all conditions. Deformation or damage from dropping the unit or subjecting it to mechanical shock may cause deterioration of the waterproof and dust proof performance.
• This unit does not have a design that is resistant to water pressure. Use of the unit in a location where high water pressure is applied, such as in the shower, may cause a malfunction.
• Do not pour high-temperature water or blow hot air from a hair dryer or any other appliance on the unit directly. Also, never use the unit in high temperature locations such as in saunas or near a stove.
• Handle the cap with care. The cap plays a very important role in maintenance of the waterproof and dust proof performance. When using the unit, make sure that the cap is closed completely. When closing the cap, be careful not to allow foreign objects inside. If the cap is not closed completely the waterproof and dust proof performance may deteriorate and may cause a malfunction of the unit as a result of water or dust particles entering the unit.


How to care for the unit

Although the fabric part of the unit has water repellent treatment applied, you can use the unit more comfortably and for a longer period of time by following the maintenance procedure below.

• If the surface of the unit gets dirty in the following cases, wash the unit with fresh water (tap water, etc.) promptly to remove the dirt. Leaving dirt on its surface may cause the fabric part to discolor or deteriorate, or the unit to malfunction.
  Ex.
  • When salt, sand, etc. is stuck on the unit after using it on a beach, pool side, etc.
  • When the unit is stained with foreign substances (sunscreen, suntan oil, etc.)
• If the unit gets wet, wipe off the moisture using a dry soft cloth immediately. In addition, dry the unit in an airy place until no moisture remains.
• The sound quality may change when water enters the speaker section of the unit. It is not malfunction. Wipe off the moisture on its surface, and put the unit on a dry soft cloth with the fabric part facing down to drain the collected water inside the unit. Then, dry the unit in an airy place until no moisture remains.

Note

• If the surface of the unit gets dirty, do not use detergent, thinner, benzine, alcohol, etc. to clean the unit because it will affect the water repellent function of the fabric part of the unit.
• Especially in cold regions, be sure to wipe off the moisture after using the unit. Leaving moisture on its surface may cause the unit to freeze and malfunction.
• If sand grains, etc. enter the fabric part of the unit, remove them carefully. Never use a vacuum cleaner, etc. on the unit. It may cause damage of the speaker unit.

If you have any questions about this product:
Visit: https://www.sony.com/support
Contact: Sony Customer Information Service Center at 1-800-222-7669
Write: Sony Customer Information Service Center 12451 Gateway Blvd., Fort Myers, FL 33913
