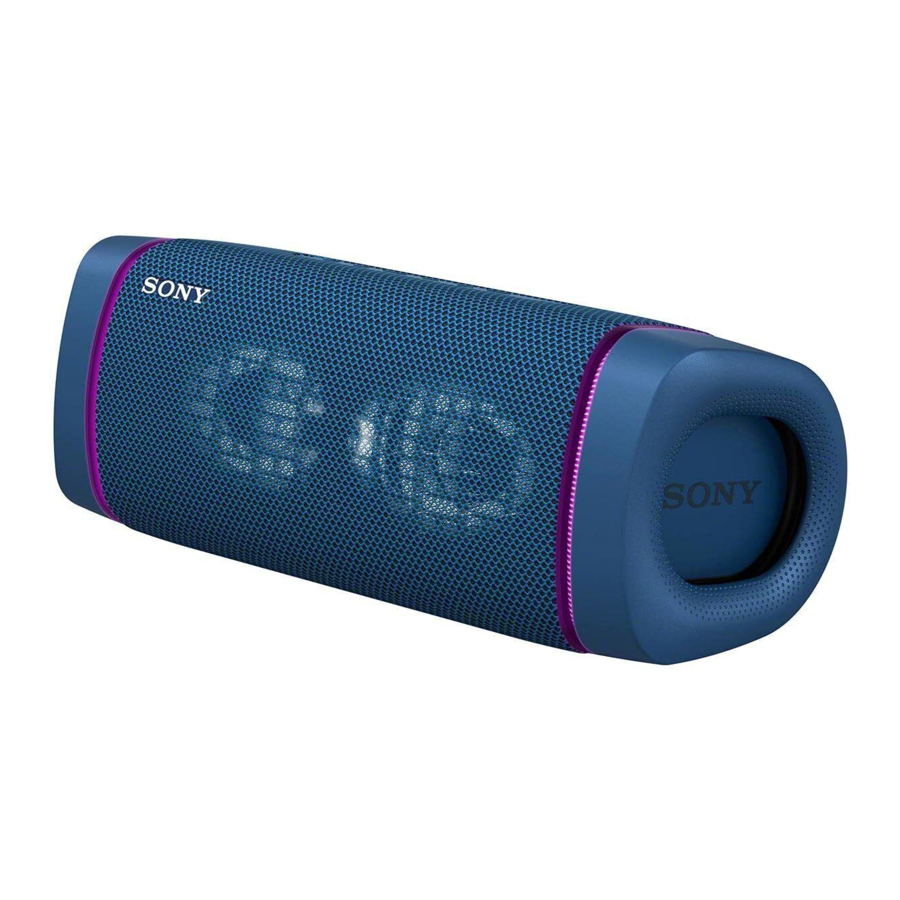

Sony SRS-XB33 Manual

CAUTION

Do not place this product close to medical devices
This product (including accessories) has magnet(s) which may interfere with pacemakers, programmable shunt valves for hydrocephalus treatment, or other medical devices. Do not place this product close to persons who use such medical devices. Consult your doctor before using this product if you use any such medical device.
This equipment has been tested and found to comply with the limits set out in the EMC regulation using a connection cable shorter than 3 meters.

Caution on charging Inserting the USB plug while it is wet may cause a short circuit due to foreign matter or liquid (tap water, salt water, soft drinks, etc.) getting on the main unit or charging cable. This may cause malfunctions or abnormal overheating. Never insert the USB plug while the main unit or charging cable is wet.

Precautions

On safety

• If your skin touches this product for a long time when the power is on, it may cause a low temperature injury.
• Important information such as the model name is located on the inner surface of the cap on the rear side of the unit.

On placement

• To eliminate the risk of malfunctions, avoid the following locations when placing or leaving this unit.
  • A place subject to high temperatures, such as under direct sunlight or lighting equipment, near a heat source, or in a sauna
  • Inside a vehicle with the windows closed (especially in summertime)
  • A place subject to excessive dust
  • A place subject to strong vibration
• Place this unit on a flat, level surface. When placed on a sloped surface, the unit may fall over or fall off the surface due to its own vibration, resulting in injuries, malfunctions, or performance degradation.
• Depending on the conditions where this unit is placed, it may fall over or fall off the surface. Do not leave any valuables near the unit.
• This unit is not anti-magnetic. Keep objects susceptible to magnetism (recorded tapes, watches, cash cards and credit cards with magnetic coding, etc.) away from the unit. When you carry around the unit, keep this in mind as well.

Others

• Do not use or leave the unit in an extremely cold or hot environment (temperature outside the range of 5°C – 35°C). If the unit is used or left in outside the above range, the unit may automatically stop to protect internal circuitry.
• At high temperature, the charging may stop or the volume may reduce to protect the battery.
• Even if you do not intend to use the unit for a long time, charge the battery to its full capacity once every 6 months to maintain its performance.

About the Voice Guidance

THE SOUND GUIDANCE IS AVAILABLE IN THIS PRODUCT ONLY IN ENGLISH
Depending on the status of the unit, the voice guidance outputs from the unit as followings.

• When entering pairing mode: "BLUETOOTH pairing"
• When establishing a BLUETOOTH connection: "BLUETOOTH connected"
• When disconnecting a BLUETOOTH connection: "BLUETOOTH disconnected"
• When pressing the BATT (battery) button to check the battery power during the unit is turned on:
  "Battery fully charged/Battery about 70%/Battery about 50%/Battery about 30%/Please charge"
• When pressing and holding the ST PAIR button during the Stereo Pair function: "Left/Right"

Notes on waterproof and dust proof features
(Read before using the unit)
Waterproof and dust proof performance of the unit
The unit, with the cap fastened securely, has a waterproof specification of IPX7*¹ as specified in "Degree of protection against water immersion" of the IEC60529 "Ingress Protection Rating (IP Code)"*³, and a dust proof specification of IP6X*² as specified in "Degrees of protection against solid foreign objects"*³.

Liquids that the waterproof performance specifications apply to

*¹ IPX7 (Degree of protection against water immersion): For details, refer to the Help Guide.
*² IP6X (Degrees of protection against dust): For details, refer to the Help Guide.
*³ The supplied accessories and the connectors of this unit (USB) are neither waterproof nor dust proof. To reduce the risk of fire or electric shocks, do not expose the unit to water or droplets while using either or both of the connectors (USB). Do not place a vase or any other liquid-filled container on the unit.
The waterproof and dust proof performance of the unit is based on our measurements under the conditions herein described. Note that malfunctions as a result of water immersion or dust intrusion caused by misuse by the customer are not covered by the warranty.

To avoid deterioration of waterproof and dust proof performance
Check the following and use the unit correctly.

• The unit passes the drop test from 1.22 m on plywood of 5 cm thickness conforming to MIL-STD810H Method 516.8-Shock. However, this does not guarantee no damage, no breakdown, or waterproof and dust proof performance in all conditions. Deformation or damage from dropping the unit or subjecting it to mechanical shock may cause deterioration of the waterproof and dust proof performance.
• This unit does not have a design that is resistant to water pressure. Use of the unit in a location where high water pressure is applied, such as in the shower, may cause a malfunction.
• Do not pour high-temperature water or blow hot air from a hair dryer or any other appliance on the unit directly. Also never use the unit in a place subject to high temperatures, such as in a sauna or near a heat source.
• Handle the cap with care. The cap plays a very important role in maintenance of the waterproof and dust proof performance. When using the unit, make sure that the cap is closed completely. When closing the cap, be careful not to allow foreign objects inside. If the cap is not closed completely the waterproof and dust proof performance may deteriorate and may cause a malfunction of the unit as a result of water or dust particles entering the unit.


How to care for the unit
Although the fabric part of the unit has water repellent treatment applied, you can use the unit more comfortably and for a longer period of time by following the maintenance procedure below.

• If the surface of the unit gets dirty in the following cases, wash the unit with fresh water (tap water, etc.) promptly to remove the dirt. Leaving dirt on its surface may cause the fabric part or the passive radiator section to discolor or deteriorate, or the unit to malfunction. Ex.
  • When salt, sand, etc. is stuck on the unit after using it on a beach, pool side, etc.
  • When the unit is stained with foreign substances (sunscreen, suntan oil, etc.)
• If the unit gets wet, wipe off the moisture using a dry soft cloth immediately. In addition, dry the unit in an airy place until no moisture remains.
• The sound quality may change when water enters the speaker or passive radiator section of the unit. It is not malfunction. Wipe off the moisture on its surface, and put the unit on a dry soft cloth to drain the collected water inside the unit. Then, dry the unit in an airy place until no moisture remains.

Note

• If the surface of the unit gets dirty, do not use detergent, thinner, benzine, alcohol, etc. to clean the unit because it will affect the water repellent function of the fabric part of the unit.
• Especially in cold regions, be sure to wipe off the moisture after using the unit. Leaving moisture on its surface may cause the unit to freeze and malfunction.
• If sand grains, etc. enter the fabric or other part of the unit, remove them carefully. Never use a vacuum cleaner, etc. on the unit. It may cause damage of the speaker section or other part of the unit.

Specifications

Speaker section
Full range unit Approx. 48 mm × 70 mm (2)
Enclosure type Passive radiator model

BLUETOOTH
Communication System
BLUETOOTH Specification version 5.0
Maximum communication range
Line of sight approx. 30 m*¹
Frequency band 2.4 GHz band (2.4000 GHz - 2.4835 GHz)
Modulation method FHSS
Compatible BLUETOOTH Profiles*²
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
HSP (Headset Profile)
HFP (Hands-free Profile)
Supported Codec*³ SBC (Subband Codec)
AAC (Advanced Audio Coding)
LDAC
Transmission range (A2DP)
20 Hz - 20,000 Hz (Sampling frequency 44.1 kHz)
*¹ The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, aerial's performance, operating system, software application, etc.
*² BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communications between devices.
*³ Codec: Audio signal compression and conversion format

Note
Depending on the network environment, there may be an interruption at the high bitrate transmission.

Microphone
Type Electret condenser
Directional characteristic
Omni directional
Effective frequency range
100 Hz - 7,000 Hz

General
DC OUT USB jack Type A (for charging the battery of a connected device)
(DC 5 V, Max. 1 A)
Power DC 5 V (using a commercially-available USB AC adaptor capable of feeding in
3.0 A) or, using built-in lithium-ion battery
Lithium-ion battery life (with playback via a BLUETOOTH connection)
Approx. 24 hours*⁴ *⁷
Approx. 14 hours*⁵ *⁷
Approx. 4 hours*⁶ *⁷
Dimensions (including projecting parts and controls)
Approx. 246 mm × 97 mm × 106 mm (w/h/d)
Mass Approx. 1.1 kg including battery
Supplied accessory USB Type-C® cable (USB-A to USB-C® / Max. 1.5 A) (1)
*⁴ Measured value acquired by playing our specified music source with the volume level of the unit set to 36, the sound mode set to STAMINA, and the illumination turned off.
*⁵ Measured value acquired by playing our specified music source with the volume level of the unit set to 35 and with the factory default settings (illumination: ON and sound mode: EXTRA BASS).
*⁶ Measured value acquired by playing our specified music source with the volume level of the unit set to maximum and with the factory default settings (illumination: ON and sound mode: EXTRA BASS).
*⁷ Actual performance time may vary from the listed time due to the volume, songs played, surrounding temperature, and usage conditions.

System requirements for charging battery using USB
Using a commercially-available USB AC adaptor capable of feeding in 1.5 A or 3.0 A*⁸
*⁸ When using a USB AC adaptor with an output current of 3.0 A, be sure to use a USB Type-C® cable that conforms to the USB standard and supports an output current of 3.0 A. The supplied USB cable supports an output current of up to 1.5 A.

Compatible iPhone/iPod models
iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPod touch (6th generation) The unit is compatible with iOS 10.0 or later.
Design and specifications are subject to change without notice.
