Machine Translated by Google

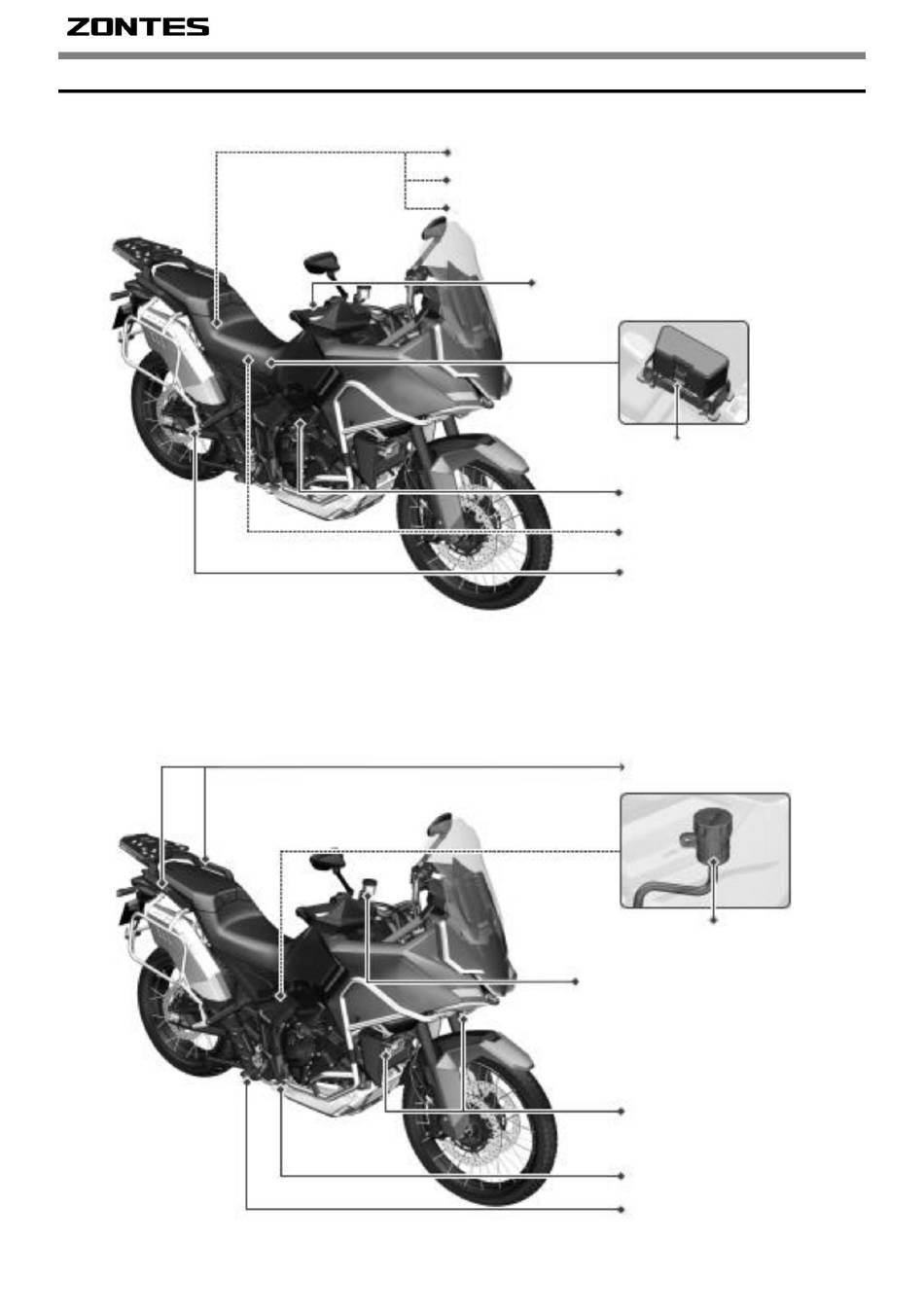

2. CHECKPOINTS
Low frequency transmission antenna. PKE unit
Inductive unlock antenna
Throttle handle
OBDII diagnostic connector
RKE Accessories
Battery
Passenger footrest
Passenger handrail
Rear brake fluid reservoir
Front brake fluid reservoir
Fog lights
4
Foot brake
Driver's footrest

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 703F and is the answer not in the manual?

Questions and answers

Related Manuals for Zontes 703F

Summary of Contents for Zontes 703F

  • Page 1 Machine Translated by Google 2. CHECKPOINTS Low frequency transmission antenna. PKE unit Inductive unlock antenna Throttle handle OBDII diagnostic connector RKE Accessories Battery Passenger footrest Passenger handrail Rear brake fluid reservoir Front brake fluid reservoir Fog lights Foot brake Driver's footrest...
  • Page 2 Machine Translated by Google Clutch lever USB charging port Gear lever Side stand Driver's footrest Front shock absorber adjustment Fuel tank cap Saddle Expansion tank Rear suspension adjuster Passenger footrest Central stand...

  • Page 3: Before Driving

    Machine Translated by Google 3. BEFORE DRIVING This manual describes the correct use of the motorcycle including safe riding and simple control methods. For more comfortable and safe driving, please read this manual carefully. In the event that the specifications and construction of the motorcycle have been modified and differ from the photographs and diagrams in the owner's manual, the specifications and construction of the actual vehicle prevail.

  • Page 4: Use Genuine Spare Parts

    Machine Translated by Google 5. DRIVING • Keep the relevant parts of your body, such as hands, palms, fingers, relaxed and drive in the most comfortable position so that you can react quickly whenever necessary. • The rider's posture affects safe riding. Always keep your body weight centered on the saddle. If your body weight is at the back of the saddle, the weight on the front wheel will be reduced and this will cause the handlebars to wobble.
  • Page 5 Machine Translated by Google 7. CONTROLS INSTRUMENTS WARNING: Do not wipe plastic parts, e.g. instrument panel, headlight, with organic solvents such as gasoline, etc. to avoid damaging them. 1) Right turn signal indicator: The right indicator will flash (green) when the turn signal switch is pressed.
  • Page 6 Machine Translated by Google 9) ABS Light: The ABS light comes on when the ignition switch is turned to the ON position and goes off shortly after the vehicle is started. When the ABS is in normal condition, the light remains off. In the event of a fault in the ABS system, in which case the ABS light will come on and remain on, the vehicle maintains the characteristics of the traditional braking system.
  • Page 7 Machine Translated by Google QUICK SHIFT (Quick Shift System) This vehicle's quick-shift system operates unidirectionally and allows only upshifts without using the clutch. The system's sensor detects the gear change and the ECU intervenes to immediately engage the next gear, allowing the change without using the clutch. 1) Altitude: (Only displayed in Wilderness mode): Display range: -999m to 9999m.
  • Page 8 Machine Translated by Google Time setting Automatic time synchronization via GPS every time you turn on the vehicle. Manual time setting: Manually set the year, month, day, hour, and minutes according to local time. To enter manual setting, follow the order: year ÿ month ÿ day ÿ hour ÿ...
  • Page 9 The light shows the strength of the 4G signal. The better the signal, the fuller the indicator appears. Key Number It means that the key number currently in use corresponds to the key code in the Zontes smart app. For example: key No.1 corresponds to the code ÿ0ÿ...
  • Page 10 Machine Translated by Google Tire Pressure Monitoring System (TPMS) Setup and Learning When tire pressure monitoring is activated, the tire pressure and temperature are displayed as "--" when the vehicle is started. The actual pressure value is only transmitted when the minimum speed of 30 km/h is first exceeded, as the TPMS sensor only sends a signal after this speed is reached.
  • Page 11 You can view the camera image, both front and rear, on the DVR screen and calibrate it. Open the app ZONTES smart, scan the QR code on the display screen and connect to the device. After connecting, you can download the videos and photos directly to your mobile phone.
  • Page 12 Machine Translated by Google KEYLESS START SYSTEM OPERATION PKE (Keyless Entry) System User Instructions System) - Low frequency transmitting antenna (Figure - Charging port holder (Figure 2) - Non-electric inductive antenna (Figure 3) - 3rd generation PKE central unit (Figure 4) - Induction key (Figure 5) Explanation of PKE Accessories (Figure 2) ÿ...
  • Page 13 Machine Translated by Google PKE Activation Mode Briefly press the " " button, the turn signals flash twice, the steering wheel lock unlocks automatically, and then two "beep" sounds are heard as the circuit is activated. Disable PKE After the motorcycle stops and the engine is turned off, place the handlebars to the left end, press and hold the "...
  • Page 14 Machine Translated by Google USES OF SWITCHES Back / exit button LEFT SWITCH Selector Right / Up TCS button Button Parbiz Saddle Button Selector left / Down Alarm Flash Fog light switch Horn 1) TCS Button: Used to turn the TCS function on and off. By default, the TCS function is on. Pressing and holding the TCS button turns the function off.

  • Page 15: Right Switch

    Machine Translated by Google 11) Alarm: Use this switch (pressing the switch will flash all the turn signals) in emergencies or when stopping at the side of the road. To turn off the alarm, the main switch must be in the ON position. 12) Fog light switch: Press to turn on the fog light.

  • Page 16: Switch Operation

    Machine Translated by Google 4) Heated grips adjustment button: Press to turn on the heated grips. SWITCH OPERATION RETURN Mode Long press Long press Momentary press Reset Momentary press trip odometer, average fuel Entering the Main consumption Take a photo screen menu and average speed.
  • Page 17 Machine Translated by Google ANTI-LOCK BRAKING SYSTEM (ABS) This model is equipped with Anti-lock Braking System (ABS) on the front and rear wheels, which prevents the wheels from locking for an extended period of time during emergency braking. WARNING: · ABS does not reduce braking distance.
  • Page 18 Machine Translated by Google 8. CHECKING - STARTING THE ENGINE WARNING: • Please check whether the fuel and oil are sufficient or not before starting. 1. Is there enough fuel in the tank? 2. Make sure the transmission is in neutral (green light on).
  • Page 19 Machine Translated by Google 9. USEFUL TIPS WHEN DRIVING Before you start, check the condition of the brakes and tire pressure. Startup process 1. Make sure there is no gear in the transmission (the N indicator will be lit on the instrument panel – green light).
  • Page 20 Machine Translated by Google USING THE GAS Deceleration Acceleration: To increase speed. When Acceleration If you are driving on a flat road, turn the throttle slowly so that the speed of your vehicle increases. Slow down: Turn the throttle in this direction to reduce speed.

  • Page 21: Routine Inspection

    Machine Translated by Google 10. INSPECTION & MAINTENANCE BEFORE DRIVING ROUTINE INSPECTION Items to check Checkpoints Engine oil Fuel Is there enough oil in the engine? Are there enough? It's 95 octane (unleaded) or higher. Brake condition? Front (Brake lever free travel: 10~20mm) Brakes Brake condition? Rear...
  • Page 22 Machine Translated by Google SUSPENSION ADJUSTMENT Front suspension adjustment Spring Preload Adjustment The spring preload adjuster is adjusted with a 14 mm socket wrench. The typical setting is a full turn counter-clockwise (to the stop) and then 4 turns clockwise. The preload adjustment range is 10 turns.

  • Page 23: Suggested Suspension Settings

    Machine Translated by Google Rear Shock Absorber Compression Damping Adjustment The rear shock compression damping adjuster is manually adjustable. The adjustment range is 15 clicks. The standard setting is a full turn counterclockwise (to the stop) and then 7 clicks clockwise. Clockwise rotation: increase compression damping (stiffen).

  • Page 24: Engine Oil Inspection And Change

    Machine Translated by Google ENGINE OIL INSPECTION AND CHANGE For the long-term durability of the engine, it is important to choose quality oil and replace it regularly. Regularly checking the oil level and changing it at scheduled intervals are essential maintenance tasks. Steps to check engine oil level: 1.

  • Page 25: Engine Oil Filter

    Machine Translated by Google ENGINE OIL FILTER Oil filter replacement 1. Place a drain pan under the oil filter, located on the left side. crankcase. 2. Loosen the belts and remove the protective cover of the oil filter. Oil filter removal: 1.

  • Page 26: Air Filter

    Machine Translated by Google AIR FILTER Clasps The air filter should be replaced regularly according to the Schedule. Please visit an affiliated workshop to replace the air filter. Driver Safety: The air filter is located inside the left side of the vehicle. If the air filter is clogged with dust, it will increase the intake resistance, reduce engine power and increase fuel consumption.

  • Page 27: Checking The Brake System

    Machine Translated by Google CHECKING THE BRAKE SYSTEM • Visually inspect the brake system and lines frequently for leaks and damage. Check for loose connections using the appropriate tools, and check for any vibrations in the steering wheel while driving. Also check for any interference with the brake lines from other materials.

  • Page 28: Tires Check

    Machine Translated by Google RUBBER WIRING COVERS Rubber covers are used to protect the wiring harness wires. Check the covers frequently to ensure they are in the correct position. Do not direct pressurized water against the wiring harness and do not use a hard brush when washing the vehicle.

  • Page 29: License Plate

    Machine Translated by Google CHECKING THE STEERING WHEEL AND FRONT SHOCK ABSORBERS • Perform the check with the engine off. • Visual inspection of the front shock absorbers for any damages. • Rock the steering wheel by pushing it up and down and check the shock absorbers for any noises due to the linkages.
  • Page 30 Machine Translated by Google CHECKING, MAINTENANCE AND PROPER USE OF BATTERY – CHARGER Lithium- Ion Battery The battery is located under the driver's seat. Follow the procedure to remove the battery: 1. Open the saddle and turn off the motorcycle's electrical circuit. 2.

  • Page 31: Using A Battery Charger

    Machine Translated by Google USING A BATTERY CHARGER For charging, use only the factory charger. You can charge via the built-in port or by removing the battery. Be careful not to overcharge it, as this may cause leakage, swelling, or even explosion. Charging Instructions When the motorcycle is not used for a long time or the battery cannot be started for other reasons, follow the steps below to recharge the...
  • Page 32 Machine Translated by Google SPRAY SYSTEM NOTES Before installing the battery, check that all EFI system cables are properly connected and that there is gasoline. Use tools to connect the battery terminals tightly and avoid connecting by hand. Keep at least 3 liters of gasoline in the tank for the EFI system to function properly. If the vehicle does not start properly or the idle is not stable, follow these steps to reset the EFI: open the electric lock and run off switch, support the center stand and apply the brake, start the engine, increase the speed to above 3000 rpm, release the throttle, close the switch and lock, and...

  • Page 33: Drive Chain

    This model is equipped with a drive chain made of special materials. When it is time to replace the drive chain, please contact your Zontes dealer or flag store to have it replaced. Check and adjust the motorcycle drive chain every day before riding. Follow the method below to check and maintain the chain.

  • Page 34: Fuel Type

    Machine Translated by Google 11. MALFUNCTIONS - PROBLEMS TROUBLESHOOTING WHEN THE ENGINE DOES NOT START (1). You have turned the switch (2). Is there enough fuel in the (3).Press the lever the engine in the "ON" tank? clutch when you press the position? starter button? Horn...
  • Page 35 Machine Translated by Google 13. WARNINGS FOR SAFE DRIVING 1. Place the motorcycle on the side stand and sit on the saddle. 2. Get on the motorcycle from the left side, sit normally on the saddle and rest your feet on the ground to prevent the motorcycle from falling.
