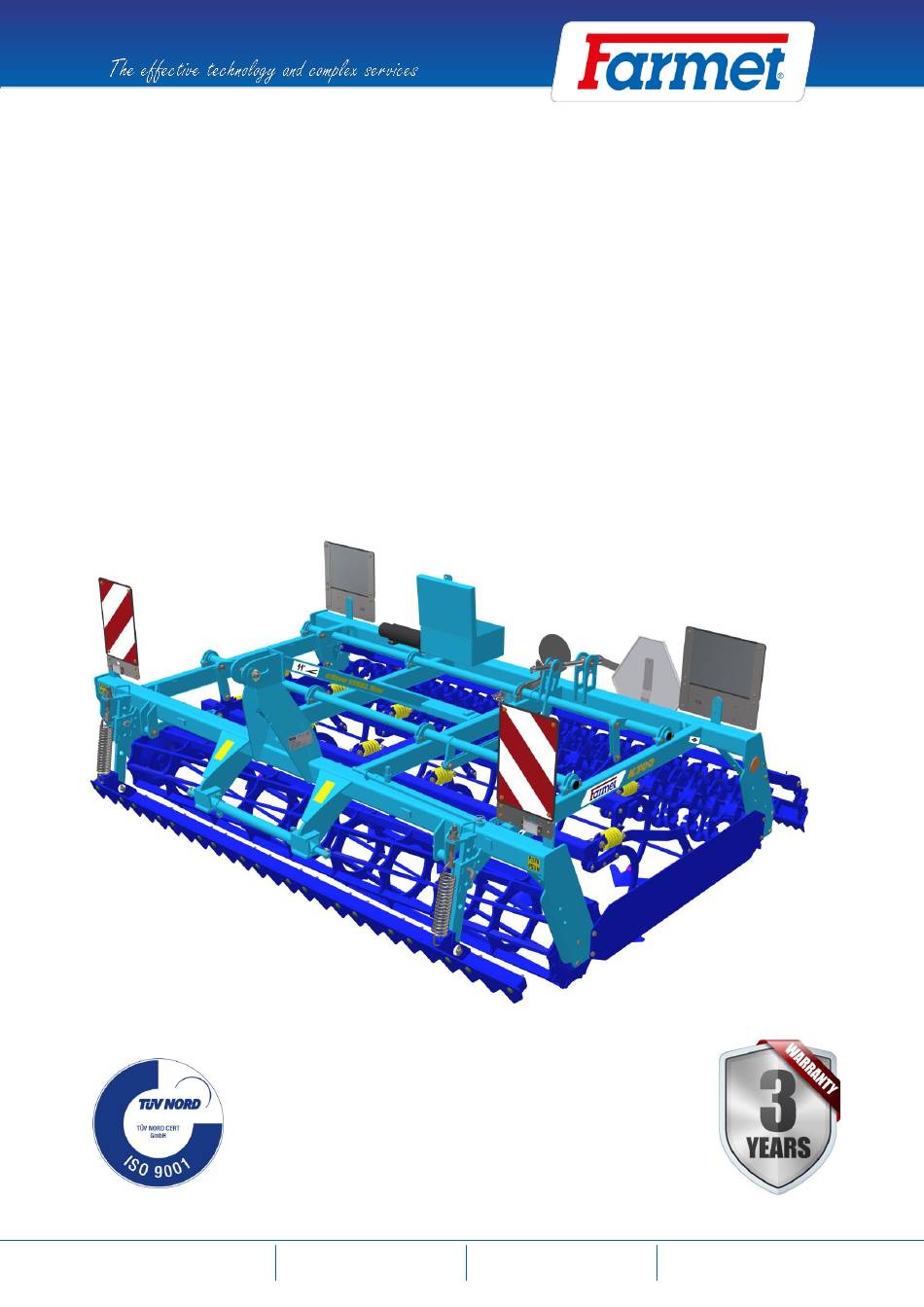

OPERATING MANUAL
KOMPAKTOMAT
K250N | K300N
Farmet a. s.
Jiřinková 276
552 03 Česká Skalice, CZ
MOUNTED
Edition: 14 | effective from: 1. 1. 2025
phone: +420 491 450 111
GSM:
+420 774 715 738
Id. No.:
46504931
Tax Id. No.: CZ46504931
web:
www.farmet.eu
e-mail: dzt@farmet.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KOMPAKTOMAT K250N and is the answer not in the manual?

Questions and answers

Related Manuals for Farmet KOMPAKTOMAT K250N

Summary of Contents for Farmet KOMPAKTOMAT K250N

  • Page 1 OPERATING MANUAL MOUNTED KOMPAKTOMAT K250N | K300N Edition: 14 | effective from: 1. 1. 2025 Farmet a. s. phone: +420 491 450 111 Id. No.: 46504931 web: www.farmet.eu Jiřinková 276 GSM: +420 774 715 738 Tax Id. No.: CZ46504931 e-mail: dzt@farmet.cz...
  • Page 2 The production label is located on the side of the frame. All spare parts should be ordered according to the official Spare Part Catalogue issued by Farmet a.s., Česká Skalice, Czech Republic.

  • Page 3: Table Of Contents

    Manual KOMPAKTOMAT K250N. | K300N - CONTENTS Page 3 - CRITICAL PARAMETERS Page 4 SAFETY WARNING Page 4 - A. GENERAL INSTRUCTIONS FOR USE Page 4 PROTECTIVE EQUIPMENT Page 5 - B. TRANSPORTING THE MACHINE BY VEHICLES Page 5 - C. MANIPULATING THE MACHINE BY LIFTING EQUIPMENT Page 6 - D.

  • Page 4: Critical Parameters

    Manual KOMPAKTOMAT K250N. | K300N CRITICAL PARAMETERS OF THE MACHINE • The machine is to be used for presowing preparation of soil after ploughing or stubble breaking with working depth from 0 mm to 100 mm for soil cultivation in agriculture. Other uses exceeding the determined purpose is forbidden.

  • Page 5: Protective Equipment

    Manual KOMPAKTOMAT K250N. | K300N (18) During machine work in the field or during transport, the operator must control the machine from the tractor's cabin. (19) The operator may only enter the construction of the machine when the machine is off and secured against movement only in order to: •...

  • Page 6: Manipulating The Machine By Lifting Equipment

    Manual KOMPAKTOMAT K250N. | K300N The lifting equipment and binding instruments intended for manipulation with the machine must have at least the same bearing capacity as the weight of the manipulated machine is. The machine may only be attached for manipulation in designated places marked by stick-on labels showing a “chain”.
  • Page 7 Manual KOMPAKTOMAT K250N. | K300N Do not approach the rotary parts of P 53 H the machine unless they are standing still, i.e. they are not rotating. Lubrication places on the machine Slope accessibility of the machine Places safe for suspension of the machine by a lifting device 7 │...
  • Page 8 Manual KOMPAKTOMAT K250N. | K300N Picture 1 - Warning labels on the machine P53H, P37H P53H, P37H P1H, P2H, P6H P1H, P2H, P6H P53H, P37H P53H, P37H 8 │ 28...

  • Page 9: Description Of The Machine

    Manual KOMPAKTOMAT K250N. | K300N 1. MACHINE DESCRIPTION The machine is structurally designed as mounted by the rear three-point suspension of the tractor. The basic version of the machine consists of a supporting frame with a three-point suspension of Category 2 and from the working parts of the machine.
  • Page 10 Manual KOMPAKTOMAT K250N. | K300N RR - Ring Roller 40 cm - 115 kg/m Quality work in all types of soil, good depth guiding, suitable for more humid soils. SR - Segmented Roller 40 cm - 115 kg/m Excellent work in medium and heavy hard soils, good clod crumbling, good depth guiding.

  • Page 11: Finishing Operations

    Manual KOMPAKTOMAT K250N. | K300N REAR WORKING ROLLERS BR - Bar Roller - 40 cm - 60 kg/m Included in the equipment of the STANDARD MACHINE VERSION, as a front roller. High-quality clod crumbling. Not suitable for humid conditions. SB - Spiral Bar Roller - 40 cm - 60 kg/m Quality clod crumbling.

  • Page 12: Assembly Of The Machine At The Customer's Site

    Manual KOMPAKTOMAT K250N. | K300N REAR FINISHING LEVELLING BAR Included in the equipment of the STANDARD MACHINE VERSION. The levelling bar behind the rear roller levels and evenly spreads the loosened soil. Levelling Bar Stops Included in the equipment of the STANDARD MACHINE VERSION.

  • Page 13: Aggregation To The Tractor

    Manual KOMPAKTOMAT K250N. | K300N ▪ The operator must observe the prescribed working depths and speeds set in the operating manual when working with the machine. The operator must lower the machine to the ground and secure the set against movement before leaving the ▪...

  • Page 14: Transporting The Machine On Ground Communications

    Manual KOMPAKTOMAT K250N. | K300N 4. TRANSPORTING THE MACHINE ON GROUND COMMUNICATIONS ▪ The operator shall observe the lowest indicated transport speed during transport and the lowest indicated slope accessibility of the entire set. ▪ The operator must drive with increased caution when transporting the machine on ground communications dues to the transport dimensions of the machine.

  • Page 15: Adjusting The Working Parts Of The Machine

    Manual KOMPAKTOMAT K250N. | K300N 5. ADJUSTING THE WORKING PARTS OF THE MACHINE 5.2- SETTING THE WORKING DEPTH OF SHARES 5.3- SETTING THE HEIGHT OF THE 5.1- SPRING- LEVELLER AFTER SHARES MOUNTED REAR 5.1 ADJUSTING THE SPRING-MOUNTED FRONT LEVELLER - The height of the front leveller may be adjusted as well as the spring force of the leveller.

  • Page 16: Adjusting The Depth Of The Share Section

    Manual KOMPAKTOMAT K250N. | K300N Picture 4- height leveller adjustment Picture 5- adjustment of the front leveller spring Release the securing peg Tension screw of prior to height adjustment the leveller spring Securing peg Leveller spring Lever for setting the leveller height Přední...

  • Page 17: Adjusting The Leveller Height Behind Shares

    Manual KOMPAKTOMAT K250N. | K300N Picture 7 – Setting the processing depth Chart 2 – Approximate processing depth acc. to crops CROP DEPTH Beet 2-3 cm Rape 3-5 cm Wheat, barley, oats 5-8 cm 5.3 ADJUSTING THE LEVELLER HEIGHT BEHIND SHARES •...

  • Page 18: Setting The Pressure Of The Finishing Roller

    Manual KOMPAKTOMAT K250N. | K300N 5.4 SETTING THE PRESSURE OF THE FINISHING ROLLER ➢ The pressure mechanism of the finishing roller allows you to adjust the traction of the traction spring in three positions. ➢ To change the traction, use the level provided which you fix to the spring seating segment and shift along the rack with a swaying movement.

  • Page 19: Lubrication Plan For The Machine

    Manual KOMPAKTOMAT K250N. | K300N ▪ If you have to weld during the repair and have the machine attached to the tractor at the same time, the supply cables have to be disconnected from the alternator and accumulator. ▪ Keep the machine clean.

  • Page 20: Replacement Of The Working Roller Bearings

    Manual KOMPAKTOMAT K250N. | K300N MECHANICAL PROTECTION AGAINST THE FALL OF THE MACHINE 6.3 REPLACEMENT OF THE WORKING ROLLER BEARINGS ➢ Always follow the safety regulations and directives when replacing the bearings of rollers. ➢ The machine must be aggregated with the tractor according to Chapter “3.1/p.13” when replacing the bearings.

  • Page 21: Using The Tool For Bearing Disassembly And Assembly

    Manual KOMPAKTOMAT K250N. | K300N 6.3.1 Using the tool for bearing disassembly and assembly ➢ The tool placed in the box on the machine. Tool parts: Tool pin Liner Tool body Part for disassembling Part for disassembling +bolts the bearing or bearing...

  • Page 22: Complete Bearing Disassembly

    Manual KOMPAKTOMAT K250N. | K300N 6.3.1.1 Complete bearing disassembly ➢ Procedure: .1 Mount and screw the tool pin onto the cylinder pin. .2 Screw the tool body in, insert the part for bearing disassembly and mount onto the bearing using the nuts.

  • Page 23: Disassembly Of The Ring

    Manual KOMPAKTOMAT K250N. | K300N 6.3.1.2 Disassembly of the ring ➢ Procedure: .1 Mount and screw the tool pin onto the cylinder pin. .2 Screw the tool body, mount the part for disassembling the bearing, mount the part for disassembling the ring and attach it using the nuts.

  • Page 24: Assembling Bearings Onto Pins

    Manual KOMPAKTOMAT K250N. | K300N 6.3.1.3 Assembling bearings onto pins ➢ Procedure: .1 Mount and screw the tool pin onto the cylinder pin. .2 Mount the bearing + liner and screw the tool body in. .3 Assemble the bearing by screwing the tool body using spanner size 36.

  • Page 25: Using Spacer

    Manual KOMPAKTOMAT K250N. | K300N 6.3.2 Using spacer ➢ The spacers are used for defining production tolerances. Therefore, they do not have to be always used. Mount the house bearings to the rollers Insert the roller with the bearings between the frame side plates and assess whether you need to...

  • Page 26: Extra Machine Equipment

    - When using the machine with extra equipment, always observe the safety regulations - The extra equipment is designed to be used on the Farmet Kompaktomat machines 7.1 HYDRAULIC LEVELLERS = continuous control of the front leveller height from the driver’s position (Chapter 5.1)

  • Page 27: Machine Disposal After Its Service Life

    9.2.5 The warranty is limited to disassembly and assembly, replacement, or repair of the defective part. The decision on whether the defective part will be replaced or repaired lies with the manufacturer, Farmet. 9.2.6 During the warranty period, repairs or other interventions on the machine may only be carried out by an authorized service technician of the manufacturer.

  • Page 28: Ce Certificate Of Conformity

    2019/004/02 ES PROHLÁŠENÍ O SHODĚ CE CERTIFICATE OF CONFORMITY EG-KONFORMITÄTSERKLÄRUNG DÉCLARATION CE DE CONFORMITÉ СЕРТИФИКАТ СООТВЕТСТВИЯ ЕС DEKLARACJA ZGODNOŚCI WE Farmet a.s. Nous Мы Jiřinková 276 552 03 Česká Skalice Czech Republic DIČ: CZ46504931 Phone: +420 491 450 111 Vydáváme na vlastní zodpovědnost toto prohlášení.

This manual is also suitable for:

Kompaktomat k300n
