CROSS LINE LASER LEVEL
RH-9500

Advertisement

loading
Need help?

Need help?

Do you have a question about the RH-9500 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix RH-9500

Summary of Contents for Ronix RH-9500

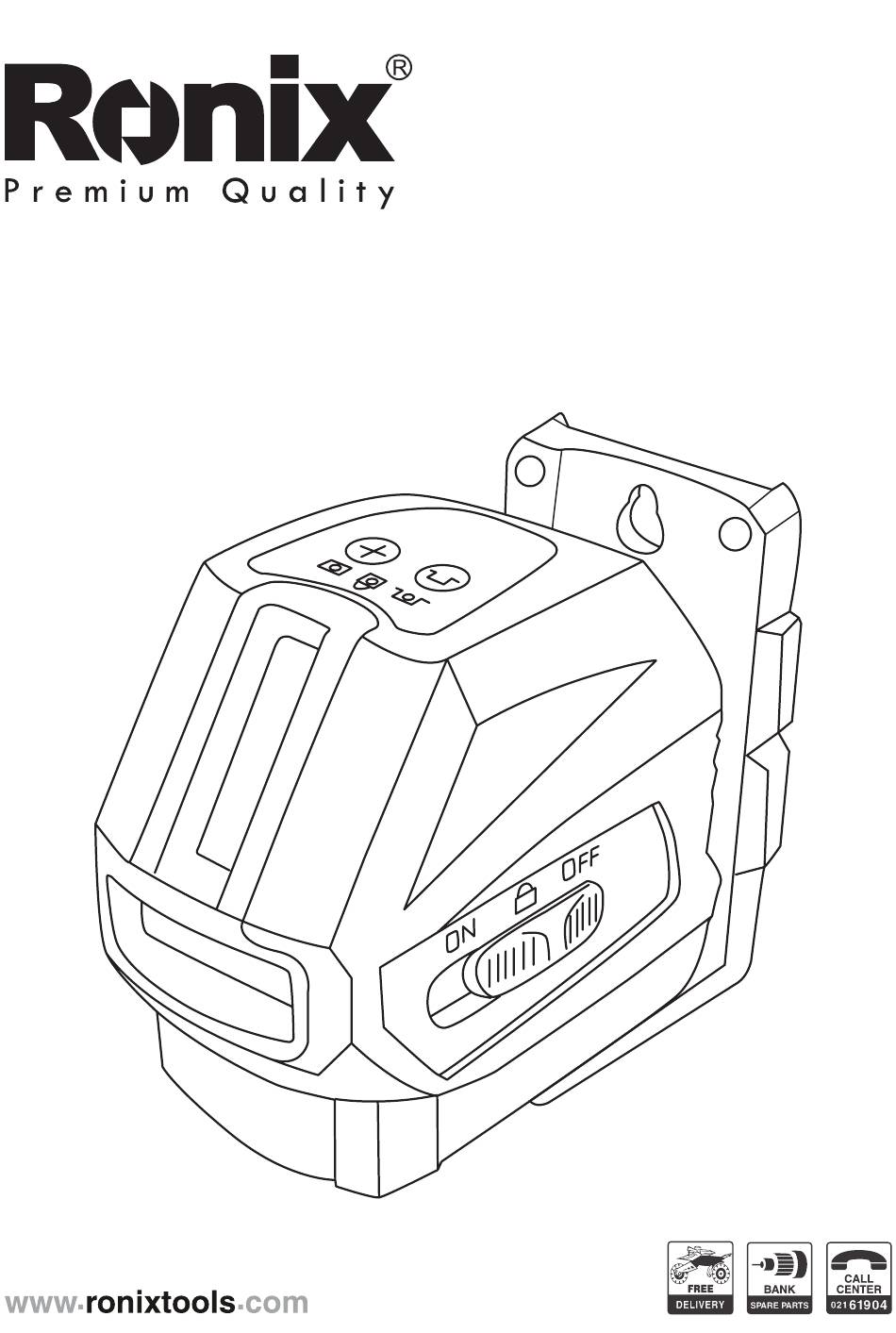

  • Page 1 CROSS LINE LASER LEVEL RH-9500...

  • Page 2: Specifications

    SPECIFICATIONS Model RH-9500 Accuracy of horizontal line ± 2 mm@ 5m Vertical accuracy ± 2 mm@ 5m Leveling Range 4°±0.5° Working Range/ 15m/50m with detector With Detector Tripod Thread 1/4 " Laser Type 635 nm, laser class II Operating Temperature -10°to 45°C...
  • Page 3 Pulse Green Led Horizontal Line OFF-LOCK-ON-Switch Line Option Pluse Mode Low Battery Pluse Green Led Lock Led Wall Bracket Battery Compartment Magnetic Bracket 3×AA Batteries CROSS LINE LASER LEVEL...

  • Page 4: Operating The Unit

    Please read this instruction manual before first use. WHAT IS INCLUDED WITH YOUR RED BEAM LASER 1- Instrument 2- Magnetic bracket and wall bracket 3- Alkaline batteries 4- User manual 5- Plastic Case OPERATING THE UNIT PENDULUM LOCK The 1V1H Red beam laser level is a precision instrument and should be treated with care.

  • Page 5: Low Battery Alarm

    of level, the unit will be in automatic leveling range, in this situation no LED light will be on. Should the base of the unit be outside the 4 o level- ing range the laser beam will flash meanwhile an audibly warning will be sent out from Cross Line Laser.
