Ronix RH-9536 Quick Start Manual

3d laser level
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

3D LASER LEVEL
RH-9536

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RH-9536 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix RH-9536

Summary of Contents for Ronix RH-9536

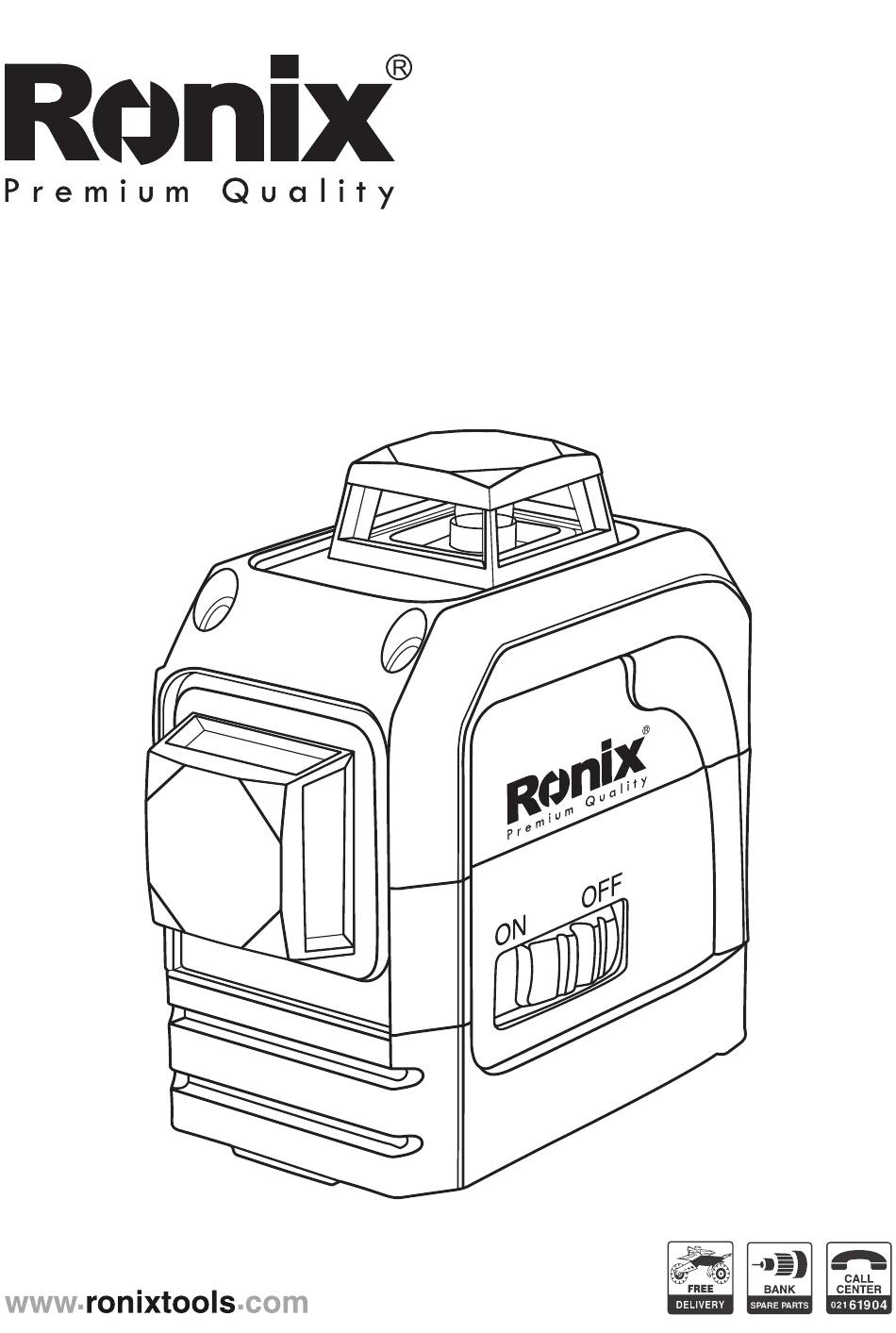

  • Page 1 3D LASER LEVEL RH-9536...

  • Page 2: Specification

    SPECIFICATION Model RH-9536 Accuracy ±2mm @ 5m Leveling Range ±3.5° Working Range 15m (Indoor) Tripod Thread 1/4" Laser Type 635 nm, laser class II Operating Temperature -10°C to 50°C Storage Temperature -20°C to 60°C Dimension 115 × 68 × 107mm...

  • Page 3: Line Selection

    LEFT SIDE: AUTOMATIC LEVELING When the pendulum is unlocked (figure 2), the pendulum is free to automatically level, In order for the Cross Line Laser to automatically level, the base of the unit needs to be within 5°of level. FIGURE 2 LINE SELECTION By pressing Line Selection Button can make a various change/ collocation of laser lines.

  • Page 4: Low Battery Alarm

    LOCK EMITTING When our 3D laser is in the mode of Pendulum Lock (switch bar at right side). By pressing/holding line selection button for 3 seconds to activate Lock Emitting mode. Line will come out from laser but be aware at this mode the laser itself is out of accuracy as the pendulum is locked.
