Summary of Contents for Ronix RH-9504

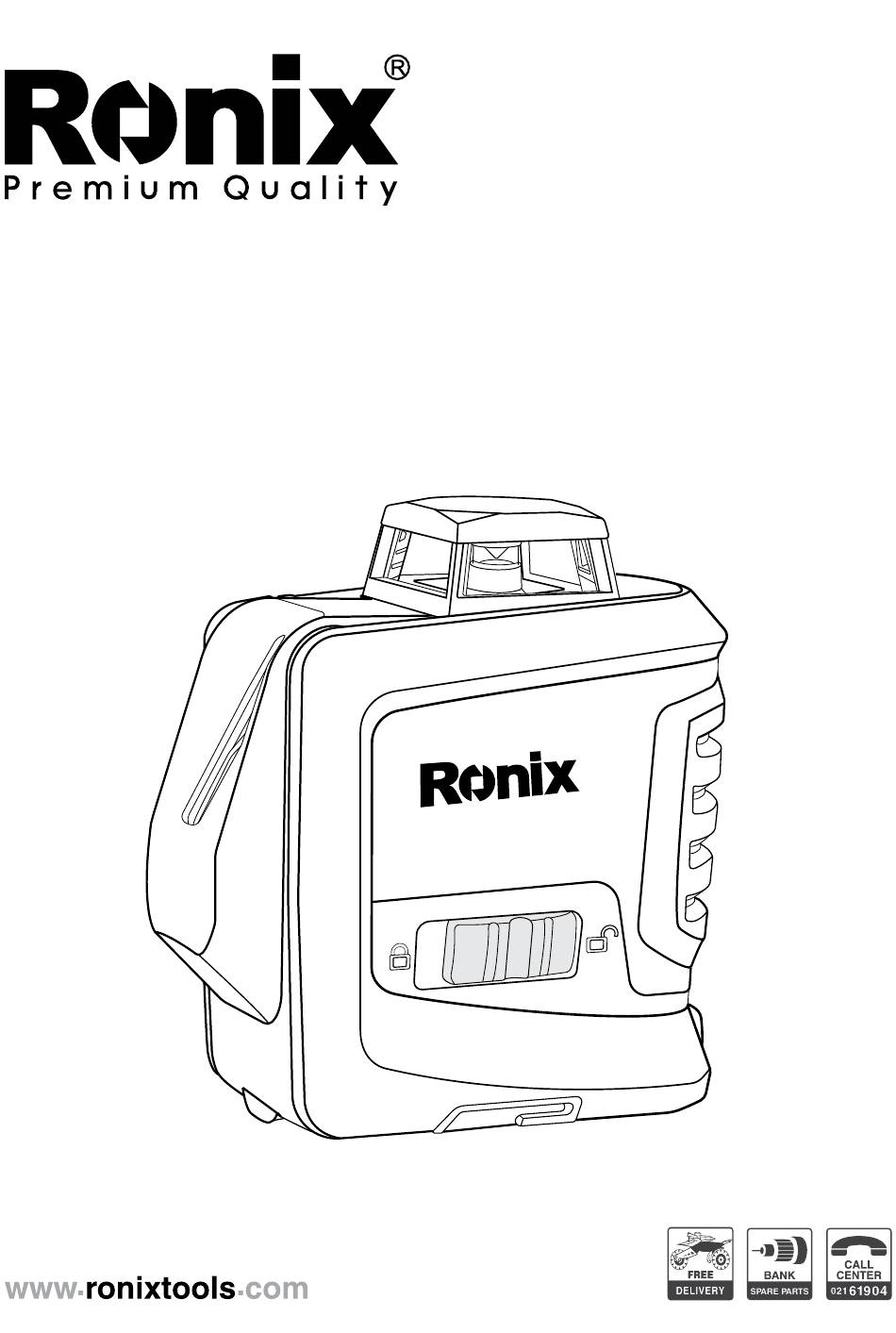

- Page 1 LASER LEVEL WITH PLUMBING DOT RH-9504...
-
Page 2: Specifications
SPECIFICATIONS Model RH-9504 Accuracy ±2mm/5m Leveling Range ±3° Working Range/ with 15m & 50m(with detector) Detector Tripod Thread ¼" Laser Type laser class II Operating Temperature -10 to 45° wavelength 638nm Dimension 115×77×120/mm Continuous Working Time >8 hour Protection Class Spray... -
Page 3: How To Operate The Unit
HOW TO OPERATE THE UNIT? RIGHT SIDE: PENDULUM LOCK The laser level with plumbing Dot is a precision instrument and should be treated with care. When not in use, the pendulum should always be in the OFF position To lock the pendulum allows the cross line laser to better withstand vibration and trauma incurred during transportation or if the unit is dropped Fig1 LEFT SIDE –... - Page 4 KEYPAD TURN ON WHEN LASER IS SWITCHED ON -Press line button for 1 time, V on, V2 and H off. -Press line button for 2nd time, V2 and V1 on, and H off. -Press line button for 3th time, all V1, V2 and H on. BATTERY -This device can be used for AA alkaline batteries(6V) USER MANUAL...
