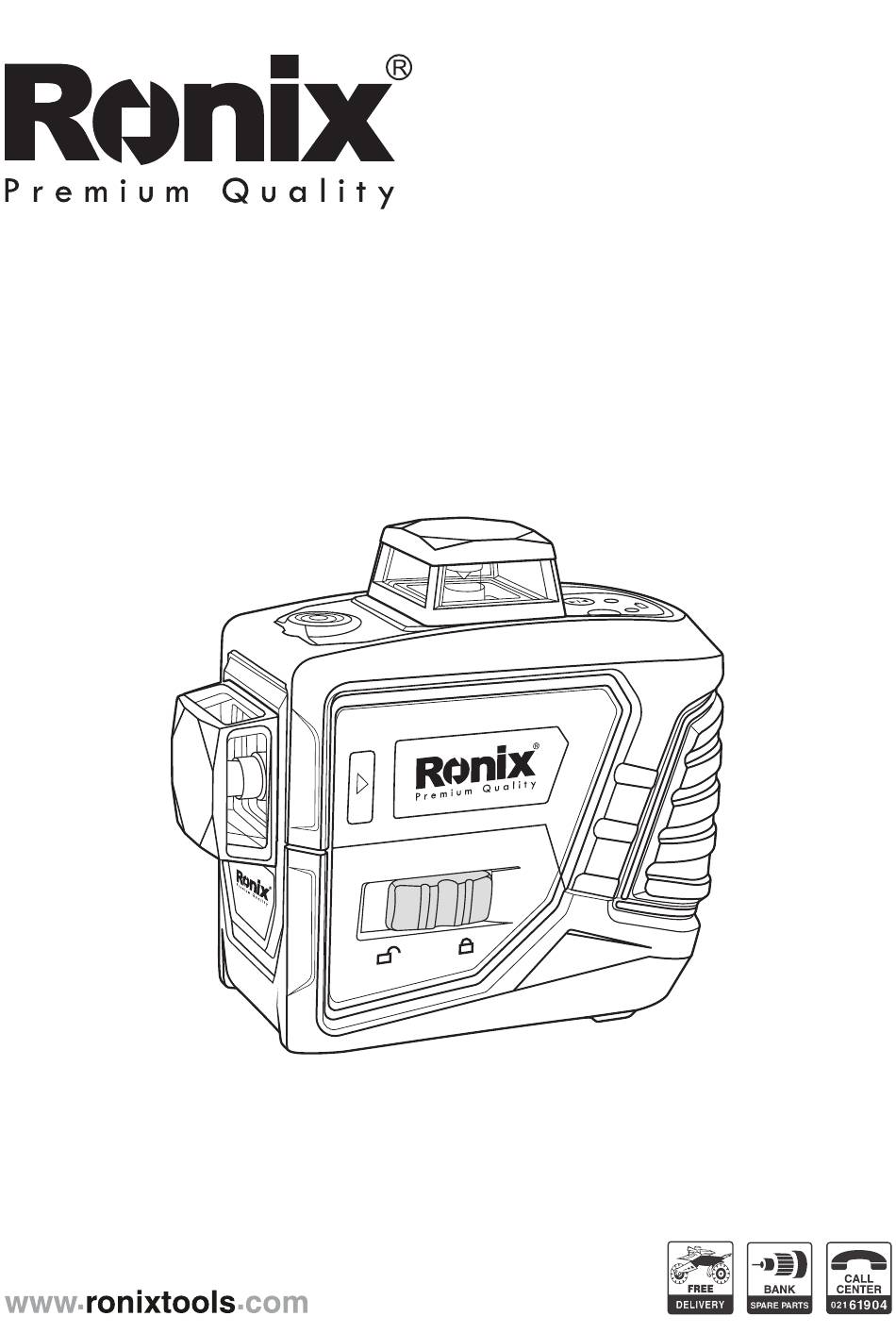

- Page 1 3D LASER LEVEL RH-9537...
- Page 2 SPECIFICATIONS Model RH - 9537 Accuracy ±2mm/5m Leveling range ±2.5° Working range/ with detector 15m/70m ( working with laser receiver) Tripod thread ¼" & 5/8" Laser type laser class II Operating temperature -10°c to 50°c wavelength 660nm Dimension 132 x 85 x 127/mm3 Continuous working time >15 hour Protection class spray water/ dust...
- Page 3 LEFT SIDE – AUTOMATIC LEVELING When the pendulum is unlocked (figure2) the pendulum is free to automatically level, in order for the cross line laser to automatically level, the base of the unit needs to be within 5° of level. Figure 2 Switch Bar 1/4"...
- Page 4 KEYPAD A-PLUS INDICATOR B- PULSE BUTTON When pulse is on, this indicator A will turn to red, at this moment laser line can be pick up by laser receiver. Press this key C again to turn off the pulse function and the light will be off. C- POWER INDICATOR When switch on the laser the power indicator will be in continuous light up.
- Page 5 BATTERY THIS DEVICE CAN BE USED FOR AA ALKALINE BATTERIES(1.5V) AND LITHIUM BATTERIES. Li-ion Battery 1.5V 4 Batteries CHARGER Lithium battery can be charged when not use. Put it onto the charge box that comes with the kit and connect it with power adaptor to charge the battery. Li-ion Battery Charger Box Adaptor...
- Page 6 BENEFIT FEATURE LOCK EMITTING When our 3D laser is in the mode of pendulum lock ( switch bar at the right side) By pressing/holding line selection botton for 3 seconds to activate lock emitting mod. Line will come out from laser but be aware at this mode the laser itself is out of accuracy as the pendulum is locked.
