Kohler Elevation 12949T-7 Installation Instructions

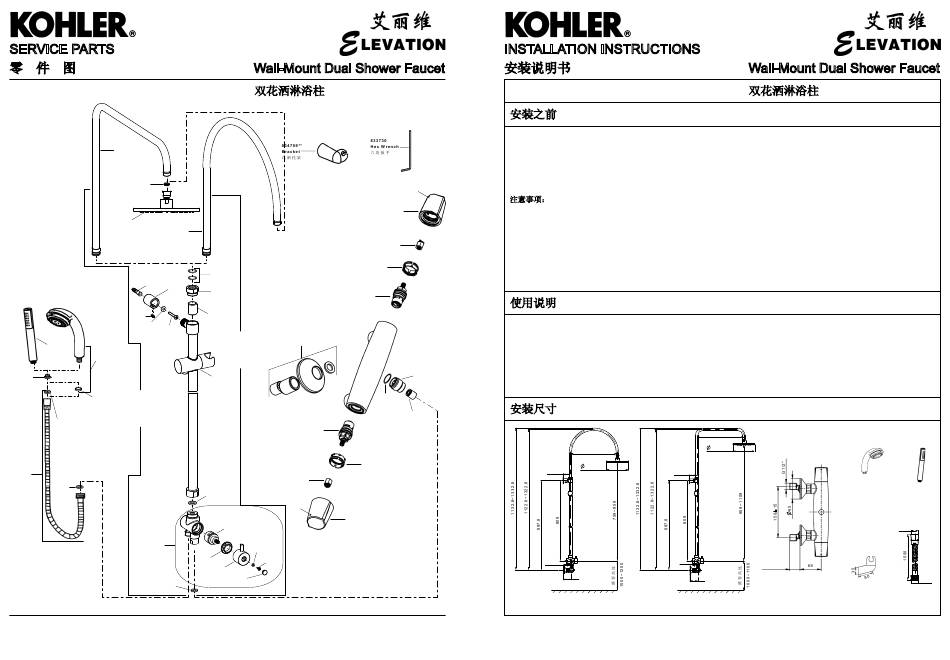

SERVICE PARTS
零 件 图
12949T-7
1121294**
Straight Tube Kit
直角弯管组件
1030624
Flow Regulator
限流器
1122927**
Showerhead
1121282**
花洒头
Curved Tube Kit
弧形弯管组件
1082904
1121284**
Anchor
Base
胀塞
底座
833438
Screw
螺钉
1092935
1109469
Washer
Screw
垫片
螺钉
836979**
836725**
Handspray
Handspray
手持花洒
手持花洒
(仅用于12949T-7)
(仅用于12951T-7)
880091
Restrictor
限流器
1145849**
Straight Shower Column
880015
With Diverter
Washer
垫片 直角带切换器的淋浴杆
(Only for 12951T-7)
880010
(仅用于12951T-7)
Washer
垫片
(仅用于12949T-7)
831727**
Hose
软管 880010
Washer
垫片
1153165**
Diverter Kit
切换器组件
3007075
Washer
垫片
**订购时请说明颜色编号
**Color code must be specified when ordering
1124467-2/Rev01
中国北京市密云县果园西路27号 邮编:101500
Wall-Mount Dual Shower Faucet
12951T-7
双花洒淋浴柱
870916
Rachet Ring
70012
棘齿圈
O-ring
O型圈
1121286**
834677
Adjust Nut
Valve
调节螺母
阀芯
1121285
Clamp sleeve
夹紧套圈
833351**
1145847**
Connection Kit
Curved Shower Column
连接套件
With Diverter
弧形带切换器的淋浴杆
(Only for 12949T-7)
(仅用于12949T-7)
1109471**
Shower Bracket
花洒挂架
833405
Valve
阀芯
870916
Rachet Ring
棘齿圈
871132
Adapter
齿套
1054023
871413
Washer
Red Pin
垫片
红销钉
3002320**
Handle
1137477
把手
Diverter Valve
切换阀
832940
Lock Washer
防滑垫片
831931
1137478**
Screw
Nut
螺钉
1111579**
834401**
螺母
Handle Kit
Cap
把手组件
盖帽
北京科勒有限公司
INSTALLATION INSTRUCTIONS
安装说明书
安装之前
所有的资料是按最新出版的产品资料编写而成。科勒公司
保留任何时候不经通知即可改变产品特性、包装或产品可
供类型的权利。
说明书包括重要的安装、保养及清洁方面的内容，请把这
些资料交给用户阅读。
871412
Blue Pin
蓝销钉
注意事项：
3002320**
1.切断供水管路。
Handle
把手 2.检查供水管路有无损坏。如需要，进行替换。
3.遵守当地管路安装条例。
871132
Adapter 4.花洒最高工作压力：0.5Mpa(5bars)。水压超过
齿套
0.5Mpa(5bars)须安装减压阀。花洒最高工作温度及环境
。
温度：60 C。请特别注意花洒须远离加热器，否则可能损
坏花洒，甚至对使用者造成伤害。
使用说明
向下旋转两把手为开，向上旋转两把手为关。
淋浴柱的切换把手竖直向上，手持花洒出水；竖直向下，
头部花洒出水；处于上下之间任一位置时，头部花洒和手
持花洒同时出水。
864922**
Bush
接头
870721
O-ring
安装尺寸
O型圈
831752
Check Valve
单向阀
57~68
G1/2"
Finished Floor
装修好的地面
12949T-7
4 1124467-2/Rev01
Wall-Mount Dual Shower Faucet
12949T-7 12951T-7
双花洒淋浴柱
BEFORE YOU BEGIN
All information is based on the latest product information
available at the time of publication. Kohler Co. reserves the
right to make changes in product characteristics, packaging,
or availability at any time without notice.
Please leave these instructions for the consumer. They
contain important information.
NOTES:
1. Shut off the water supplies to the fitting.
2. Inspect the supply tubing for damage. Replace as
necessary.
3. Observe local plumbing codes.
4. The highest working pressure for showerhead & handspray
is 0.5 Mpa(5 bars). If it exceeds 0.5Mpa(5 bars), a pressure
reducer is needed. The highest water and environment
temperature is 60 C. Please keep showerhead & handspray
away from heater, or maybe damage it and hurt user.
OPERATION INSTRUCTIONS
Both handles open with turning downwards, close with
turning upwards.
Turn the diverter handle to the vertical upwards, water will
flow from the handspray; turn it to the vertical downwards, the
showerhead will work; turn it to the position between the
vertical upwards and the vertical downwards, water will flow
the showerhead and the handspray.
ROUGH-IN DIMENSIONS
400
203.2 (8")
400
203.2 (8")
57~68
34 34
G1/2"
68
68
Finished Floor
装修好的地面
12951T-7
北京科勒有限公司
中国北京市密云县果园西路27号 邮编:101500
。
Three-way Handspray Handspray
三功能花洒 单功能花洒
G1/2"
25~28
G1/2"
1
