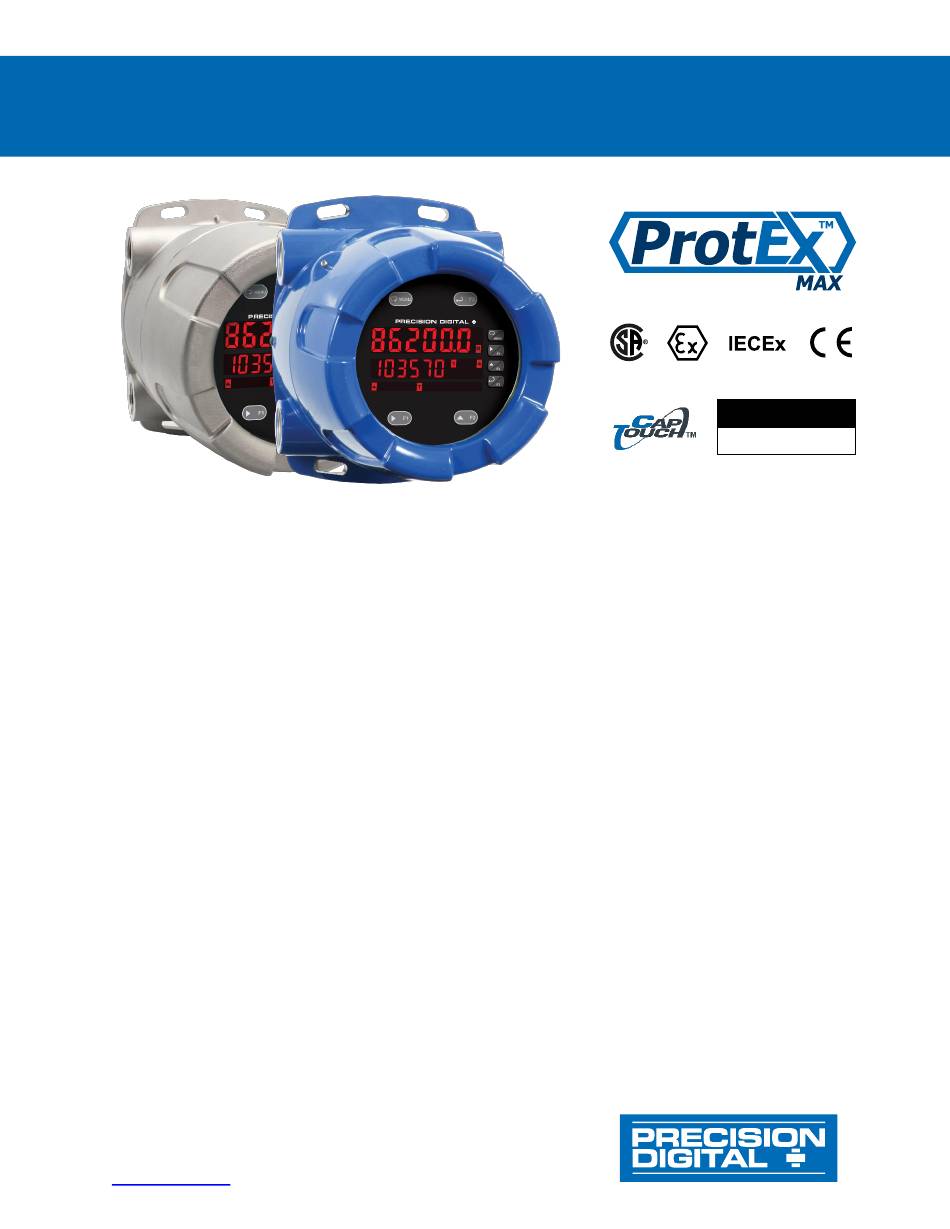

PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer
Instruction Manual
•
Fully Approved Explosion-Proof Analog Input Flow Rate/Totalizers
•
0-20 mA, 4-20 mA, 0-5 V, 1-5 V, and ±10 V Inputs with ±0.03% Accuracy
•
Dual-Line 6-Digit Display, 0.60" (15.2 mm) & 0.46" (12.0 mm)
•
CapTouch Through-Glass Button Programming
•
Display Mountable at 0°, 90°, 180°, & 270°
•
Isolated 24 VDC @ 25 mA Transmitter Power Supply
•
Easy Field Scaling in Engineering Units without Applying an Input
•
4 Relays with Interlocking Capability + Isolated 4-20 mA Output Option
•
Free PC-Based, On-Board, MeterView Pro USB Programming Software
•
SunBright Display Standard Feature; Great for Outdoor Applications
•
Display Rate & Total at the Same Time
•
Rate in Units per Second, Minute, Hour, or Day
•
Total, Grand Total or Non-Resettable Grand Total
•
Front Panel or Remote Total Reset
•
Password Protection for Total Reset
•
Total Stored in Non-Volatile Memory
•
Assign Any Relay for Rate or Total
•
4-20 mA Output for Rate or Total
•
Display Open Channel Flow with Programmable Exponent Feature
•
32-Point Linearization & Square Root Extraction
•
Operating Temperature Range: -55 to 65°C (-67 to 149°F)
•
CSA Certified as Explosion-Proof / Dust-Ignition-Proof / Flame-Proof
•
ATEX and IECEx Certified as Dust-Ignition-Proof / Flame-Proof
•
Input Power Options: 85-265 VAC / 90-265 VDC or 12-24 VDC / 12-24 VAC
•
Programmable Display, Function Keys & Digital Inputs
•
Flanges for Wall or Pipe Mounting
•
Explosion-Proof Aluminum or Stainless Steel NEMA 4X / IP68 Enclosures
•
On-Board RS-485 Serial Communications
•
Modbus
®
RTU Communication Protocol Standard
•
Password Protection
•
Four 3/4" NPT Threaded Conduit Openings
•
Stainless Steel Pipe Mounting Kit and Tag Available
•
3-Year Warranty
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • (508) 655-7300
www.predig.com
MeterView Pro
USB Install
Advertisement
Table of Contents
Related Manuals for Precision Digital Corporation ProtEX-MAX PD8-6200-6H0-SS
Summary of Contents for Precision Digital Corporation ProtEX-MAX PD8-6200-6H0-SS
- Page 1 • Password Protection • Four 3/4" NPT Threaded Conduit Openings • Stainless Steel Pipe Mounting Kit and Tag Available • 3-Year Warranty PRECISION DIGITAL CORPORATION 233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • (508) 655-7300 www.predig.com...
- Page 3 Limited Warranty Precision Digital Corporation warrants this product against defects in material or Watch MeterView Pro Software Video at workmanship for the specified period under “Specifications”...
-
Page 4: Table Of Contents
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Table of Contents Introduction ......................7 Ordering Information ..................7 Key Features ....................... 9 Specifications ....................17 General ......................17 Process Inputs ..................... 18 Rate/Totalizer ....................18 Relays ......................19 USB Connection ................... 19 Isolated 4-20 mA Transmitter Output ............ - Page 5 PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Setting the Relay Operation (relay) ............43 Relay Assignment (Assign) ............... 43 Setting the Relay Action ................43 Programming Set and Reset Points ............44 Setting Fail-Safe Operation ................ 44 Programming Time Delay ................44 Relay Action for Loss of 4-20 mA Input (Loop Break) ........
- Page 6 PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Table of Figures Figure 1. Enclosure Dimensions – Front View ..........24 Figure 2. Enclosure Dimensions – Side Cross Section View ....... 24 Figure 3. Transmitter Supply Voltage Selection ..........27 Figure 4. Integrated P Required Connections ........
-
Page 7: Introduction
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Introduction Ordering Information The ProtEX-MAX PD8-6200 is an explosion-proof, Aluminum Enclosure analog input flow rate/totalizer ideal for flow rate, total 85-265 VAC Models and control applications. The meter features a dual-line display, with a main display 0.60" (15.2 mm) Options Model Standard Features... - Page 8 PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Helpful Videos Connect to PC for Programming Learn how to connect a ProVu (ProtEX-MAX) process There are several videos that will help you get a meter to your PC and install free MeterView Pro better understating of the features and functionality of programming software.
-
Page 9: Key Features
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Key Features • Form C (SPDT) relays • Two isolated supplies available even on 12/24 VDC input power models • Removable terminal blocks • 4 relays + isolated 4-20 mA output option •... - Page 10 PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Easy Programming Methods Advanced Display Features The ProtEX-MAX can be programmed in a hazardous Display Flow Rate, Total or Grand Total area with the through-glass CapTouch buttons without The main display can be programmed to display flow removing the cover, in a safe area with the front panel rate, total, or grand total, and the second display can push buttons with the cover removed, or in a safe...
- Page 11 PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Rate/Totalizer Features Total & Rate Alarms The ProtEX-MAX can be equipped with four alarms ProtEX-MAX flow rate/totalizers can be programmed (relays) that can be set up to activate on the rate or for a wide variety of rate and totalizer applications.
- Page 12 PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Total Reset Capabilities Sampling Function (PV Triggered Timed Relay) The user may reset the total via a CapTouch button, the F4 terminal at the back of the meter, an external The sampling function allows the operator to program a set point for a “sampling”...
-
Page 13: Physical Features
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Physical Features Wide Viewing Angle Customers can’t always look at the display from The ProtEX-MAX is designed for ease-of-use in safe straight on, so the window and display module have and hazardous area applications, and is housed in a been optimized to provide a wide viewing angle of rugged NEMA 4X explosion-proof enclosure, approximately ±40°;... -
Page 14: Hazardous Area Approvals
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Rotatable Display Removable Screw Terminals The ProtEX-MAX rotatable display, along with four Industrial applications require screw terminal available conduit connections, provide for numerous connections for easy field wiring and the ProtEX-MAX installation options. The display can be rotated in 90° goes one step further in convenience by also making increments. - Page 15 PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Transmitter Power Supplies Meter Powers Transmitter One of the most useful standard features of the PD8-6200 is its built-in isolated, 24 V @ 25 mA power supply to power the transmitter. This feature saves money by eliminating an external power supply and also simplifies wiring by reducing the number of devices in the loop.
-
Page 16: Useful Tools
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Useful Tools PD9501 Multi-Function Calibrator This PD9501 Multi-Function Calibrator has a variety of signal measurement and output functions, including voltage, current, thermocouple, and RTD. PD9502 Low-Cost Signal Generator PD9502 is a low-cost, compact, simple to use 4-20 mA or 0-10 VDC signal generator. -
Page 17: Specifications
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Specifications Non-Volatile Total and Grand Total values, and all Memory programmed settings are stored in non-volatile memory for a minimum of ten Except where noted all specifications apply to years if power is lost. operation at +25°C. -
Page 18: Process Inputs
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Process Inputs Rate/Totalizer Inputs Field selectable: 0-20 mA, 4-20 mA Rate Display -99999 to 999999, lead zero blanking. 10 V (0-5 V, 1-5 V, 0-10 V) “R” LED illuminates while displaying rate Indication Modbus PV (Slave) Time Base... -
Page 19: Relays
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Relays Isolated 4-20 mA Transmitter Output Rating Rating: 4 SPDT (Form C) internal and rated 3 A @ 30 VDC and 125/250 VAC resistive Output Rate/process, total, grand total, max, min, load, Total current: 4 A max (total of all Source set points 1-4, or manual control mode relays), 1/14 HP (≈... -
Page 20: Rs-485 Serial Communications
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual RS-485 Serial Communications Digital Inputs & Outputs Compatibility EIA-485 Function Terminals provided for remote operation of all four programming / operation buttons. Connectors Removable screw terminal connector Other uses include reset totals, Max Distance 3,937' (1,200 m) max acknowledge/reset relays and reset max/min values. -
Page 21: Enclosure
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual General Compliance Enclosure Information Material AL Models: ASTM A413 LM6 die-cast aluminum, copper-free, enamel coated SS Models: Electromagnetic Compatibility ASTM A743 CF8M investment-cast 316 stainless steel Emissions EN 55022 Class A ITE emissions requirements Gasket Fluoroelastomer Radiated... -
Page 22: Product Ratings And Approvals
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Product Ratings and Approvals Class I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G Class III, Division 1, T5 Class III, Division 1, T6 (Ta max = 60°C) Ex db IIC T5 Ex db IIC T6 (Ta max = 60°C) Ex tb IIIC T90°C... -
Page 23: Eu Declaration Of Conformity
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual EU Declaration of Unpacking Conformity Remove the meter from box. Inspect the packaging and contents for damage. Report For shipments to the EU and UK, a Declaration of damages, if any, to the carrier. Conformity was printed and included with the product. -
Page 24: Mounting
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Wall Mounting Instructions Mounting The meter can be mounted to any wall or flat surface The ProtEX-MAX has two slotted mounting flanges using the four provided mounting holes located in the that may be used for pipe mounting or wall mounting. built-in flanges. -
Page 25: Pipe Mounting Instructions
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Pipe Mounting Instructions Vertical Pipe Mounting Horizontal Pipe Mounting The meter can also be mounted to a pipe using an optional U-Bolt kit. This kit includes two U-bolts, the necessary hardware, and is available in 316 stainless steel (PDA6848-SS). -
Page 26: Installation Overview
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Once the driver is installed, an AutoPlay Installation Overview dialog should appear for the drive We recommend the following sequence for getting the “MAINSTAL.” Click “Open folder to view meter into service: files.”... -
Page 27: Transmitter Supply Voltage Selection (P+, P-)
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual To access the connectors, remove the enclosure Transmitter Supply Voltage cover. The electronics module is snapped into the Selection (P+, P-) back of the enclosure and is removed by pulling it straight out. Signal connections are made to All meters, including models equipped with the de-pluggable connectors on the back of the 12-24 VDC power option, are shipped from the... -
Page 28: Pro Vu U Electronics Module Layout
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Electronics Module Layout for PD8-6200-6H7 and PD8-6200-7H7* * For models PD8-6200-6H0 and PD8-6200-7H0 the upper set of connectors (RELAYs & MA OUT) are not present Figure 5. P Electronics Module Layout USB Connection Figure 6. - Page 29 PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual...
-
Page 30: Power Connections
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Power Connections Power connections are made to a two-terminal connector labeled POWER. The meter will operate regardless of DC polarity connection. The + and - symbols are only a suggested wiring convention. There are separate models for low voltage and high voltage power. -
Page 31: Signal Connections
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Signal Connections Relay Connections Signal connections are made to a six-terminal Relay connections are made to two six-terminal connectors labeled RELAY1 – RELAY4. Each relay’s connector labeled SIGNAL. The COM (common) terminal is the return for the 4-20 mA and the 10 V C terminal is common only to the normally open (NO) and normally closed (NC) contacts of the input signals. -
Page 32: Switching Inductive Loads
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Switching Inductive Loads RS-485 Connections The use of snubbers to suppress electrical noise is strongly recommended when switching inductive loads to prevent disrupting the microprocessor’s operation. The snubbers also prolong the life of the relay contacts. -
Page 33: Digital I/O Connections
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Digital I/O Connections 4-20 mA Output Connections Connections for the 4-20 mA transmitter output are made to the connector terminals labeled mA OUT. The 4-20 mA output may be powered internally or from an external power supply. -
Page 34: Setup And Programming
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Setup and Programming There is no need to recalibrate the meter when first received from the factory. The meter is factory calibrated prior to shipment for milliamps and volts with calibration equipment that is certified to NIST standards. Overview There are no jumpers to set for the meter input selection. -
Page 35: Programming Buttons
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Programming Buttons Button Symbol Description Press to enter or exit Programming Mode, view settings, or exit max/min readings Press to reset max/min readings or other parameter/function assigned through the User menu Press to display max/min readings or other parameter/function assigned through the User menu Press to acknowledge relays or other parameters/function assigned through the User menu... -
Page 36: Display Functions & Messages
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Display Functions & Messages Display Functions & Messages The meter displays various functions and messages Action/Setting Display Parameter during setup, programming, and operation. The Description following table shows the main menu functions and GT CF Grand total Program grand total... - Page 37 PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Display Functions & Messages Display Functions & Messages Action/Setting Action/Setting Display Parameter Display Parameter Description Description Disable relay and front Contrl Control Enter Control menu panel status LED Auto Automatic Press Enter to set relays (Select Off to enable and analog output for Interlock feature)
-
Page 38: Main Menu
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Main Menu Setting Numeric Values The main menu consists of the most commonly used The numeric values are set using the Right and Up functions: Reset, Control, Setup, and Password. arrow buttons. Press Right arrow to select next digit •... -
Page 39: Setting The Input Signal (Input)
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Setting the Input Signal (Input) Setting the Display Units or Custom Tags (units) Enter the Input menu to set up the meter to display current (nmA) or voltage (Volt) inputs. Use this menu to enter the unit or custom tag that will The current input is capable of accepting any signal be displayed if: from 0 to 20 mA. -
Page 40: Setting The Decimal Point (Dec. P T)
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Setting the Decimal Point (dEc. p t) Multi-Point Calibration & Scaling The meter is set up at the factory for 2-point linear The decimal point may be set with up to five decimal calibration. - Page 41 PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Error Message (Error) Time Base, Total Conversion Factor An error message indicates that the calibration or & Total Reset scaling process was not successful. The time base, total conversion factor, and total reset After the error message is displayed, the meter menus are located in the Program menu.
-
Page 42: Setting The Display Parameter & Intensity (Dsplay)
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Selecting engineering units or custom legends as the Setting the Display Parameter & secondary display (d unit) will display the unit or tag Intensity (dsplay) selected for the rate, total, or grand total displayed on The main display (Line 1) can be programmed to the main display. -
Page 43: Setting The Relay Operation (Relay)
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Relay Assignment (Assign) Setting the Relay Operation The relays can be assigned to any of the following (relay) parameters: This menu is used to set up the operation of the Rate for low or high alarm indication relays. -
Page 44: Programming Set And Reset Points
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Programming Set and Reset Relay Action for Loss of 4-20 mA Points Input (Loop Break) High alarm indication: program set point above reset A loop break condition is triggered when the 4-20 mA point. -
Page 45: Relay And Alarm Operation Diagrams
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual High Alarm with Fail-Safe Relay and Alarm Operation Operation (Set > Reset) Diagrams The following graphs illustrate the operation of the relays, status LEDs, and ACK button. High Alarm Operation (Set > Reset) Note: Relay coil is energized in non-alarm condition. -
Page 46: Time Delay Operation
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Time Delay Operation Total Relay Sampling Operation The following graphs show the operation of the time Total Preset = 100 delay function. Sample Sample Sample Time Time Time Relay When the total reaches the preset, the relay trips and the sample time starts. -
Page 47: Relay Operation Details
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Front Panel LEDs Relay Operation Details The alarm status LEDs on the front panel are Overview available on all meters, even those without relays The four-relays option for the meters expands its installed, and provide status indication for the usefulness beyond simple indication to provide users following:... -
Page 48: Non-Latching Relay (Auto)
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Non-Latching Relay (Auto) Latching Relay with Clear (LatcH) In this application, the meter is set up for automatic In this application, the meter is set up for manual reset (non-latching relay). Acknowledging the alarm reset at any time. -
Page 49: Acknowledging Relays
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Acknowledging Relays Pump Alternation Control Applications (Altern) There are three ways to acknowledge relays programmed for manual reset: For pump control applications where two or more Via the programmable front panel function keys similar pumps are used to control the level of a tank F1-F3 (Example: F3 assigned to ACK). -
Page 50: Setting Up The Interlock Relay (Force On) Feature
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Pump Alternation Visual Setting Up the Interlock Relay Representation (Force On) Feature The following graphics provide a visual representation Relays 1-4 can be set up as interlock relays. To set of a typical pump alternation application with high and up the relays for the interlock feature: low alarm monitoring: 1. -
Page 51: Scaling The 4-20 Ma Analog Output (Aout)
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Scaling the 4-20 mA Analog Reset Menu (reset) Output (Aout) The Reset menu is used to reset the totals and maximum or minimum reading (peak or valley) reached by the The 4-20 mA analog output can be scaled to provide process;... -
Page 52: Setting Up The Password (Pass)
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Making Changes to a Password Setting Up the Password (pass) Protected Meter The Password menu is used for programming three levels of security to prevent unauthorized changes to If the meter is password protected, the meter will the programmed parameter settings and to program display the message Locd (Locked) when the Menu the non-resettable totalizer. -
Page 53: Advanced Features Menu
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Advanced Features Menu Advanced Features Menu & Display Messages To simplify the setup process, functions not needed Display Parameter Action/Setting for most applications are located in the Advanced Prog E Programmable Set meter for Features menu. -
Page 54: Noise Filter (Filter)
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Rounding Feature (round) Advanced Features Menu & Display Messages The rounding feature is used to give the user a Display Parameter Action/Setting steadier display with fluctuating signals. Rounding is dI I Digital input 1 Assign digital input 1-4 used in addition to the filter function. -
Page 55: Select Menu (Select)
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Select Menu (SElEct) Multi-Point Linearization (Linear) Meters are set up at the factory for linear function with The Select menu is used to select the input signal 2-point linearization. Up to 32 linearization points can conditioner applied to the input (linear, square root, be selected under the linear function. -
Page 56: Programmable Exponent Linearization (Prog E)
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Programmable Exponent Round Horizontal Tank Linearization (Prog E) Linearization (rHt) This function automatically calculates the volume in a The programmable exponent can be used to linearize round horizontal tank with flat ends. This function is the signal from level transmitters in open-channel flow only used when Total is set to no. -
Page 57: Low-Flow Cutoff (Cutoff)
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Low-Flow Cutoff (CutofF) Analog Output Source The source for generating the 4-20 mA output may be The low-flow cutoff feature allows the meter to be assigned to the rate/process variable, total, grand programmed so that the often-unsteady output from a total, maximum or minimum value reached by the differential pressure transmitter, at low flow rates,... -
Page 58: Programmable Function Keys User Menu (User)
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Programmable Function Keys Function Keys & Digital I/O Available Settings User Menu (user) Display Description The User menu allows the user to assign the front F On 1* Force relay 1 (*through 4) into the on programming buttons function keys F1, F2, and F3, state. -
Page 59: Internal Source Calibration (Ical)
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Internal Source Calibration (ICAL) The meter is factory calibrated prior to shipment for milliamps and volts with calibration equipment that is certified to NIST standards. The use of calibrated signal sources is necessary to calibrate the internal source of the meter. -
Page 60: Meter Operation
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Meter Operation CapTouch Buttons The ProtEX-MAX is equipped with four capacitive When installed, the primary way to operate the meter sensors that operate as through-glass buttons so that it is with the CapTouch through-glass buttons that allow can be programmed and operated without removing the user to perform various operations without the cover (and exposing the electronics) in a hazardous... -
Page 61: Function Keys Operation
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Total Reset Capabilities Function Keys Operation The user may reset the total via a CapTouch button, During operation, the programmable function keys the F4 terminal at the back of the meter, an external operate according to the way they have been programmed in the Advanced Features –... -
Page 62: Maximum/Minimum Readings
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Maximum/Minimum Readings The max & min readings (peak & valley) reached by the process can be displayed either continuously or momentary: Display briefly by assigning to the F1-F3 function keys or to the digital inputs in the User menu. Display continuously by assigning either display to max/min through the Display menu. -
Page 63: Troubleshooting
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Troubleshooting Reset Meter to Factory Defaults When the parameters have been changed in a way Due to the many features and functions of the meter, that is difficult to determine what’s happening, it might it’s possible that the setup of the meter does not be better to start the setup process from the factory agree with what an operator expects to see. -
Page 64: Factory Defaults & User Settings
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Factory Defaults & User Settings Parameter Display Default Setting The following table shows the factory setting for Act 1 Relay 1 action Automatic most parameters. Set 1 Relay 1 set point 1.000 Parameter Display Default Setting... -
Page 65: Troubleshooting Tips
PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Troubleshooting Tips This meter is a highly sophisticated instrument with an extensive list of features and capabilities. If the programming buttons are used to program the meter, it may be a difficult task to keep everything straight. That is why we strongly recommend the use of the free MeterView Pro software for all programming activities. - Page 66 PD8-6200 Explosion-Proof Analog Input Flow Rate/Totalizer Instruction Manual Troubleshooting Tips Symptom Check/Action CapTouch buttons do not respond Check if slide switch on connector board is in DISABLE position, switch to ENABLE. Be sure to hold the initial CapTouch button for 5 seconds to wake it up.
- Page 68 Email: sales@predig.com Place Orders Email: orders@predig.com For the latest version of this manual please visit www.predig.com PRECISION DIGITAL CORPORATION 233 South Street • Hopkinton MA 01748 USA Tel (800) 343-1001 • (508) 655-7300 www.predig.com LIM8-6200_J SFT039 Ver 4.010 & up...
