Casambi AL-60-04-0003 Installation Manual

CBU-PWM4-4
AL-60-04-0003
Bluetooth controllable 4ch PWM dimmer
Warning!
Hazardous voltages. Risk of
electric shock or fire. Only qualified
professionals should make the
! connections. Disconnect the
mains power supply and verify
its absence prior to installation.
USA & Canada
Project:
Reference type:
Item code:
Date:
Notes:

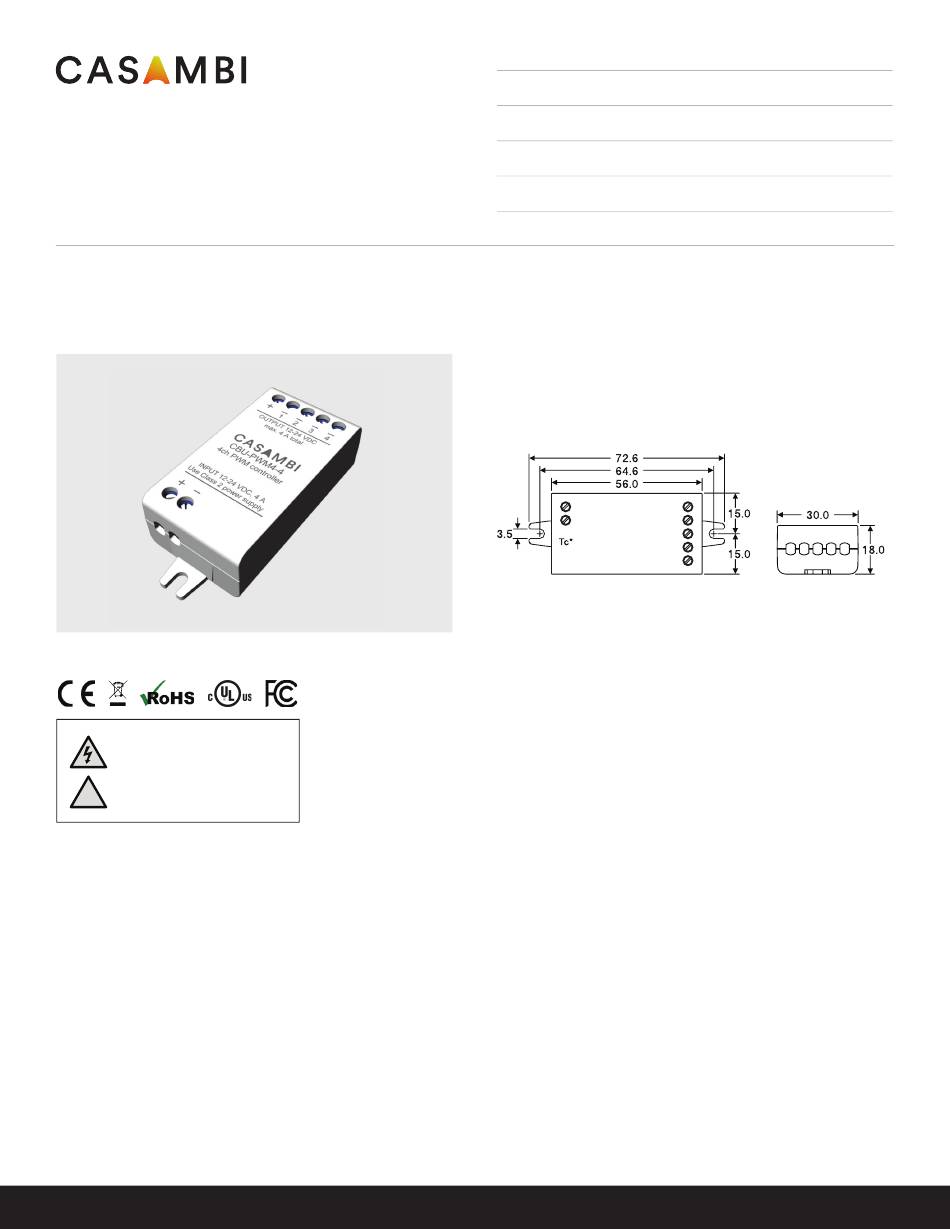

Dimensions
*Tc point is on bottom side
Description
CBU-PWM4-4 is a Bluetooth controllable, Casambi enabled four
channel PWM dimmer for constant voltage LED loads, such as
LED strips and constant voltage LED modules. It is connected
between a 12-24 VDC Class 2 power supply and a constant
voltage LED load.
CBU-PWM4-4 can control up to four channels making it an
ideal partner for RGBW and tunable white (TW) applications.
The maximum combined output current is 4 A which can be
freely divided between 1 -4 channels. CBU-PWM4-4 is protected
against overvoltage, overcurrent and short circuit situations.
CBU-PWM4-4 can be controlled with Casambi app which
can be downloaded free of charge from Apple App Store
and Google Play Store.
Different Casambi enabled products can be used as a simple one
luminaire direct control to a complete and full-featured light control
system where up to 127 units (Classic) or 250 units (Evolution)
form automatically an intelligent mesh network.
Length 2.2 in
Width 1.2 in
Heigth 0.7 in
Dimensions are in mm.
