Casambi CBU-TED-LR Manual

CBU-TED-LR
Bluetooth Long Range controllable dimmer
Warning!
Hazardous voltages. Risk of
electric shock or fire. Only qualified
professionals should make the
connections. Disconnect the
@
mains power supply and verify
its absence prior to installation.
Disposal Instructions
In line with EU Directive 2012/19/EU for waste electrical
and electronic equipment (WEEE), this electrical product
must not be disposed of as unsorted municipal waste.
Please dispose of this product by returning it to the point of
sale or to your local municipal collection point for recycling.
FCC ID: 2ALA3-CBUTEDLR
IC: 22496-CBUTEDLR
UL: UL Listed, 5LE6
Dimensions
40,4
19,7 19,7
36,3
Tc*
18,15
20,2
*Tc point is on bottom side
Description

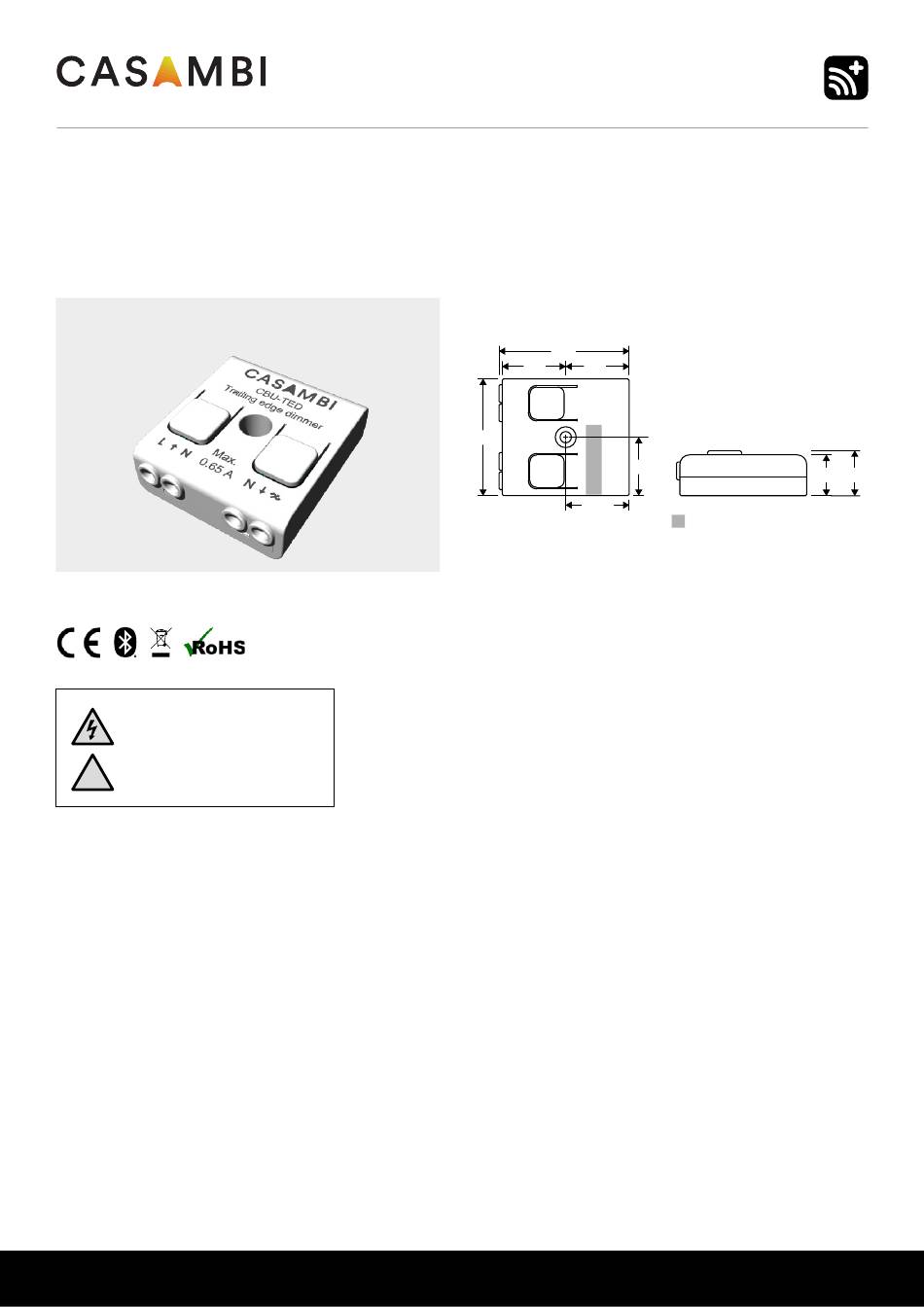

CBU-TED-LR is a Bluetooth controllable Long Range, Casambi
enabled trailing-edge dimmer for incandescent lamps, dimmable
LED lamps and dimmable LED control gear. It can be installed
behind a traditional wall switch, inside a luminaire or into a
ceiling outlet box. Maximum allowed ambient temperature must
be observed.
CBU-TED-LR is able to control up to 100 VA at 230 VAC. It
features an overcurrent and over temperature protection.
CBU-TED-LR can be controlled with Casambi app, available for
iOS and Android devices, as well as with traditional wall switches.
The Casambi app can be downloaded free of charge from Apple
App Store and Google Play Store.
Different Casambi enabled products can be used from a simple
one luminaire direct control to a complete and full featured light
control system where up to 250 units form automatically an
Mounting hole diameter: 3,5 mm
12,7 14,0
Antenna location
Dimensions are in mm.
