Casambi CBU-PWM4 Installation Manual

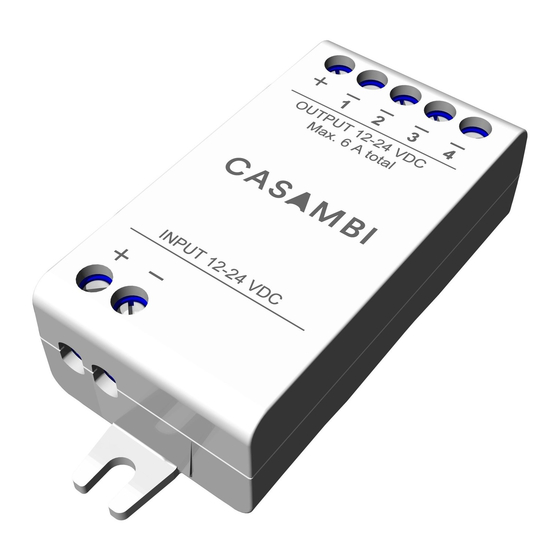

Universal LED Bluetooth Dimmer
Installation Guide for 601115

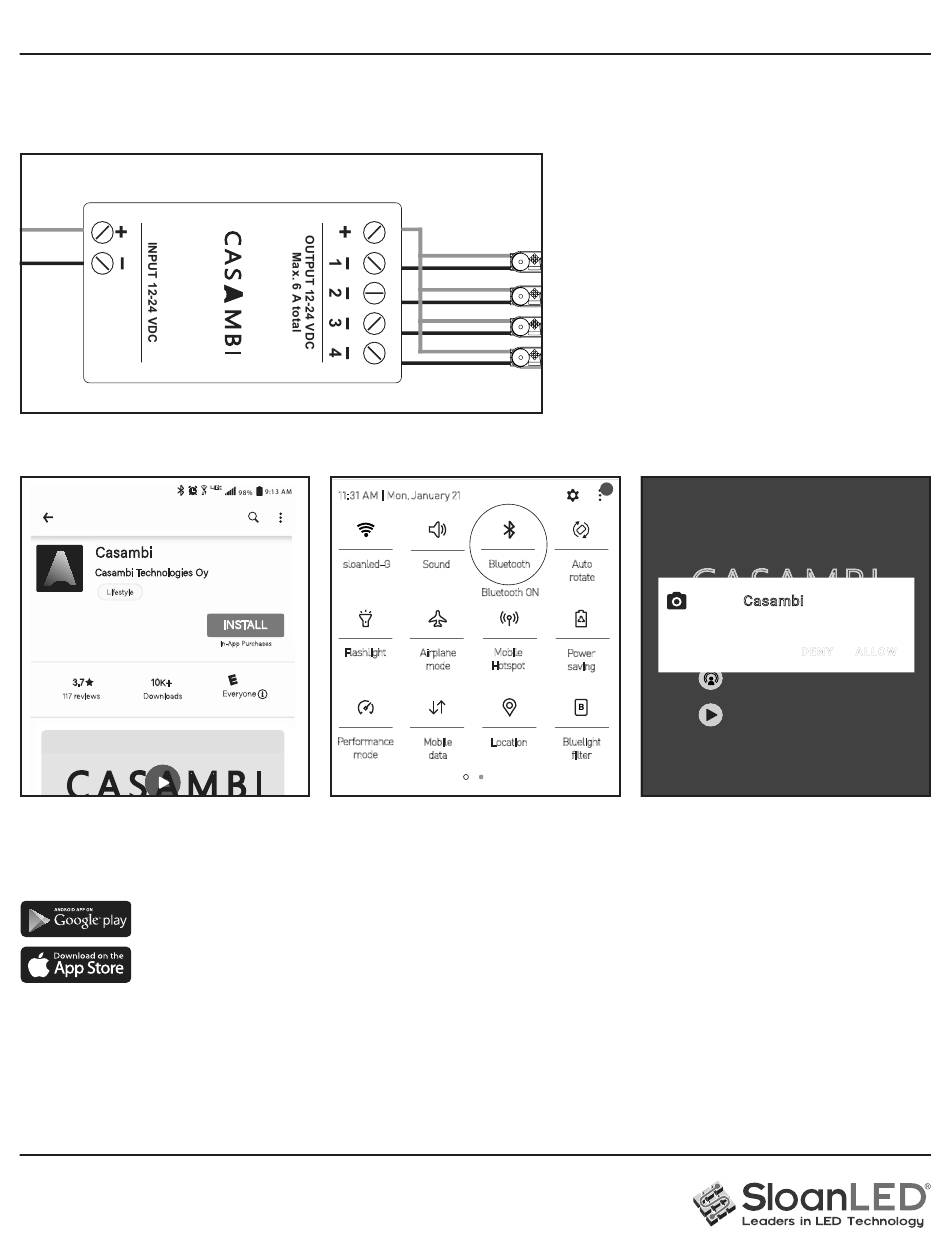

Wiring diagram
12-24 VDC Class 2
power supply
New Installations
C A S A M B I
1. App Installation: Ensure LED lighting system
is installed according to Sloan Installation
guide. Go to Google Play Store or Apple App
Store. Search for "Casambi" app and install.
Compatible devices:
Android 4.4 or later devices produced
after 2013 with full BT 4.0 support
iPhone 4S or later
iPad 3 or later
iPod Touch 5th gen or later
+: Common (+)
1: Channel 1 (-)
2: Channel 2 (-)
3: Channel 3 (-)
4: Channel 4 (-)
11:31 AM | Mon, January 21
Bluetooth
sloanled-G Sound
Bluetooth ON
Flashlight Airplane Mobile
mode Hotspot
Performance Mobile
Location
mode
data
2. Turn on Bluetooth: Ensure Bluetooth
connection is enabled in phone settings.
1. Installation: Connect a Class 2 power supply with 12/24 VDC
output voltage to input side of Universal LED Bluetooth Dimmer.
IMPORTANT: Power supply should be constant voltage type.
2. Check polarity of wires connected to Universal LED
Bluetooth Dimmer
(Red = positive, Black = negative).
3. Positive wire of LED light connects to Universal LED
Bluetooth Dimmer shared positive output slot (+).
IMPORTANT: Shared positive output means all positive
wire of LED light connects to this slot.
4. Negative wire of LED light connected to each of four channels
has its own negative slot. IMPORTANT: Total current from
LED Dimming Module should be less than 4 A.
N
Auto
CASAMBI
rotate
Allow
pictures and record video?
1 of 3
Power
saving
Nearby devices
Show demo
Bluelight
filter
3. Accept permissions: After installing
Casambi app, open and allow access to your
phone by tapping "allow" on screen.
to take
Casambi
DENY ALLOW
?
PAGE 1 OF 4
