CBU-TED-LR
Bluetooth-controlled trailing edge dimmer.
Warning!
Hazardous voltages. Risk of electric shock or fire. Only
qualified professionals should make the connections.
@
Disconnect the mains power supply and verify its
absence prior to installation.
DISPOSAL INSTRUCTIONS
This electrical product must not be disposed of as unsorted
municipal waste. Please dispose of this product correctly:
Regulations governing hazardous waste identification,
classification, generation, management and disposal,
found in title 40 CFR parts 260 through 273, should be
observed.
www.casambi.com
Information in this document is subject to change.
CBU-TED-LR US V1.1 EN
PRODUCT TECHNICAL SPECIFICATIONS
Project:
Reference Type:
Item Code:
Date:
Notes:

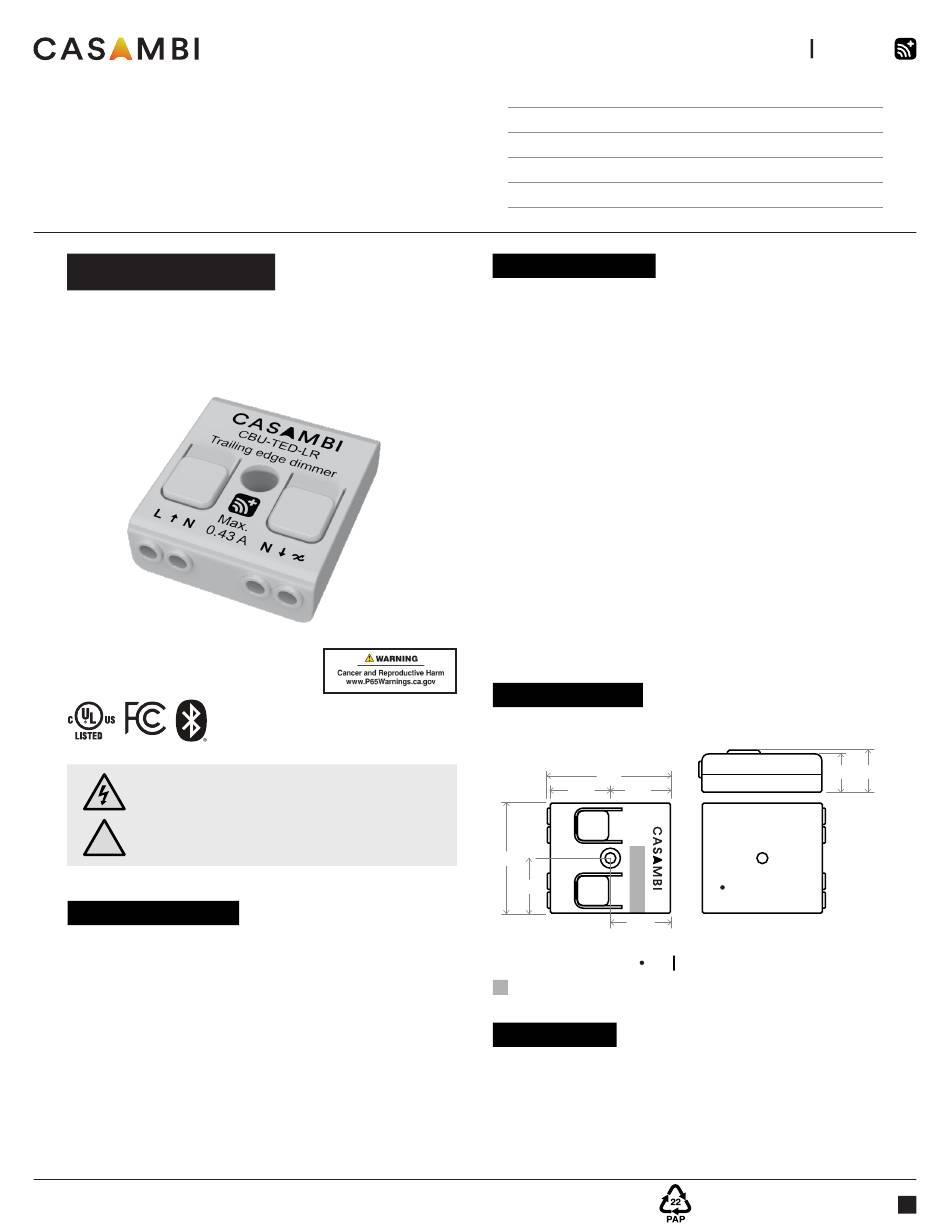

PRODUCT DESCRIPTION
CBU-TED-LR
Casambi-enabled, trailing-edge dimmer for incandescent
lamps, dimmable LED lamps and dimmable LED control
gear. With Casambi's CBU-TED-LR compatible dimmable
load can be easily converted to become a part of a
Casambi mesh radio network.
CBU-TED-LR can control up to 50 W at 120 VAC. It features
an overcurrent and over temperature protection.
CBU-TED-LR can be controlled with the Casambi App,
available for iOS and Android devices, as well as with
traditional wall switches. The Casambi App can be
downloaded free of charge from the Apple App Store and
Google Play Store.
Different Casambi-enabled products can be used from
a simple one-luminaire direct control setup to a complete
and full-featured lighting control system, in which up to
250 units automatically form an intelligent mesh network.
DIMENSIONS (INCH)
1,43"
0,71"
t
*
point is on bottom side
c
Antenna location
CERTIFICATIONS
FCC ID: 2ALA3-CBUTEDLR
IC: 22496-CBUTEDLR
UL: 5LE6 / E494741
© Copyright Casambi Technologies Oy 2023
is
a
Bluetooth-controlled,
1,59"
0,78"
0,78"
Casambi Technologies
0,80"
Mounting hole diameter 3,5mm
EN
long-range,
0,50" 0,55"
1
Advertisement
Table of Contents
Related Manuals for Casambi CBU-TED-LR
Summary of Contents for Casambi CBU-TED-LR
- Page 1 Casambi mesh radio network. CBU-TED-LR can control up to 50 W at 120 VAC. It features an overcurrent and over temperature protection. CBU-TED-LR can be controlled with the Casambi App, available for iOS and Android devices, as well as with traditional wall switches.
- Page 2 Notes: TECHNICAL DATA RANGE Input The range between two CBU-TED-LR units or between a CBU-TED-LR and a smartphone can vary a lot depending • Voltage range: 120 VAC on the design of a product in which the antennas are • Frequency: 60 Hz housed and on the environment in which they operate.
- Page 3 There are different radio modes that can be selected when Make sure that the mains voltage is switched off before creating a network in the Casambi App: ‘Balanced’, ‘Better making any connections. Use 0,5–1,5 mm² solid conductor Performance’ and now ‘Long Range’ options. The CBU- electrical wires.
- Page 4 Dimming quality depends solely on the load electronics. Do not mix different types of bulbs or loads. Some luminaires may flicker at low dimming levels. WARNING! • Using CBU-TED-LR with maximum load will make it hot. • Make sure to place the product in well-ventilated space and away from any flammable material.
- Page 5 WIRING DIAGRAMS Each CBU product can operate in various roles according to the chosen profile. It is possible to change the profile of an unpaired device using the Casambi App. Above are listed the fixture profile options for the CBU-TED-LR. SWITCH...
