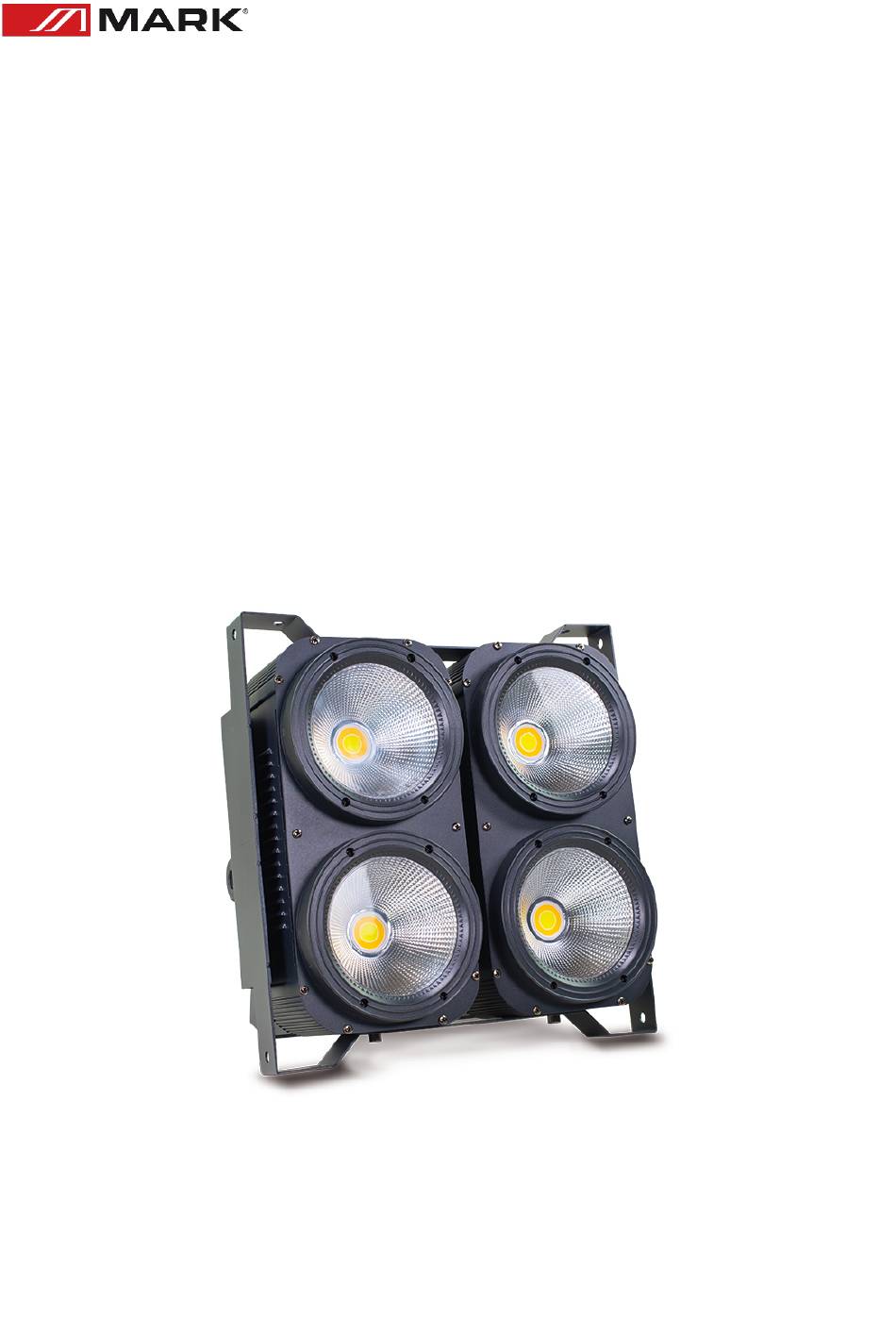

  • Page 1 BLINDER 400 User Manual – Version 1.0...

  • Page 2: Safety Instructions

    8. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 9. Only use attachments/accessories specified by MARK. 10. Unplug this device during lightning storms or when unused for long periods of time.
  • Page 3 OVERVIEW BLINDER 400 is a blinder effect that includes 4 white + warm white colour COB LEDs up to 100W. These brilliant LEDs allow to obtain a high light power, very adequate in live spectacles, touring, etc. The configuration interface has a display with all information and buttons to navigate through menus, selecting parameters such as: strobe speed operating in auto mode, internal programs or audio sensitivity.

  • Page 4: Installation

    Ensure that the unit does not come into contact with water or any other liquid. BLINDER 400 can be placed in a stable surface or stand but the common operating mode is rigging it in a truss system. Please, check and follow the next recommendations for a safe use of this device: The truss system must be built in a way that it can hold 10 times the weight of all rigging elements for 1 hour without any harming deformation.

  • Page 5: Advanced Use

    DMX input of the signal, this way it is possible to send the signal to all the devices in the chain. Master/Slave operation. BLINDER 400 allows to link up to 16 fixtures together and operate without controller using this mode. ADVANCED USE CONTROL PANEL BLINDER 400 can be configured in different ways thanks to its panel and selection buttons.
  • Page 6 CL03 WARM WHITE LED 3 CL04 WARM WHITE LED 4 CL05 COLD WHITE LED 1 CL06 COLD WHITE LED 2 CL07 COLD WHITE LED 3 CL08 COLD WHITE LED 4 CL09 WHITE LED 1 CL10 WHITE LED 2 CL11 WHITE LED 3 CL12 WHITE LED 4 CL13...
  • Page 7 CL50 COLD WHITE LED 1 + WARM WHITE LED 2, CL51 COLD WHITE LED 2 + WARM WHITE LED 4 CL52 WARM WHITE LED 1 + COLD WHITE LED 3 CL53 WARM WHITE LED 2 + COLD WHITE LED 4 CL54 COLD WHITE LED 1 + WARM WHITE LED 3 CL55...

  • Page 8: Dmx Control Modes

    CP01-99 PULSE MACRO (S>F) SU01 SOUND MODE 1 SUXX SU02 SOUND MODE 2 DMX CONTROL MODES The following table shows the DMX channel functions: 12CH A FUNCTION VALUE DESCRIPTION DIMMER 0-255 DIMMER W WHITE L1 0-255 WARM WHITE LED 1 DIMMER C WHITE L1 0-255 COLD WHITE LED 1 DIMMER...
  • Page 9 MACRO SPEED DESCRIPTION 0-50 0-255 NO FUNCTION 51-55 0-255 WARM WHITE LED 1 56-60 0-255 WARM WHITE LED 2 61-64 0-255 WARM WHITE LED 3 65-69 0-255 WARM WHITE LED 4 70-73 0-255 COLD WHITE LED 1 74-78 0-255 COLD WHITE LED 2 79-82 0-255 COLD WHITE LED 3...

  • Page 10: Indicaciones De Seguridad

    8. Proteja el cable de alimentación para no ser pisado o manipulado, particularmente en los conectores (mural y de entrada a la unidad). 9. Utilice únicamente accesorios especificados por MARK. 10. Desconecte el dispositivo si no va a ser utilizado durante largos periodos de tiempo.

  • Page 11: Vista General

    VISTA GENERAL BLINDER 400 es un efecto tipo cegadora que incluye 4 LEDs COB de color blanco + blanco cálido de hasta 100W cada uno. Estos brillantes LEDs permiten obtener una gran potencia lumínica, muy adecuada en espectáculos en vivo, aplicaciones de touring, etc.

  • Page 12: Instalación

    BLINDER 400 se puede colocar en una superficie plana y estable o en un soporte, pero el modo de funcionamiento común es el rigging en un sistema truss. Por favor, compruebe y siga las siguientes...

  • Page 13: Panel De Control

    Modo Master/Slave. BLINDER 400 permite unir hasta 16 unidades en la misma cadena y operar sin controlador utilizando este modo. USO AVANZADO PANEL DE CONTROL BLINDER 400 permite ser configurado de diferentes maneras, gracias a su panel y botones de selección.
  • Page 14 CL02 LED 2 BLANCO CÁLIDO CL03 LED 3 BLANCO CÁLIDO CL04 LED 4 BLANCO CÁLIDO CL05 LED 1 BLANCO FRÍO CL06 LED 2 BLANCO FRÍO CL07 LED 3 BLANCO FRÍO CL08 LED 4 BLANCO FRÍO CL09 LED 1 BLANCO CL10 LED 2 BLANCO CL11 LED 3 BLANCO...
  • Page 15 CL48 LED 1 BLANCO CÁLIDO + LED 2 BLANCO FRÍO CL49 LED 3 BLANCO CÁLIDO + LED 4 BLANCO FRÍO CL50 LED 1 BLANCO FRÍO + LED 2 BLANCO CÁLIDO CL51 LED 2 BLANCO FRÍO + LED 4 BLANCO CÁLIDO CL52 LED 1 BLANCO CÁLIDO + LED 3 BLANCO FRÍO CL53...
  • Page 16 CC01-99 CAMBIO MACRO POR SALTO (S>F) dE01-99 CAMBIO MACRO GRADUAL (S>F) CP01-99 CAMBIO MACRO PULSOS (S>F) SU01 MODO SONIDO 1 SUXX SU02 MODO SONIDO 2 MODOS DE CONTROL DMX La siguiente tabla muestra las funciones de los canales DMX: 12CH A FUNCIÓN VALOR DESCRIPCIÓN...
