Revision Number: 01

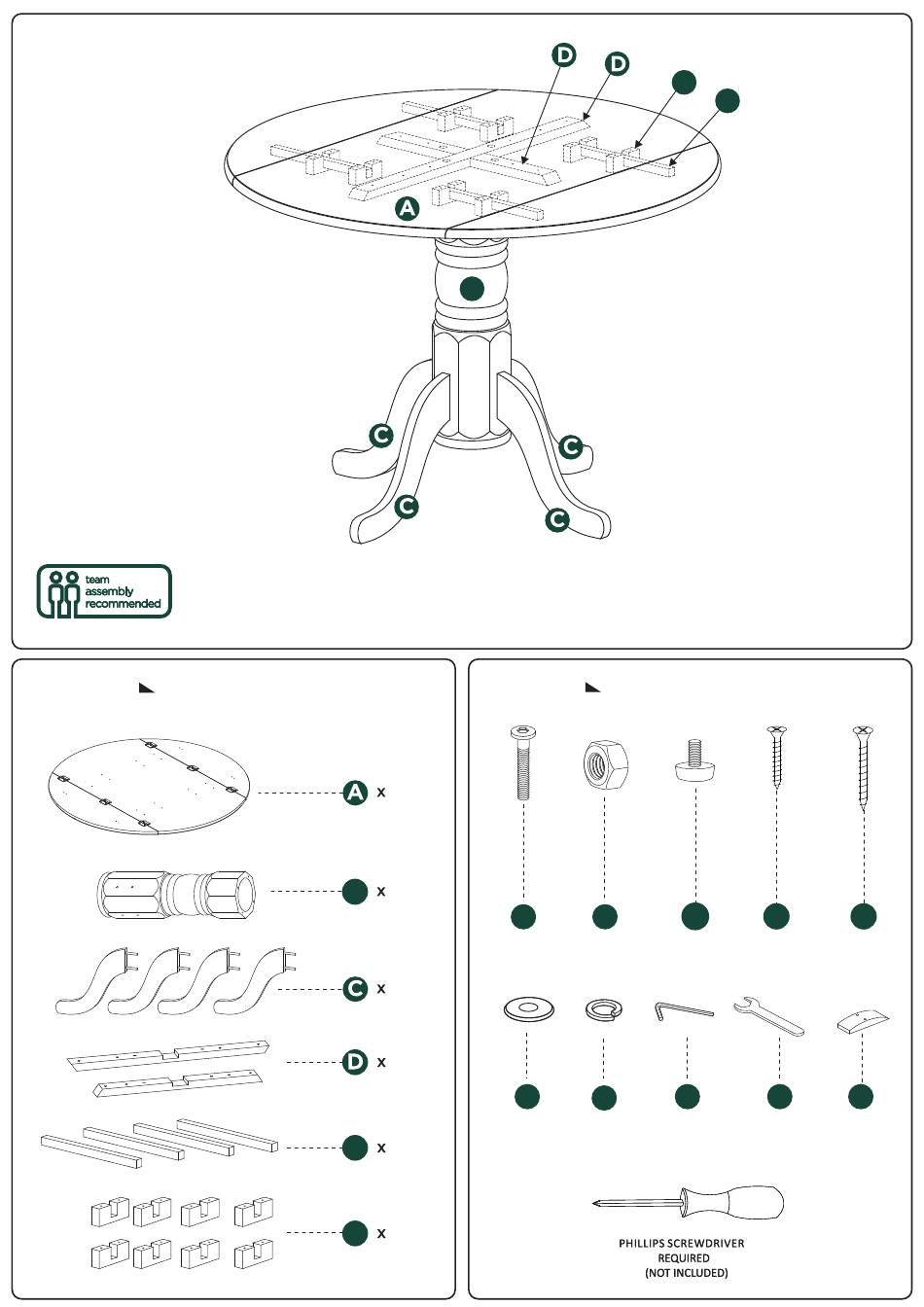

Components
B
E1670168, E1670175
E1670189 E1670196
Hardware
1 pc
B
1 PC
J
M6X40
4 pcs
4 pcs
1 set
O
M8
E
4 pcs
8 pcs
F
8 pcs
F
T-DDL TABLE
E1670210, E1670217
,
E1670231 E1670238
L
K
5/16"
8 pcs
4 pcs
Q
P
M4
M8
8 pcs
1 pc
E
,
M
N
M3.5X16
M4X32
8 pcs
26 pcs
R
S
1 pc
4 pcs
Advertisement
Related Manuals for Rize Home UDine E1670168
Summary of Contents for Rize Home UDine E1670168
- Page 1 T-DDL TABLE E1670168, E1670175 E1670210, E1670217 E1670189 E1670196 E1670231 E1670238 Revision Number: 01 Components Hardware 1 pc 1 PC M6X40 5/16" M3.5X16 M4X32 4 pcs 8 pcs 4 pcs 8 pcs 26 pcs 4 pcs 1 set 4 pcs 8 pcs 8 pcs 1 pc 1 pc...
- Page 2 CAUTION: When placing furniture on non-carpeted flooring, we recommend the use of floor protec on such as an area rug or furniture pads. Area rugs and padding not included with purchase.
- Page 3 Connect the legs “C” to pedestal “B” through the holes. A ach “P”and “O” washers and “K” nuts to the bolts in the legs “C” from inside of pedestal to a ach. 4 pcs 8 pcs A ach adjustable levelers “ L” to bo om of legs “C”. Cross the supports “D”...
- Page 4 Place supports “E”, cleat “F” and “S” to underside of top panel as show below. Line up the holes to pilot holes, Use 8 pcs 16 pcs M3.5X16 M4X32 screwdriver to install“N” screws from cleats “F” to top “A”. And install “M” screws from cleats “S” to top “A”. Pilot hole 10 pcs M4X32...
- Page 5 Adjust the levelers in the bo om of legs to make the table steady. You’re all finished! See next page to fold drop leaf panels...
- Page 6 Folding Drop Leaf Panels Instruc on Release the supports “E” to make leaf panel folding freely.
