IAG 4PC Interior LED Dome Light Kit V2 for 2021+

Ford Bronco 2-Door Hardtop and 4-Door Soft Top

Need help?

Do you have a question about the IAG-ACC-F1060 and is the answer not in the manual?

Questions and answers

Summary of Contents for IAG IAG-ACC-F1060

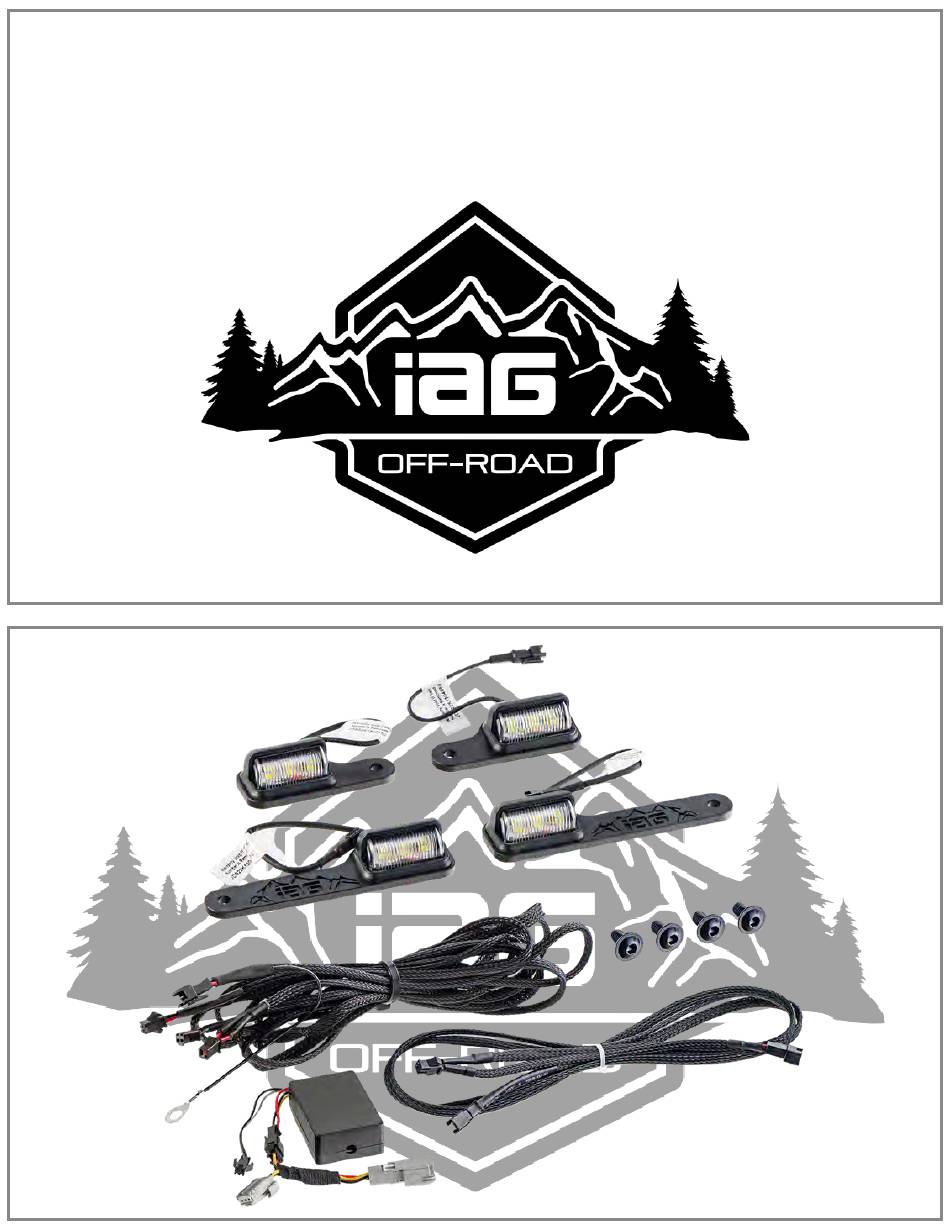

Page 1 IAG 4PC Interior LED Dome Light Kit V2 for 2021+ Ford Bronco 2-Door Hardtop and 4-Door Soft Top...
Page 2 IAG-ACC-F1060 IAG 4PC Interior LED Dome Light Kit for 2021+ Ford Bronco Congratulations on the purchase of your IAG 4PC LED Dome Light Kit and thank you for choosing IAG Off Road! These instructions are intended for users with basic mechanical skills. Professional installation is not required.
Page 3 Step 1 Disconnect ground terminal from the battery and place a rag between. Step 1 pt.2 Step 2 Remove corner panels on both driver and passenger sides.
Page 4 Step 2 pt.2 Step 3 Remove the two 8mm bolts securing the front trim panel and remove the panel. Step 3 pt.2...
Page 5 Step 4 Remove the three 8mm bolts on the rear trim panel and remove. Repeat steps 3 and 4 for passenger side. Step 4 pt.2 Step 4 pt.3...
Page 6 Step 5 Remove driver side A-pillar trim panel by pulling down towards the rear. Step 5 pt.2 Step 6 Attach the ground cable to the bolt on the driver side airbag support.
Page 7 Step 6 pt.2 Step 6 pt.3 Step 7 Route the longer side of the harness behind the airbag.
Page 8 Step 8 Route the light connection up behind the airbag past airbag securing bolt. Step 9 Route the remainder of the harness to the rear and behind the airbag. Step 10 Route the passenger harness between the metal airbag support bracket.
Page 9 Step 11 Plug in the two connectors and push connector behind the airbag. Step 11 pt.2 Step 12 Pull down on the overhead trim panel dome lights slightly.
Page 10 Step 13 Route the part of the harness with the other two light connectors behind the panel. Step 13 pt.2 Step 13 pt.3...
Page 11 Step 13 pt.4 Step 14 Remove passenger side A- pillar trim panel by pulling down towards the rear. Step 15 Route the wire between the airbag bracket and behind the airbag.
Page 12 Step 16 Route the harness behind the airbag as done on the driver side. Reference step 10. Step 16 pt.2 Step 17 Route light connections up and behind airbag as done on the driver side.
Page 13 Step 18 Reinstall both of the A-pillar trim panels. Step 18 pt.2 Step 19 Reinstall the upper trim panel by pushing upwards.
Page 14 Step 20 On the passenger side route the wire behind the airbag and connect it to the light harness from step 17. Step 20 pt.2 Step 21 Leave the dome light connector above the airbag.
Page 15 Step 22 Route harness behind the airbag and then up at the back of the airbag. Step 23 Route wire to the factory dome light behind the trim panel by pulling it. Step 24 Unclip the factory dome light harness.
Page 16 Step 24 pt.2 Step 25 Install the light module. Step 25 pt.2...
Page 17 Step 25 pt.3 Step 26 Remove the tape backing. Step 26 pt.2...
Page 18 Step 27 Mount the module to the roll bar above the factory dome light. Step 28 Install the module connector to the factory dome light from step Step 29 Plug in the driver side rear dome light.
Page 19 Step 30 Reinstall the rear trim panel and loosely install one factory bolt to the dome light. Step 30 pt.2 Step 31 Install the remaining trim panel bolts and tighten.
Page 20 Step 32 Make sure the light is level and tighten the dome light bolt. Step 33 Plug in the driver side front dome light. Step 34 Ensure the wire stays below the bolt hole when installing front trim panel.
Page 21 Step 35 Install the front dome light with the factory trim panel bolt. Step 36 Loosely install the other factory trim panel bolt. Step 37 Tighten the light bolt along with the trim panel bolt.
Page 22 Step 38 Reinstall the top trim panel from step 2 by pushing up. Step 39 Repeat steps 30-40 for the passenger side dome light installation. Step 40 Reinstall ground terminal to the battery.
Page 23 Step 41 Turn the dome lights on and off three times to program the module. If you have any questions about the product or install please reach out to support@iagoffroad.com or call 410-840-3555...
Page 24 Step 1 Add a little bit of body text Step 2 Add a little bit of body text Step 3 Add a little bit of body text...
