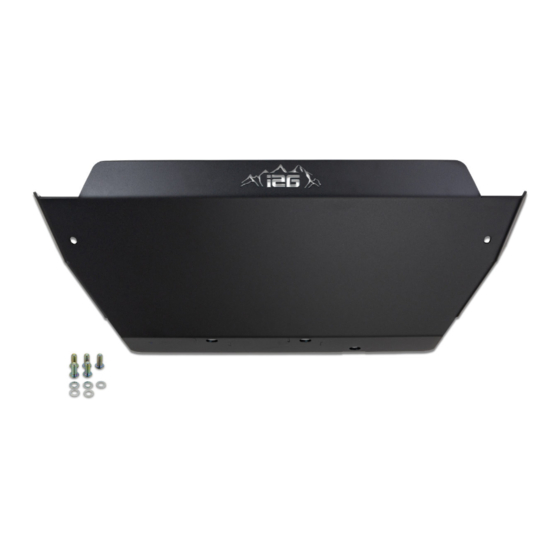

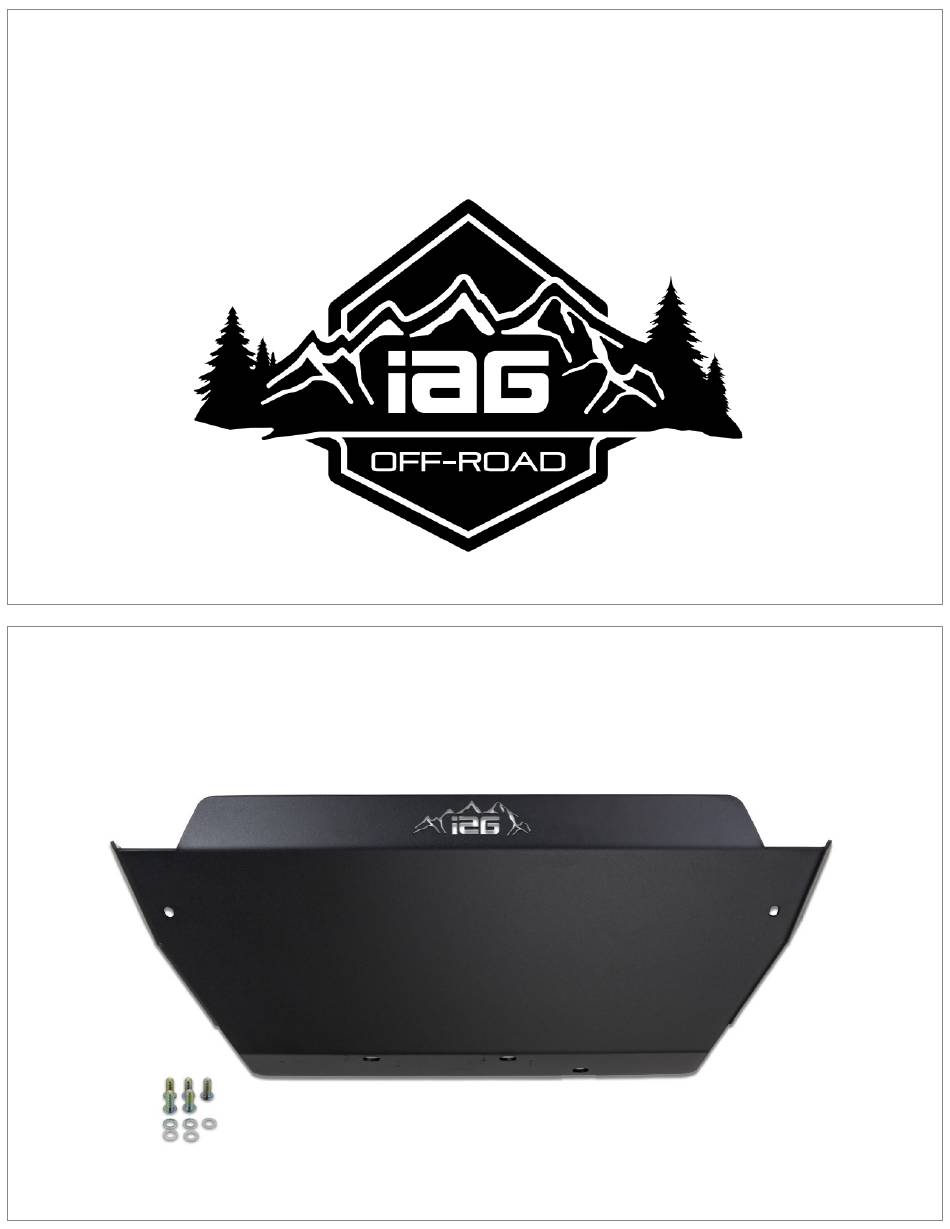

- Page 1 IAG Rock Armor Front Skid Plate For 21+ Ford Bronco...
- Page 2 IAG-BDY-F2300 Rock Armor Front Skid Plate for 21+ Ford Bronco Congratulations on the purchase of your IAG Rock Armor Skid Plate, and thank you for choosing IAG Off Road! These instructions are intended for users with basic mechanical skills. Professional installation is not required.
- Page 3 Step 1 Remove the factory skid plate by removing the two front 15mm bolts and loosen the two rear 15mm bolts. Step 2 Remove the skid plate by sliding it off the back two 15mm bolts. Step 3 Then remove the two rear 15mm bolts.
- Page 4 Step 4 Install one 6mm allen bolt with washer for the rear of the skid plate to slide onto. Note: Do not fully tighten the 6mm bolt. Step 5 Slide the new skid plate onto the rear 6mm allen bolt. Step 6 Install two 6mm allen bolts with washers at the front of...
- Page 5 Step 7 Install one 6mm allen bolt with washer at the rear of the skid plate. Step 8 Tighten all of the 6mm allen bolts. If you have any questions about the product or install please reach out to support@iagoffroad.com...
