modway EEI-209 Manual

A. Backrest-1PC G. Cator-5PCS
B. Seating-1PC H. Screw-4PCS
C. Arms-2PCS I. Screw & Washer-4PCS
D. Mechanism-1PC J. Screw-4PCS
E. Base-1PC K. Allen key-1PC
F. Pneumatic Cyinder-1PC L. Cap Cover-4PCS
KEEP THIS PAGE FOR FUTURE REFERENCE.
Clutch Office Chair EEI-209

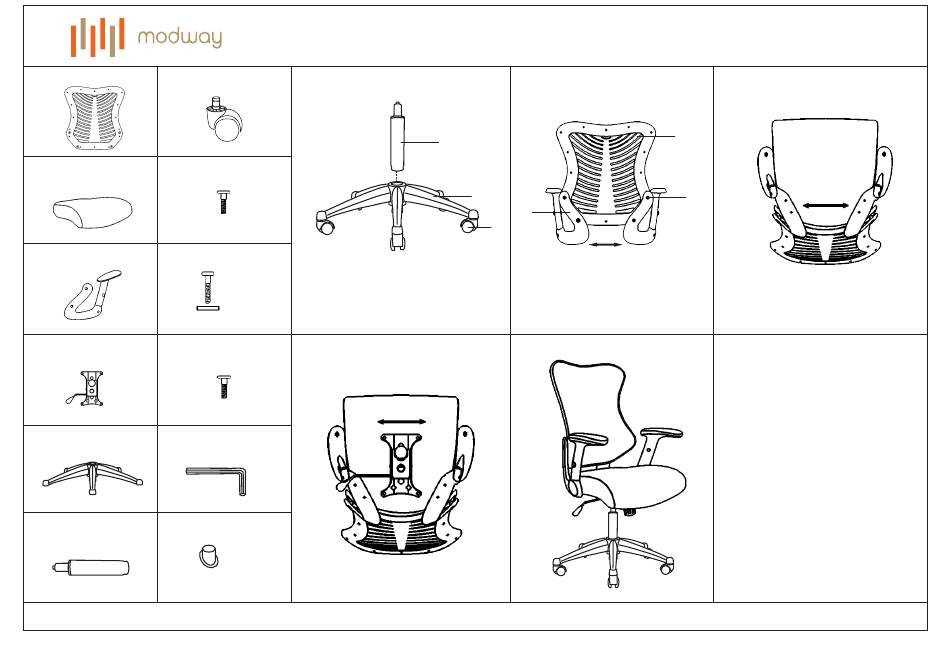

Step 1
M6*20
Set the base(E) upside down,
insert castors(G). Flip the base(E)
M6*35
upright, insert the pneumatic cylinder(F)
Ø21*1.5
into the center hole on the base(E)
Step 4
M6*20
Fix (J) to (D) and (B), lock tightly.
Step 2
F
E
C
G
Attach(H) fix to (A) with ( ), lock
them tightly, cover the screws' holes
with (L).
Step 5
J
Step 3
A
L
H
C
Take (A) and (C),attach (B) to ( ) with
(I), lock them tightly.
