EEI –2046
ROOM DIVIDER

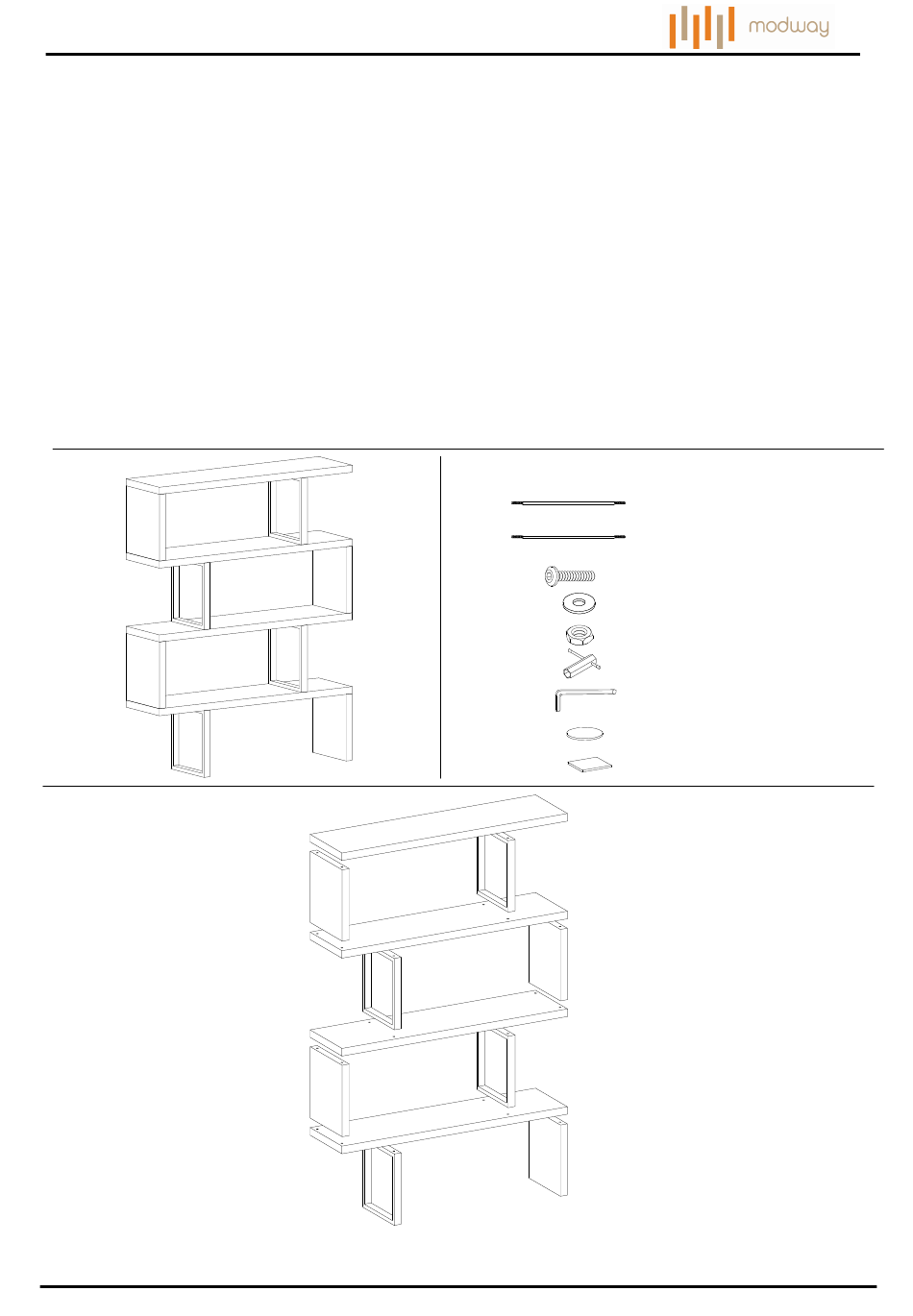

Thank you for purchasing the MODWAY ROOM DIVIDER！ ！ ！ ！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step
instructions.
2.Owing to the size and weight of the room divider, we recommend that it is assembled by two adults, on
a carpeted or padded area, in the room that it is intended for. Approximate assembly time: 45 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or instructions until you have checked all the components and
hardware and the furniture is fully assembled.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all pieces out of reach of small children.
Component:
1
Top Panel
x1
4
Customer Service 908-368-1025︱ ︱ ︱ ︱ www.modwayfurniture.com
3
5
3
5
2
Bottom Divide Panel
x1
Hardware:
A
B
C
D
E
F
G
H
J
1
5
2
3
2
5
2
4
Shelf
x3
5
Divide Frame
Long Bolt M8x435mm
Short Bolt M8x395mm
Bolt M8x35mm
Flat Washer
Nut M8x8mm
Wrench
Allen Wrench
Cover
Square Cover
3
Side Panel
x3
x4
Page 1 of 2
x6
x2
x14
x24
x8
x1
x1
x12
x4
Advertisement
Table of Contents
Related Manuals for modway EEI –2046
Summary of Contents for modway EEI –2046
- Page 1 EEI –2046 ROOM DIVIDER Thank you for purchasing the MODWAY ROOM DIVIDER！ ！ ！ ！ Before you start, here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step by step instructions.
- Page 2 EEI –2046 ROOM DIVIDER STEP 1: Please put the Top Panel (1) upside down on a carpeted or padded surface. Attach one piece of Divide Frame (5) into the bottom of Top Panel (1) by using 2 piece of Bolt (C) and 2 pieces of Flat Washers (D) as shown.
- Page 3 EEI –2046 ROOM DIVIDER STEP 3: Attach one piece of Divide Frame (5) into the bottom of Shelf (2) by using 2 piece of Bolt (C) and 2 pieces of 2 pieces of Flat Washers (D) as shown. Use Allen Wrench (G) to tighten the Bolts (C) clockwise until secure. Insert 2 pieces of Long Bolt (A) into the bottom of Top Panel (A) by hand as shown.
- Page 4 EEI –2046 ROOM DIVIDER STEP 5: Repeat the same steps as Step 3 and Step 4 for one piece of Side Panel (3), one piece of Divide Frame (5) and one piece of Shelf (2) as shown. Hardware & Tool required STEP 6: Repeat the same step as Step 3 for one pieces of Divide Frame (5) and 2 piece of Short Bolt (B) as shown.
- Page 5 EEI –2046 ROOM DIVIDER STEP 7: Place the Bottom Panel (4) to the bottom of Shelf (2) through the Short Bolt (B) as shown. Attach them by using 2 pieces of Flat Washer (6) and 2 pieces of Nut (E). Use Wrench (F) to tighten the Nuts (E) clockwise until secure as shown.
